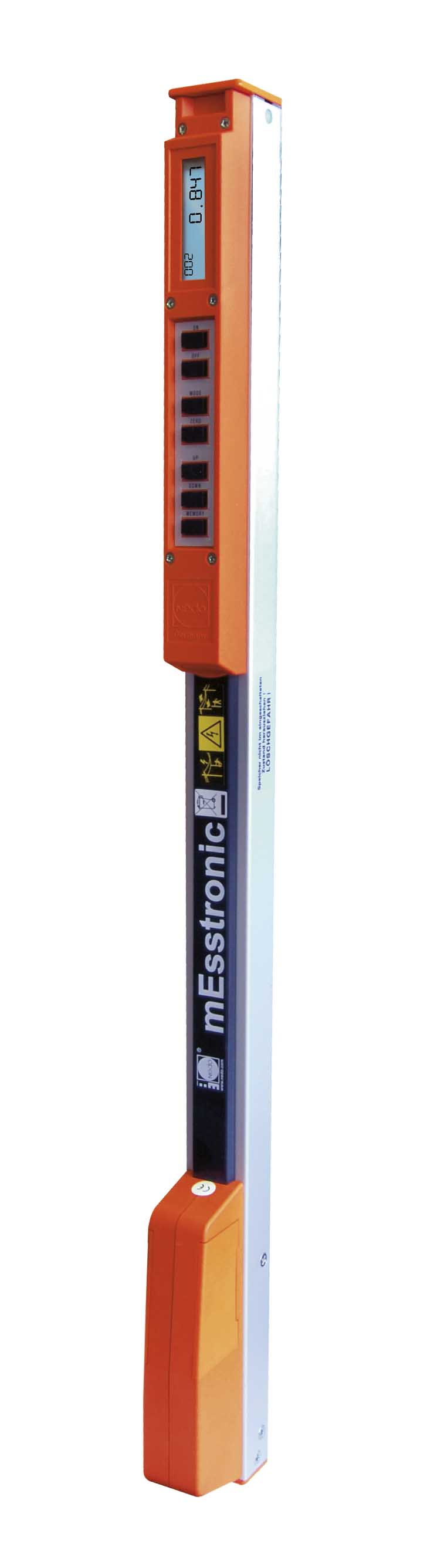

Nedo mEsstronic 0.1 (with 0.1 mm resolution)
The Nedo mEsstronic 0.1 is an electronic precision tool for taking length measurements. Due to the high accuracy of the measurements and the resolution of 0.1 mm, the measuring stick is primarily used for measuring glazing beads.
Special features
- The measurements are displayed digitally on the clear display.
- There is a choice of two measuring ranges: 0.15 m to 2.35 m and 0.803 m to 3.00 m.
- The two measuring ranges can be switched between at any time by pressing a button.
- Using the zero button, the displayed value can be set as the zero point to perform relative measurements.
- The mEsstronic 0.1 features an interface to store measurements in a memory module or copy them to a PC or the control unit of a glazing bead saw.
Technical data
- Measuring ranges: 0.15 m to 2.35 m 0.803 m to 3.00 m (switchable by push of button)
- Accuracy: 0.1 mm
- Tolerance: ± 0.3 mm
- Power supply: 4 x 1.5 V typical (AA) batteries or 4 x 1.2 V rechargeable batteries
- Operating time: approx. 150 hours when using high-quality rechargeable batteries
- Automatic shutdown after a measurement pause of 3 minutes
- Zero function: setting reference points for relative measurements
- Connection for memory module, Bluetooth module or RS-232 module (optional)
Standard included
- In box
- Manual
