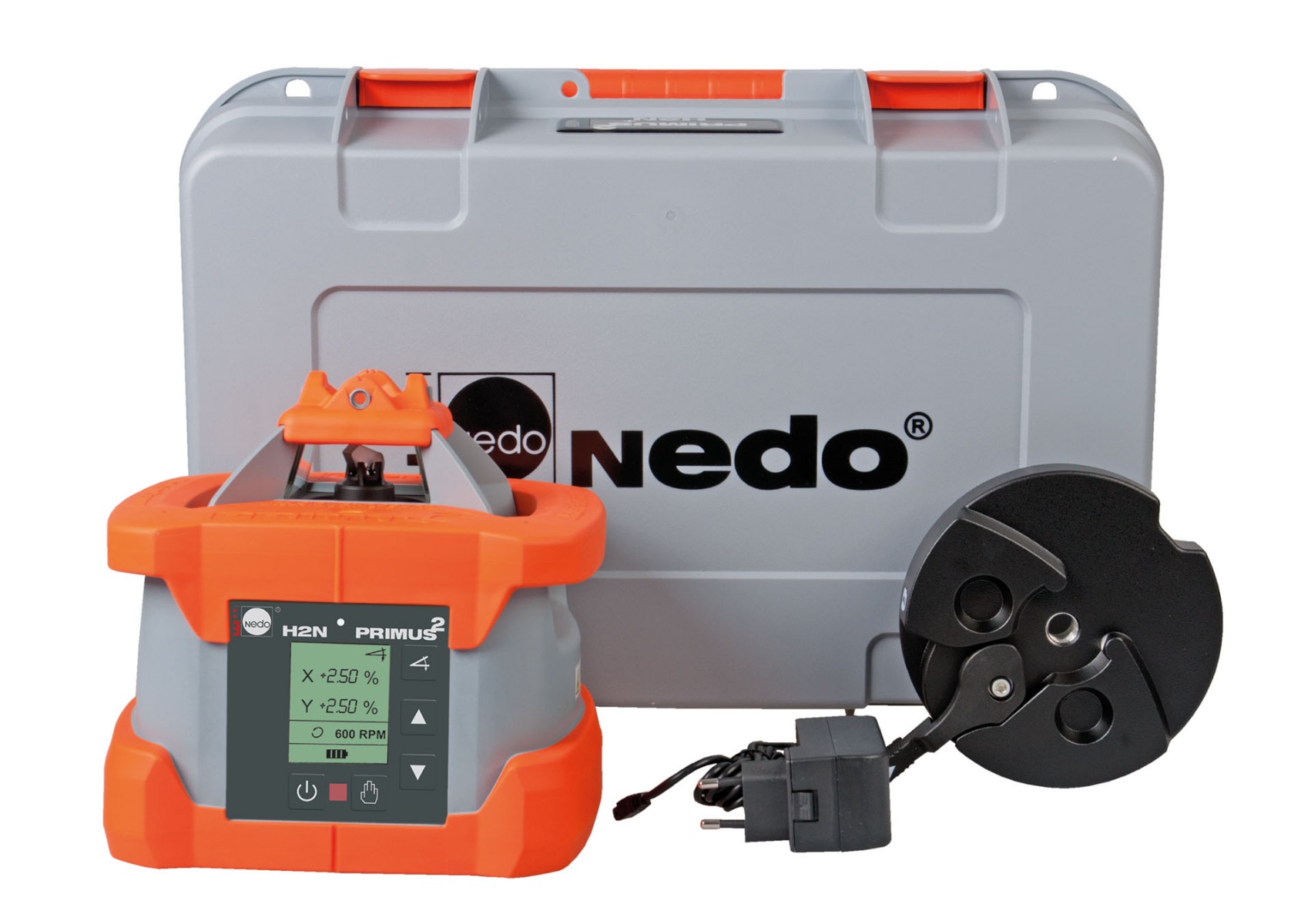

Nedo Primus2 H2N Slope Laser
Special features
- Fully automatic dual-slope laser
- Robust, motorized leveling
- Slope in one or two axes with convenient % input for the X and Y axes
- Entered slope values are saved upon power off
- Automatic height monitoring stops the laser in case of strong vibrations.
- Height errors are thereby prevented.
- Large, clear display for showing slope, rotation speed, battery charge status, etc.
- High-power laser beam clearly visible, for uncomplicated work at short distances
- Rotor protection made of shatterproof glass
- Extremely accurate under all operating conditions
Technical data
- Self-leveling range ± 5° motorized with automatic monitoring
- Tolerance ± 0.5 mm/10 m
- Accuracy of tilt angle function ± 0.1% PRIMUS2 H2N
- Two-axis tilt function ± 10%, direct input
- Laser laser class 3R, 635 nm, < 5 mW
- Rotation speed 600 rpm
- Weight 4.0 kg
- Dimensions 209.5 mm x 214 mm x 197.6 mm
- Operating temperature -20°C to + 50°C
- Range Ø approx. 700 m with receiver
- Remote control range approx. 150 m
- IP rating IP 66
- Threaded connection 5/8''
Supplied as standard
- Rotating laser Primus2 H2N
- Quick-fix
- Batteries and charger
- Rugged case
- Dutch manual
