Nedo X-Liner 360 Multiline Laser green
Self-leveling multiline laser for leveling, setting out, plumbing, and transferring right angles in interior construction. The green laser lines are highly visible. The continuous, horizontal 360° laser line makes setting out very easy. In the compact housing, both vertical laser planes are positioned exactly at right angles. Their cutting axis, the pivot point of the tripod, and the plumb point are the same. This makes it particularly easy to position the laser via a known point and transfer right angles. The fine adjustment enables fast and precise alignment of the axes.
Special features
- Self-leveling multi-line laser for leveling, setting out, plumbing, and transferring right angles
- Green laser lines for excellent visibility
- Horizontal 360° laser line
- Laser cross on each of two walls
- Laser cross on the ceiling and plumb point on the floor
- The vertical laser lines extend far above the ceiling intersection point
- Reliable magnetic damping
- Sturdy and compact housing, splash-proof conf.
- IP 54
- Simple axis alignment, because the intersection axis of the vertical laser planes, the pivot point of the tripod, and the plumb point coincide
- Detachable tripod with fine adjustment for fast and precise shaft alignment
- ¼“ and 5/8“ threaded connection
Applications
- Steel structures and interior construction
- Installation of suspended ceilings
- Installation of doors and windows
- Steel structures and interior construction
- Painting
- Electrical installation work
- Sanitary work
Technical data
- Tolerance ± 0.3 mm/m
- Self-leveling range ± 3°
- Reach Ø approx. 60 m
- Laser Laser class 2, 532 nm
- Power supply 4 x 1.5 V type mignon/AA
- IP rating IP 54
- Operating time approx. 8 h
- Threaded connection 1/4'' and 5/8''

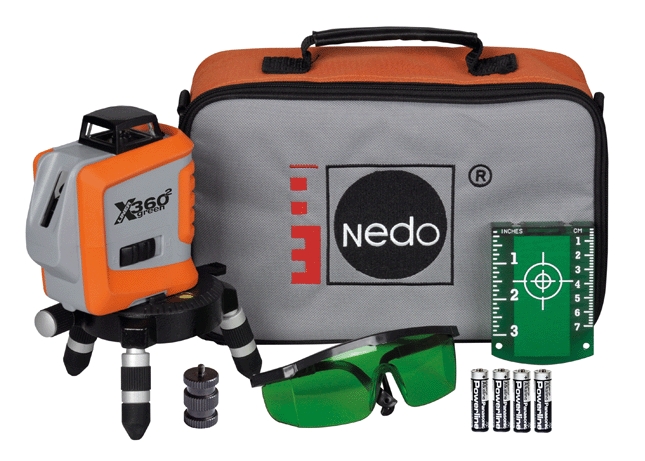

Supplied as standard
- Multi-line laser threaded connection
- Transport bag
