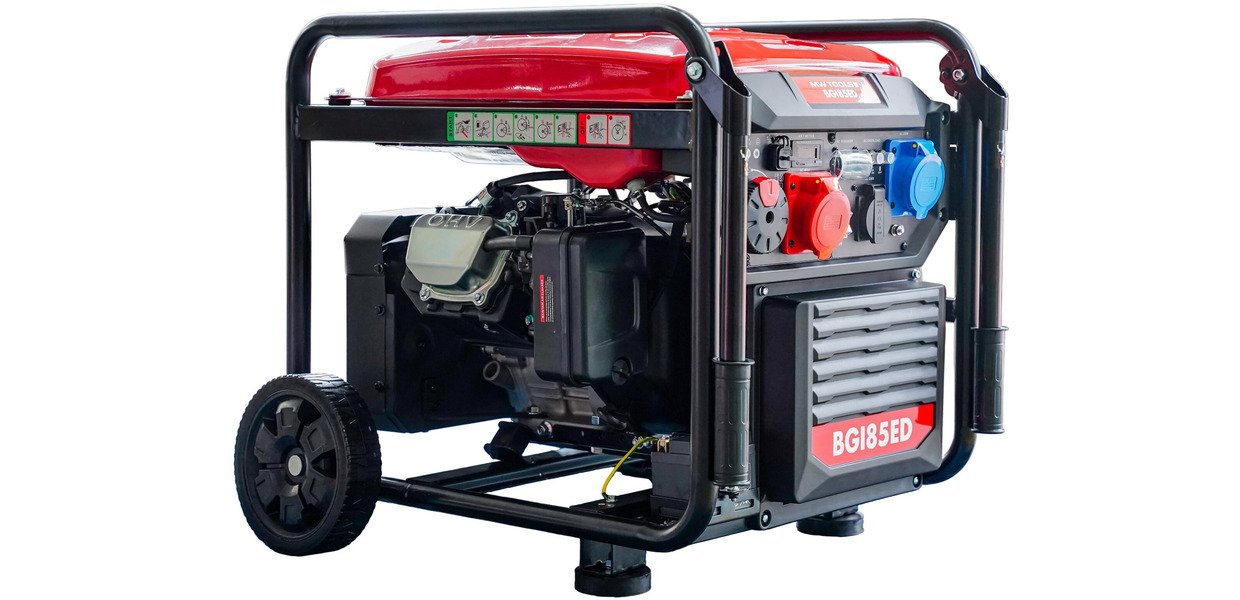

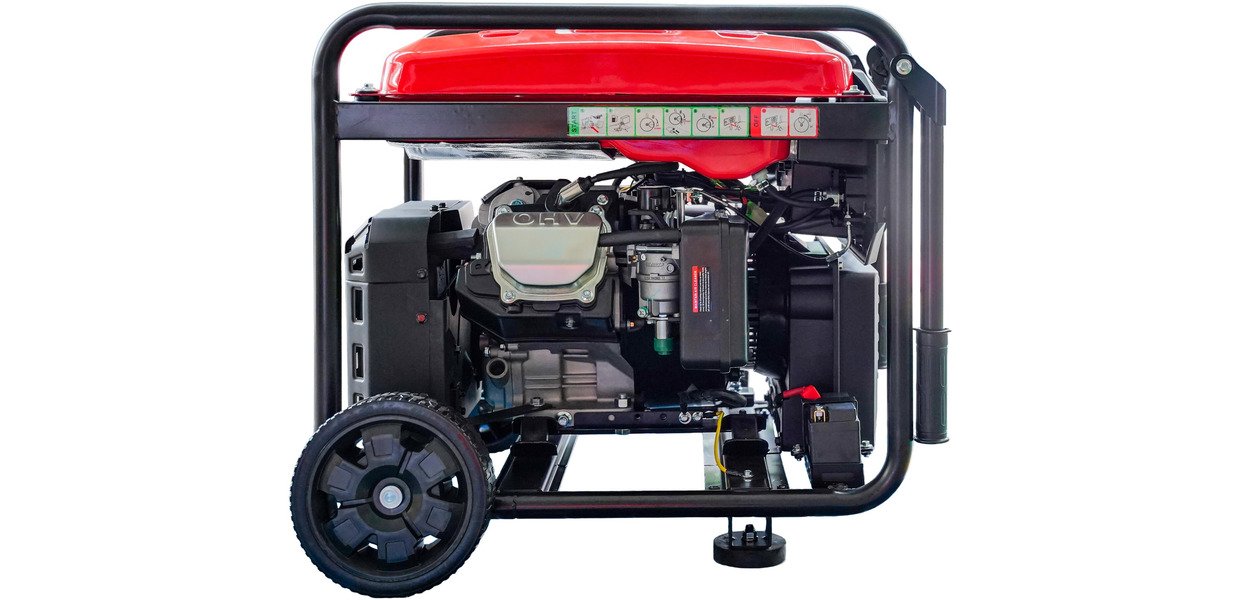

MW-Tools724562444 BGI85ED Petrol inverter generator 8.5 kW 3x400 + 230 V ATS plug electric start
Petrol inverter generator 8.5 kW 3x400V + 1x230 V with electric start and ATS plug.
Inverter petrol generator with stable pure sine wave output voltage, for use with electronic devices such as computers, smartphones, battery chargers, household appliances, etc.
Model with ATS connector, suitable for connection to the indoor installation and use as a backup generator during power outages or blackouts.
Special features
- Pure sine wave inverter technology, suitable for all electronics, servers, and computers
- Voltage: 3x400V + 1x230V
- High continuous output of 8.0kW (at 3x400V) and on 230V)
- 'Equal power' type with 2 separate fuses on the main board: a separate fuse for 230 V and for 3x400 V. This allows you to get the maximum power from the generator in both single-phase and three-phase mode.
- Euro V certified engine: meets legal emission requirements and saves energy with optimal performance.
- ATS plug, to be connected to an ATS and the fuse box, for automatic switching between mains power and generator power
- Engine with keyless electric start
- Large 20-liter fuel tank
- Integrated wheel set and trolley handle
- Low fuel consumption
- 8.5 kW maximum power
- 8.0 kW continuous power
- 2 separate fuses on the main board (1x230 V and 3x400 V)
- Electronic inverter control delivers a pure sine wave output voltage with a THD of +/- 5%, suitable for all electronic devices, computers, servers, household appliances, and USB chargers
- Electric start with integrated battery for easy keyless starting
- Open type with easy access to all components
- 1 socket 230 V 16A with earth contact
- 1 socket 230 V 32A with pin earth contact (blue industrial plug)
- 1 socket 3x400 V 16A (3-phase regulator with 5 pins)
- 2 USB sockets 5 V, 1A (1x) and 2.1A (1x) for fast charging smartphones and other portable battery devices
- Fuel-efficient. This provides a good autonomy of 8 hours (50% load) or 4 hours (100% load)
- Eco mode for lower fuel consumption at low load. In this mode, the generator runs at a lower RPM.
- Fuel consumption of 2.55 l/h (50% load) or 4.80 l/h (100% load)
- Large 25-liter fuel tank
- 13.4 hp 4-stroke OHC petrol engine with air cooling 458cc
- Impact-resistant steel tube frame as protection for the components and the tank.
- 2 large plastic rear wheels.
- Digital display showing parameters: Voltage (V), Frequency (Hz), hour meter (total), and hour meter since startup
- LED indicator warns of low oil level and automatically switches off the generator
- LED indicator warns of 10% overload and automatically switches off at higher overload
- AC reset button, for immediately resetting the generator (after overload), without having to switch it off first switching.
- Connection point on the front panel for grounding (grounding pin and cable not included)
- Manual choke knob
- In addition to the electric start, this model also features a pull cord, handy if the generator has been idle for a long time and the starter battery is dead.
- Suitable fuels: petrol type E5 (98), E10 (95), E15 (maximum 15% ethanol) and also alkylate petrol for 4-stroke engines. Unsuitable fuels: E85, ethanol, bio-ethanol
Technical data
- Maximum power: 8.5 kW
- Energy source: Petrol
- Voltage: 1 × 230 V / 3 × 400 V
- Frequency: 50 Hz
- Engine type: 4-stroke petrol engine
- Maximum engine power: 13.4 hp
- Number of cylinders: 1
- Cylinder capacity: 458 cc
- Cooling: Air-cooled
- Start: Electric
- Battery included: Yes
- Fuel consumption: 4.80 l/h
- Tank capacity: 25 l
- External tank connection: No
- Range: 8 hours
- Oil tank capacity: 1.1 l
- Continuous power (3 × 400 V): 8.0 kW
- Continuous power (1 × 230 V): 8.0 kW
- Current at 400 V: 21 A
- Current at 230 V: 34.8 A
- Sockets 3 × 400 V: 1 piece
- Sound power level (LwA): 104 dB(A)
- Wheels: Yes
- Type: Inverter
- USB sockets: 2 pieces
- 230 V 16 A sockets: 1 piece
- 230 V 32 A sockets: 1 piece
- Length: 588 mm
- Width: 501 mm
- Height: 590 mm
- Weight: 64.0 kg
Scope of delivery
- Gel gel battery 12V 1600mAh 19.2Wh, with dimensions 107×58×86mm
