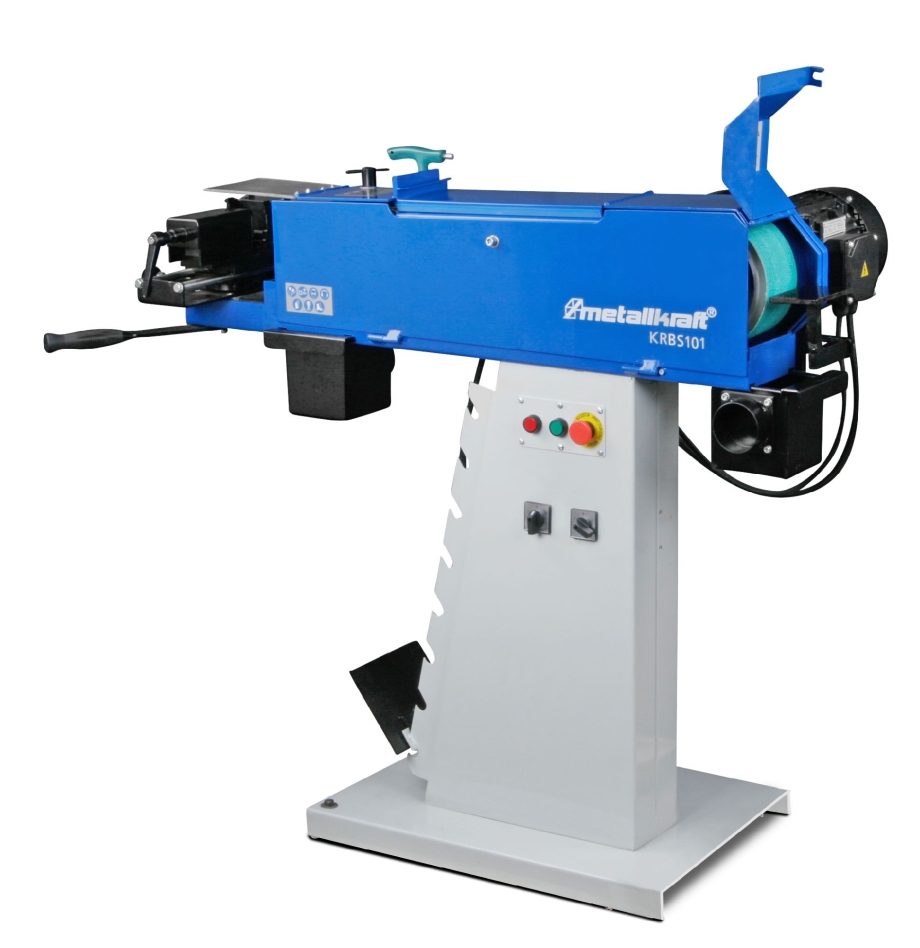

Metallkraft KRBS101 Combi Pipe Grinder-Belt Sander 400 Volt 2 in 1
Combination pipe grinder belt sander 2 in 1.
Special features
- With 3 operating surfaces (pipe, surface, and round grinding)
- Compact and space-saving
- Excellent price-performance ratio
Suitable for
- Pipes and classic grinding work.
- Workshops with limited space Workshops, maintenance services, schools, and training centers
Advantages
- The machine has 3 operating surfaces: front for pipes (with pipe clamp), top for surface grinding, and rear for round grinding (with workpiece support)
- Pipe grinder: for pure metal pipes and profiles Angle adjustment pipe clamp of 30 up to 90°
- Simple clamping and efficient operation with lever handle
- Prism jaw with stop, adjustable without tools
- Powerful motor with 2 speeds for processing both steel and stainless steel
- Quick change of rotation direction and speed with selector switches
- Can be connected to a dust extraction system thanks to the extraction nozzles
- Easy change of sanding belt and grinding rollers
- Safety features: Equipped with a separate emergency stop and separate start/stop button. Foldable safety guard
Technical data
- Voltage V 3x400
- Speed min-1 1400/2800
- Belt dimensions mm 100x2000
- Motor power kW 2.5-3.3
- Belt speed m/sec 15-30
- Grindable diameters mm 20-76
- Adjustable grinding angle ° 30-90 (0-60)
- Extraction diameter mm 2x100
- Weight kg 159.00
- Dimensions (lxwxh) mm 1,250x750x1,140
Standard included
- 1 grinding belt K36

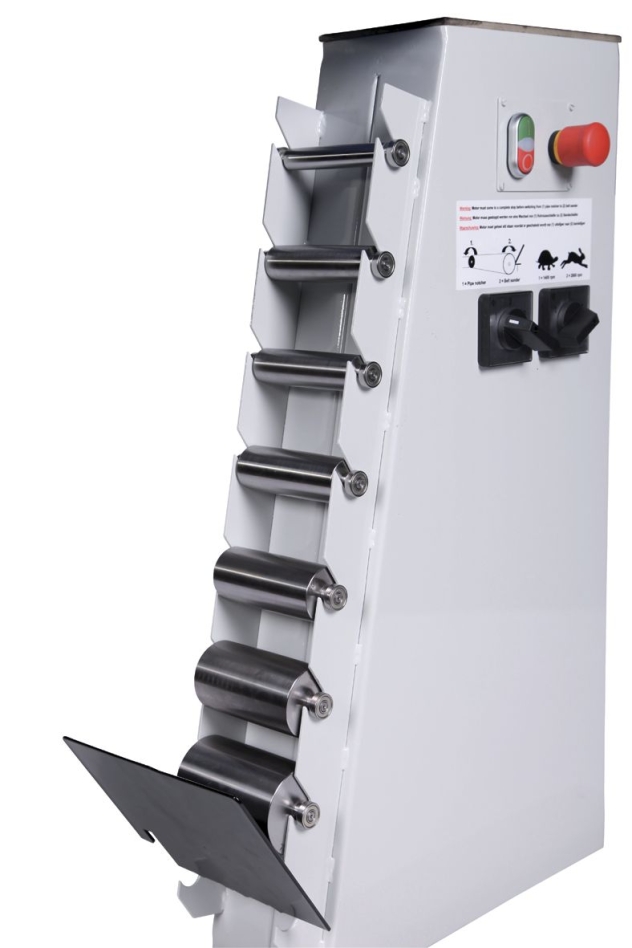

- 1 grinding roller ø 42 mm
- 2 chip collection bins. equipped with extraction connection
- Dutch manual, markings, CE mark, and CE certificate in accordance with Machinery Directive 2006/42/CE, Low Voltage Directive 2006/95/CE and EMC Directive 2004/108/CE
Tip: Supplied with only 1 grinding roller ø42 mm ex works, do not forget to order your other grinding rollers
