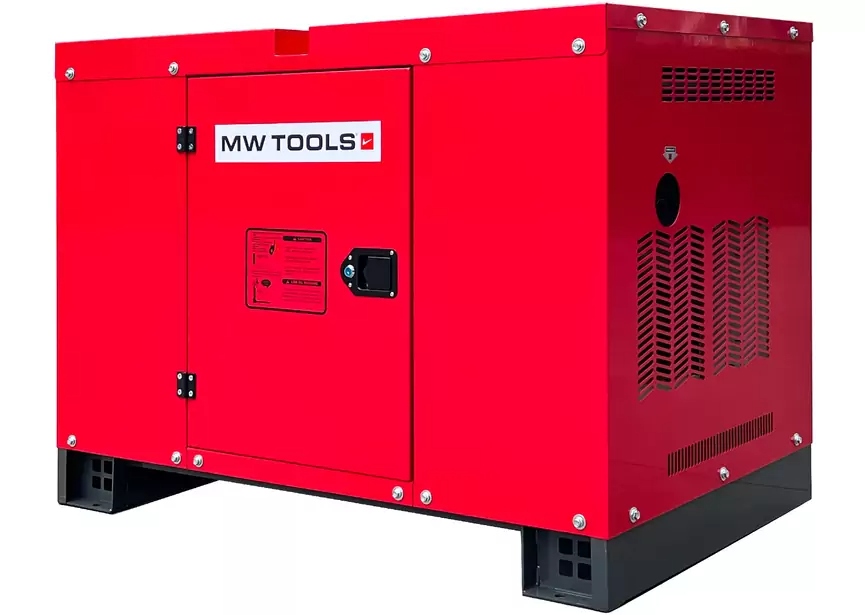

Metal Works DG150EP Diesel Generator 15 kW + Diesel Tank 12V

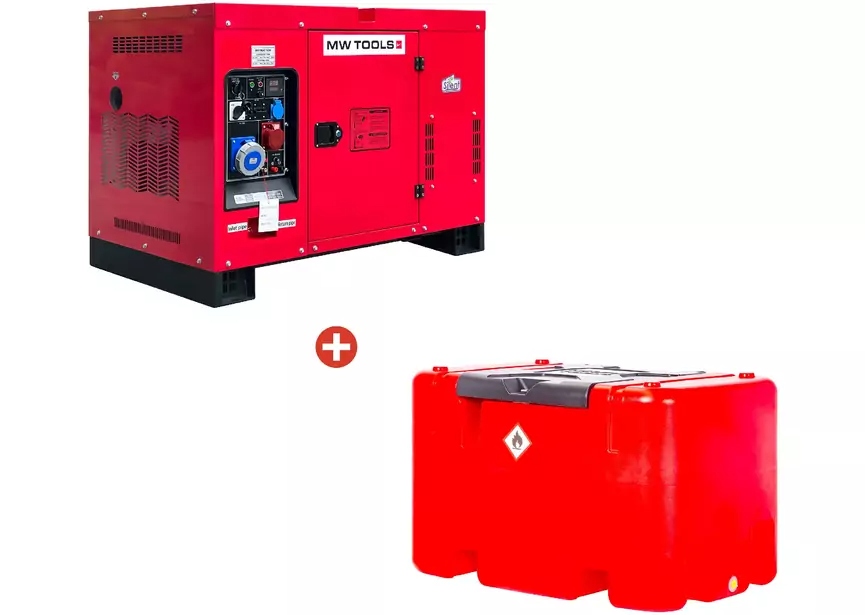

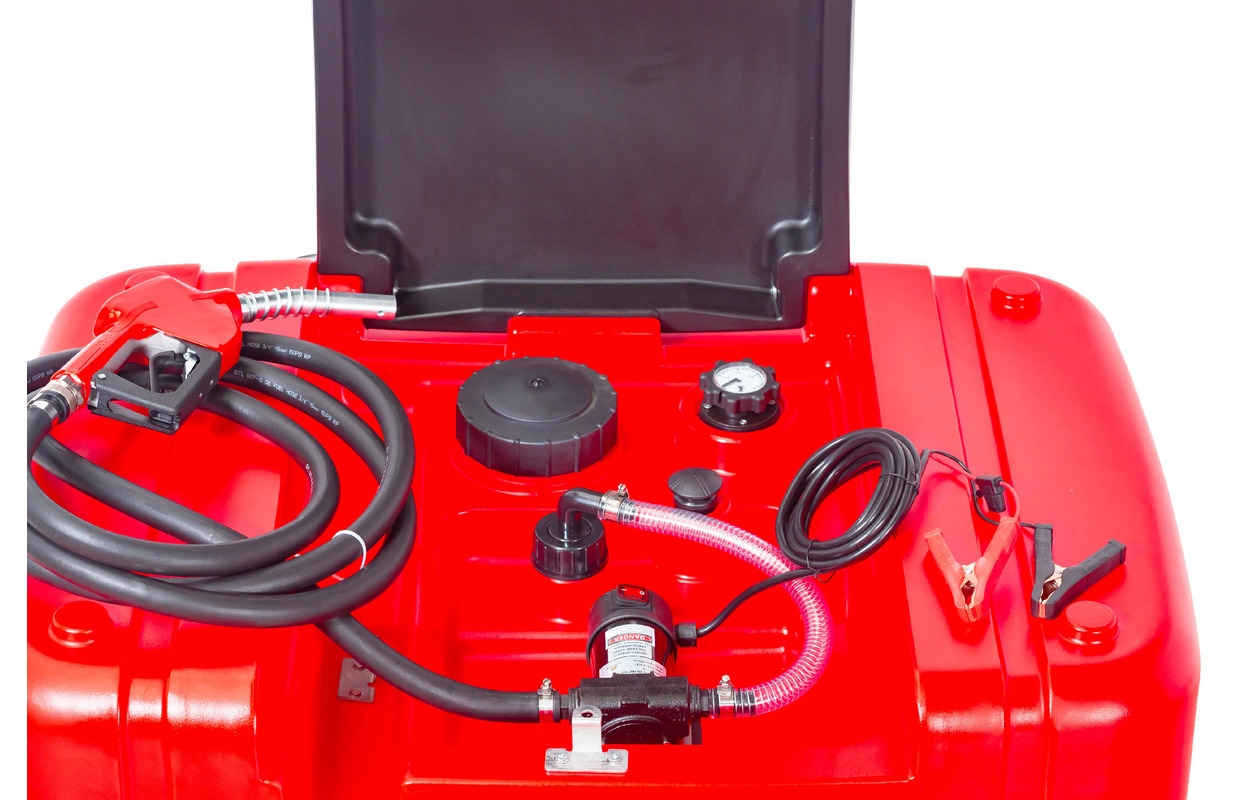

Complete power pack with 15 kW diesel generator and 220-liter external diesel tank, ready for any power outage or on-site power!
Features of DG150EP diesel generator
- Low-noise diesel generator 13 kW on 1x230 V and 15 kW on 3x400 V, with connection for external fuel tank.
- Suitable for power supply as a backup power generator in 1x230V or 3x400V, for powering businesses, homes, construction sites, large construction machinery, outdoor events, etc.
- Built-in 30-liter diesel tank + external tank connection

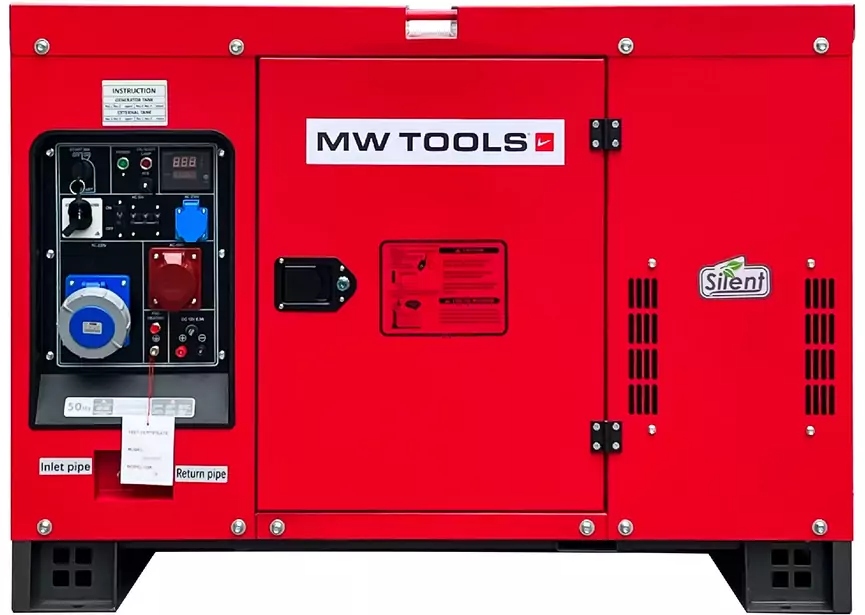

- The front panel is equipped with 2 7.5mm nipples for connecting fuel hoses to an external diesel tank. (hoses and the external tank itself are not included)
- The pump inside the housing can be switched between the internal and external tank via a selector switch. The pump is self-priming. Maximum suction length to the external tank: 10 meters. The external diesel tank must be at the same level as the generator.
- 13 kW maximum power at 1 x 230V
- 15 kW maximum power at 3 x 400V
- 100W maximum power at 12V
- 2 separate main fuses on the main board: 230 V (63A) and 3x400V (32A) with selector switch.
- Sockets: 3x400V 32A (1x), 230V 63A (1x), 230V 16A (1x) and 12V 8.3A (1x)
- The blue 1x230V 63A industrial socket is fused at 63A, and allows the generator's maximum power of 11 kW to be supplied continuously at 230V to a ATS.
- Air-cooled diesel engine 20.4 hp
- Electric start
- Electric preheating for easy cold starting of the engine in temperatures below 5°C
- 6-pin ATS input plug, to which an external ATS (Automatic Transfer Switch) can be connected. This ATS manages switching the generator on/off in the event of power interruptions in the internal electrical system. (The ATS itself is not included)
- Low-noise enclosure, fully lined with sound-absorbing foam
- AVR automatic voltage regulation: ensures a stable output voltage of 230 V. Voltage fluctuations are within +/- 2.5%, making this generator suitable for use with most electronic devices such as construction machinery, garden machinery, household and kitchen appliances, etc. Not suitable for very sensitive devices such as computers or sensitive electronics.
- Generator with a power factor of 0.8. (power of 1kW = 1.25kVA)
- Digital display showing 5 parameters: Voltage (V), Current (A), Frequency (Hz), Power (W) and hour counter
- 100% Copper wound alternator
- Connection for external grounding pin (pin and cables not included)
- Thermal protection against overload
- Automatic shutdown in case of oil shortage
