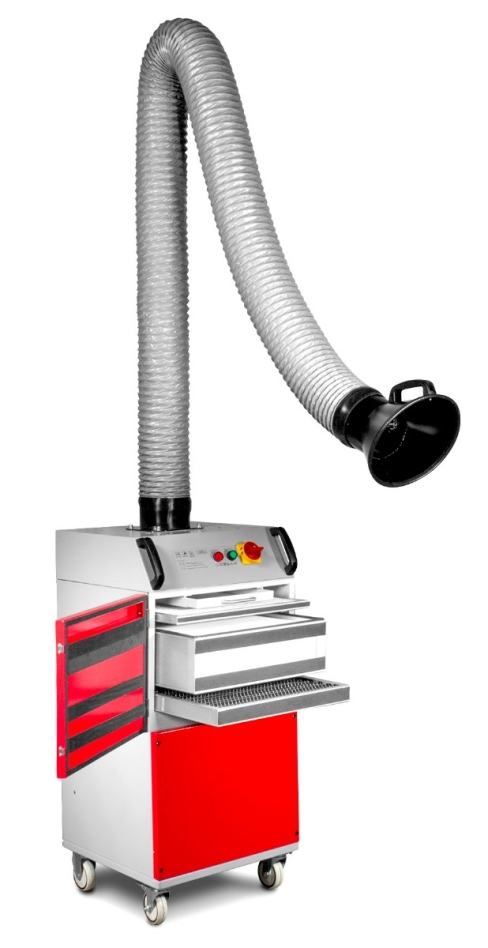

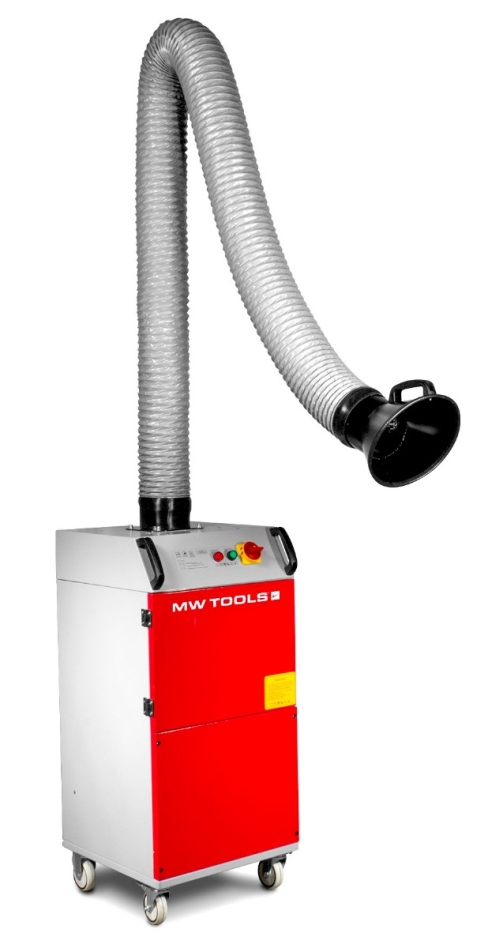

Metal Works LA1801 Mobile Welding Extraction 230 Volt 2000 m³/H
Mobile welding extraction 230 V with a flow rate of 2000 m³/h.
Mobile, noise-reducing filter unit for welding fumes, vapors, and dust during welding, grinding, and cutting work.
Special Features
- High filtration accuracy due to 3-stage filtration: refractory main filter, HEPA filter, and carbon filter for odor filtration
- HEPA filter with 0.5 µm precision made of PTFE, filters up to 99.9% of the finest harmful substances
- Purified air is returned to the workshop
- Maximum temperature of the flue gases: 65°C. This welding extraction unit is designed for welding fumes and is not suitable for smoke, gases, or vapors with other compositions or temperatures.
- High flow rate with limited consumption, thanks to an advanced fan design.
- 360° smoothly rotatable arm of 3 meters, diameter 150 mm.
- Stainless steel arm structure with 3 hinges for free positioning of your choice.
- Only 70 decibels.
- All filters easy to clean with compressed air.
- Collection bin for slag and dust.
- 4 swivel wheels with brakes.
- Overload protection.
Technical data.
- Voltage V 230.
- Power kW 1.1.
- Flow rate m³/h 1300.
- Maximum flow rate. m³/h 2000
- Noise level dB(A) 70
- Arm length mm 3000
- Arm diameter mm 150
- Filter surface m² 13
- Weight kg 83.00
- Dimensions (lxwxh) mm 520x550x1,200
Scope of delivery
- On Pallet
