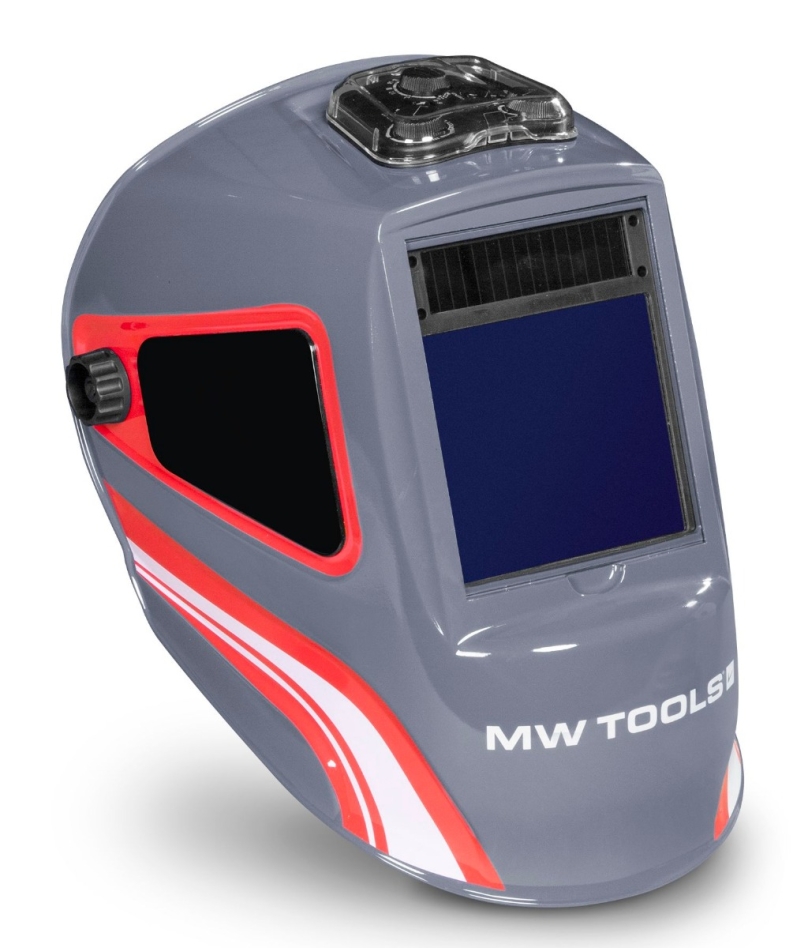

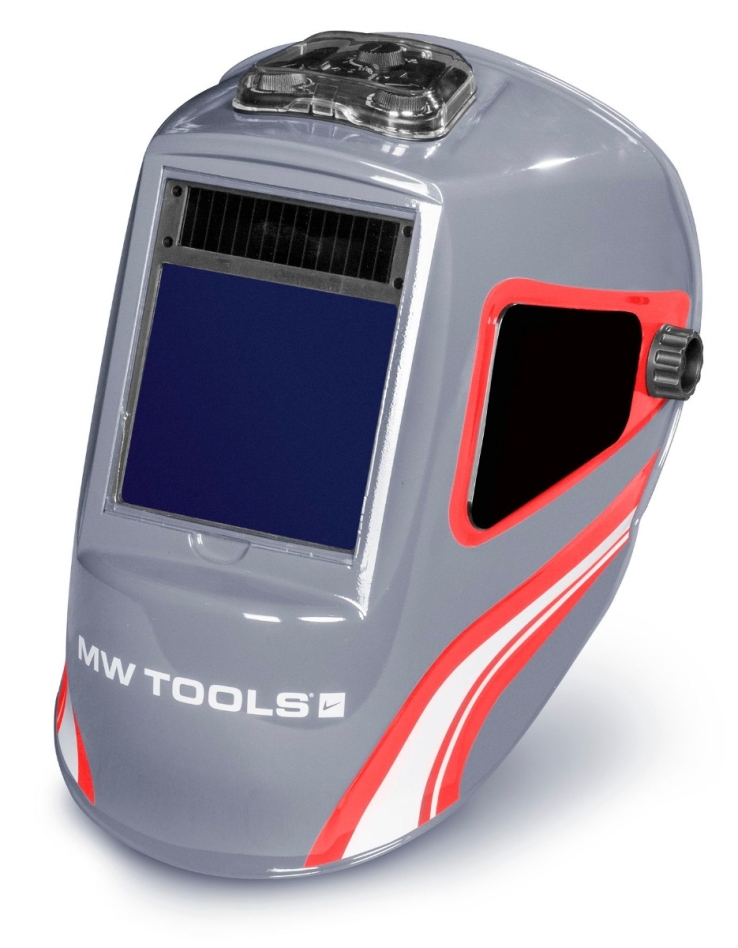

Metal Works Protect930 Automatic Welding Helmet
Panoramic welding helmet with a 180° wide field of view of the working environment. With its large windows, this unique welding helmet ensures ultimate visual ergonomics and working comfort. Enormous freedom of movement for the welder and a better view of the work environment, obstacles, welding equipment, etc. During welding, the helmet no longer needs to be lifted, and there is no longer a visual obstacle between the eye and the workpiece.
Special features
- 3 large automatic viewing windows with 180° panoramic view: Central: 100 x 93 mm Left and right: 50/85 x 100 mm DIN5
- Very wide and high-contrast view of the work environment
- For all processes (MIG, MMA, TIG), also for plasma cutting, oxy-acetylene welding, spot welding, and grinding
- Complete protection of eyes and neck against radiation and sparks during welding
- Very high filter class 1/1/1/2 for high-quality eye protection
- Comfortable headband with double hinges for a Optimal ergonomics during prolonged welding
- Settings: All control knobs on top outside DIN value 4-12: wide range
- Sensitivity stepless
- Delay stepless
- With grinding and plasma function
- Switches flawlessly, even at low current from 2A
- Power source: solar cells
Technical data
- Viewing window mm 100 x 93 + 50/85 x 100
- Button cells + solar cell
- DIN value DIN 4-12
- Switching response time (light to dark) s <1/25000
- Working range A 2
- Optical class 1/1/1/2
- Grinding function Yes
- MIG Yes
- TIG Yes
- MMA Yes
- Delay s 0.15-0.80
- Using temperature °C -5-+55
- Sensors 4
- Protection DIN 16
- Weight kg 0.88
