Metal Works TZ3M36 + ATZS15 Harvey Table Saw + Sliding Table 230V
Professional quality panel saw with worm gear transmission.
The TZ3M36 saw is designed for the highest levels of quality, functionality, and ease of use. Attention to detail guarantees carpenters years of reliable and stable work in the workshop.
The extra-deep, ground cast iron table for safer wood sawing, the miter fence with compass, and the fence that can be set in the high or low position are just a few of the top features of this new table circular saw with innovative qualities.
Special Features TZ3M36 + ATZS15
- Extra-deep, precision-ground cast iron table, 800 mm

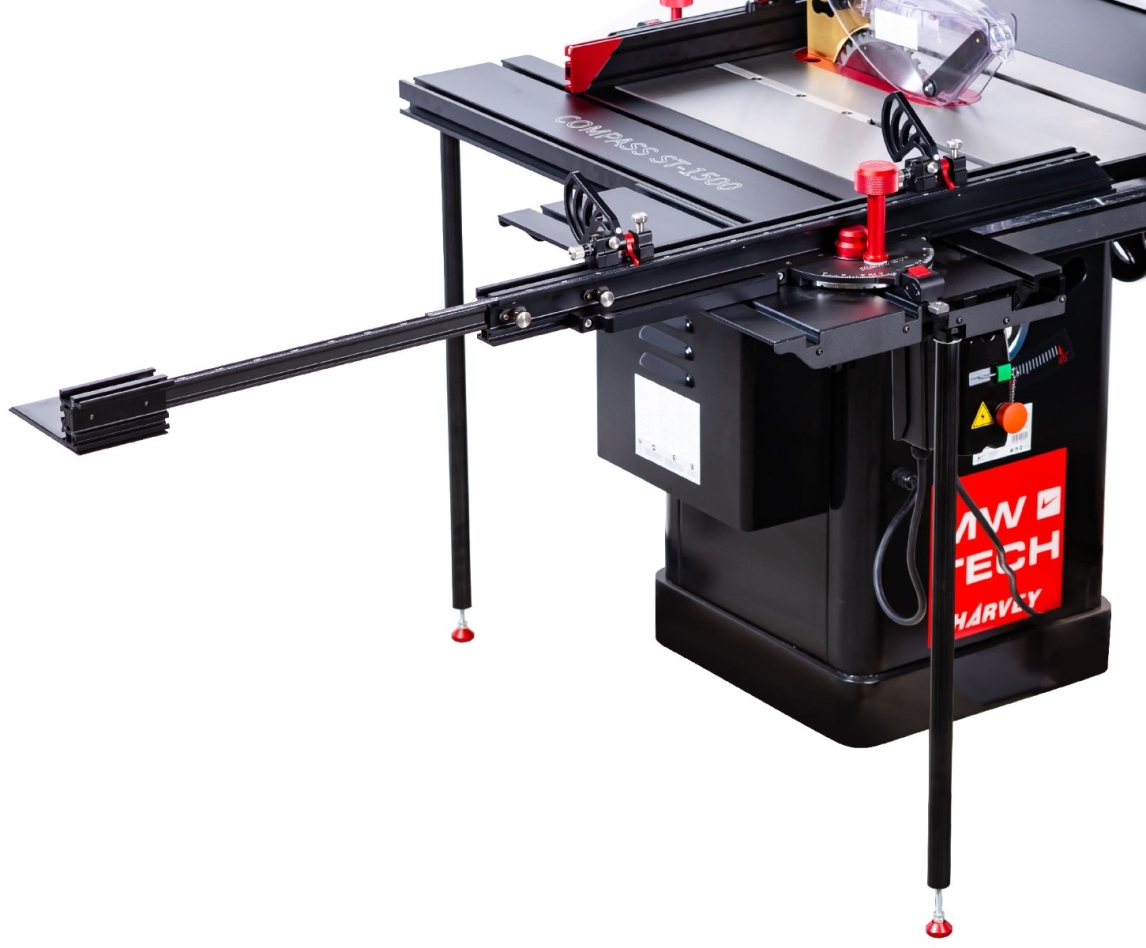

- Universal sliding table up to 1,540 mm

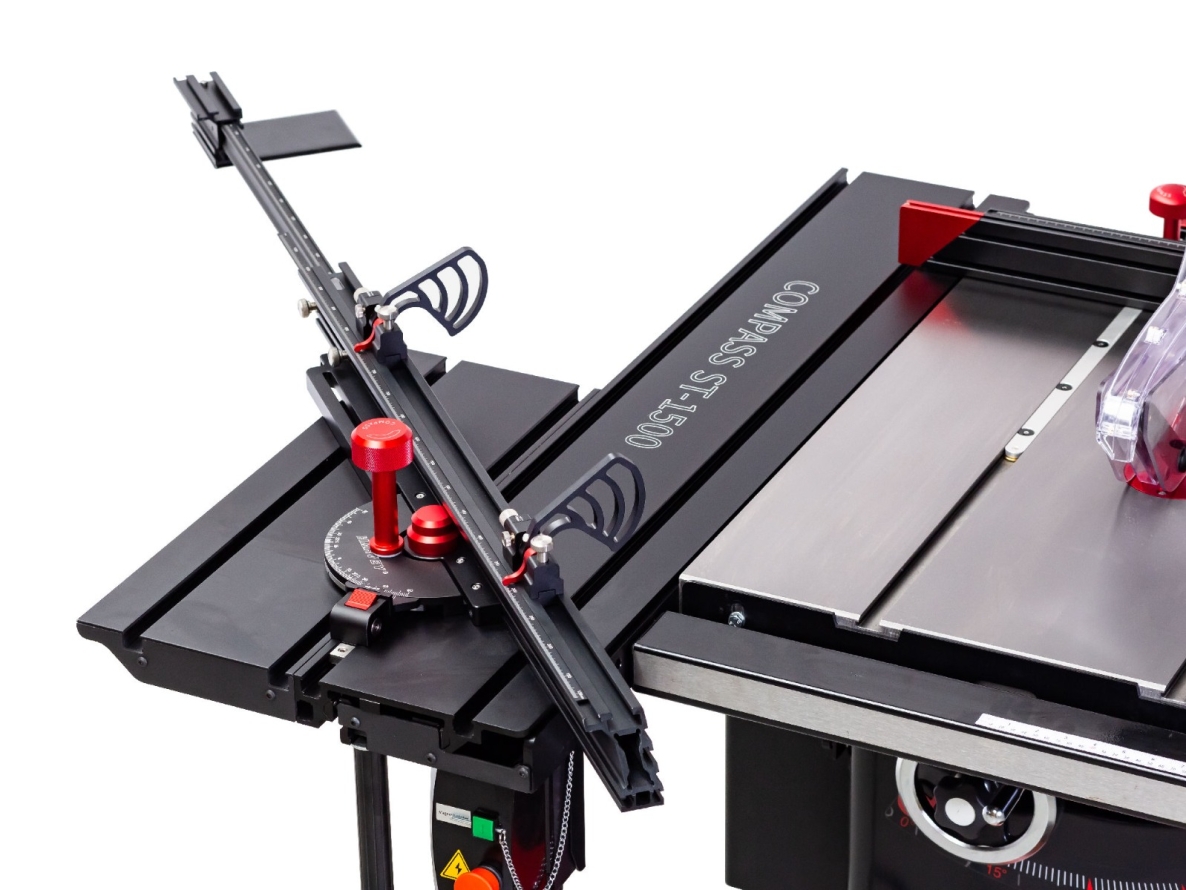

- Unique COMPASS miter fence
- Patented quick-change system that allows you to change the saw guard and splitter knife in seconds without removing the table insert
- Robust T-slot saw guide with dual position, high and low

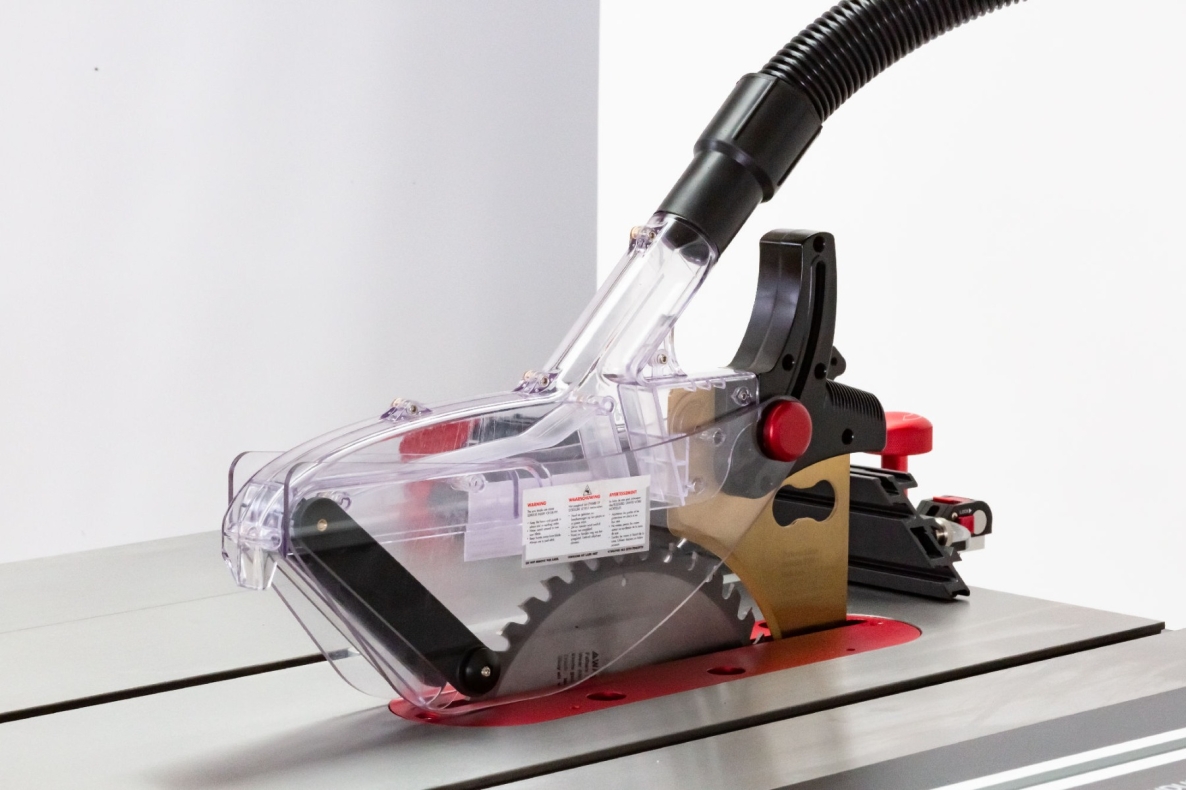

- Transparent saw guard with optimized protection

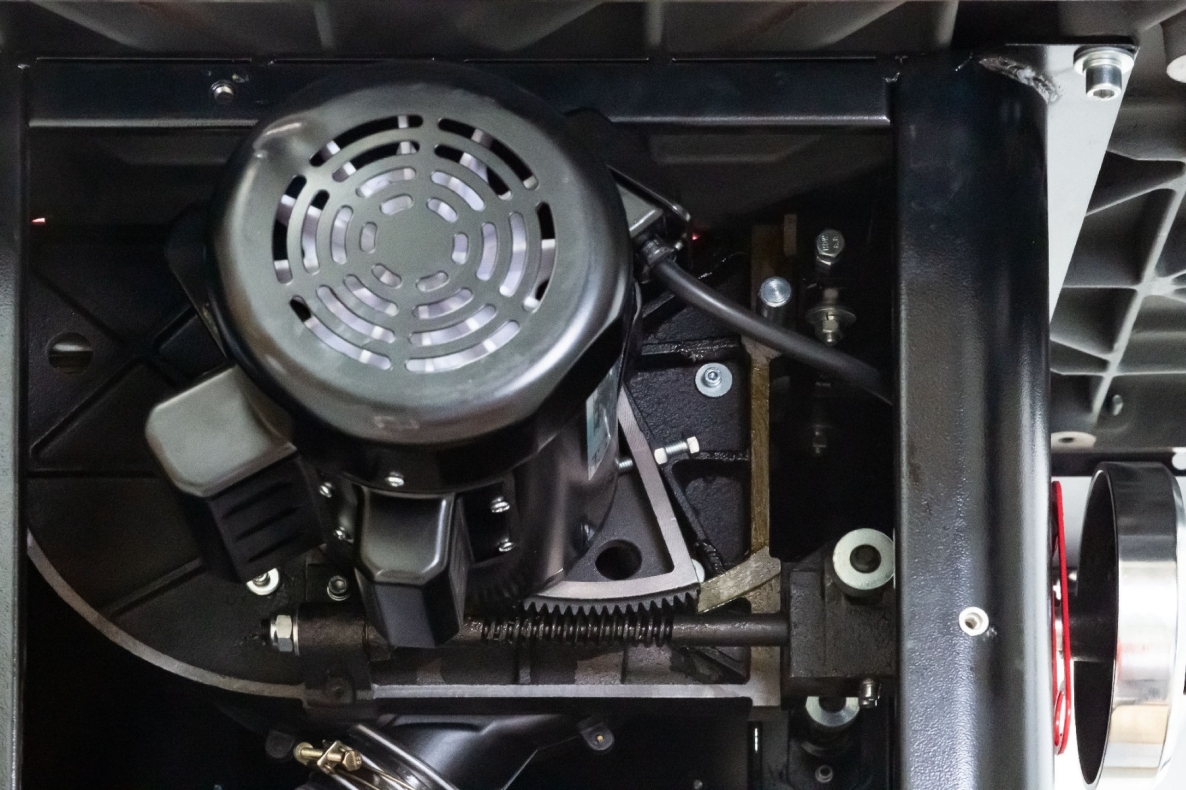

- Blade Tiltable via worm gear, mounted directly on the cast iron housing
- Integrated dust collection system
Technical data
- Voltage V230
- Power kW2.25
- Motor type TEFC induction motor
- Max. sawing width stop mm914
- Saw blade diameter mm250
- Dimensions Work table (LxW)mm 800x755 (thickness 30 mm)
- Working height mm 860
- Extraction diameter mm 100
- Sawing capacity 45° mm 55
- Sawing capacity 90° mm 79
- Weight kg 275.00
- Dimensions (LxWxH)mm 1.795x1.265x1.225
Scope of delivery
- Circular saw blade diameter 250x30 mm, 40 teeth with ATB carbide tips
- COMPASS miter stop
- Side extension table
- Roller table
- Installation and operating manual in Dutch, markings, CE marking and CE certificate according to the
- Machinery Directive 2006/42/EC and EMC Directive 2014/30/EC
