Metal Works TZ2M36 Harvey Table Saw 230V
Professional table saw with worm gear unit.
Compact and efficient saw, perfectly suited for the cabinetmaker working in a small workshop.
The "MW-Tech Harvey" brand stands for precision, reliability, convenience, and safety.
Special Features
- Solid cast iron base with worm gear unit
- Precision-ground, extra-deep cast iron table 800 mm

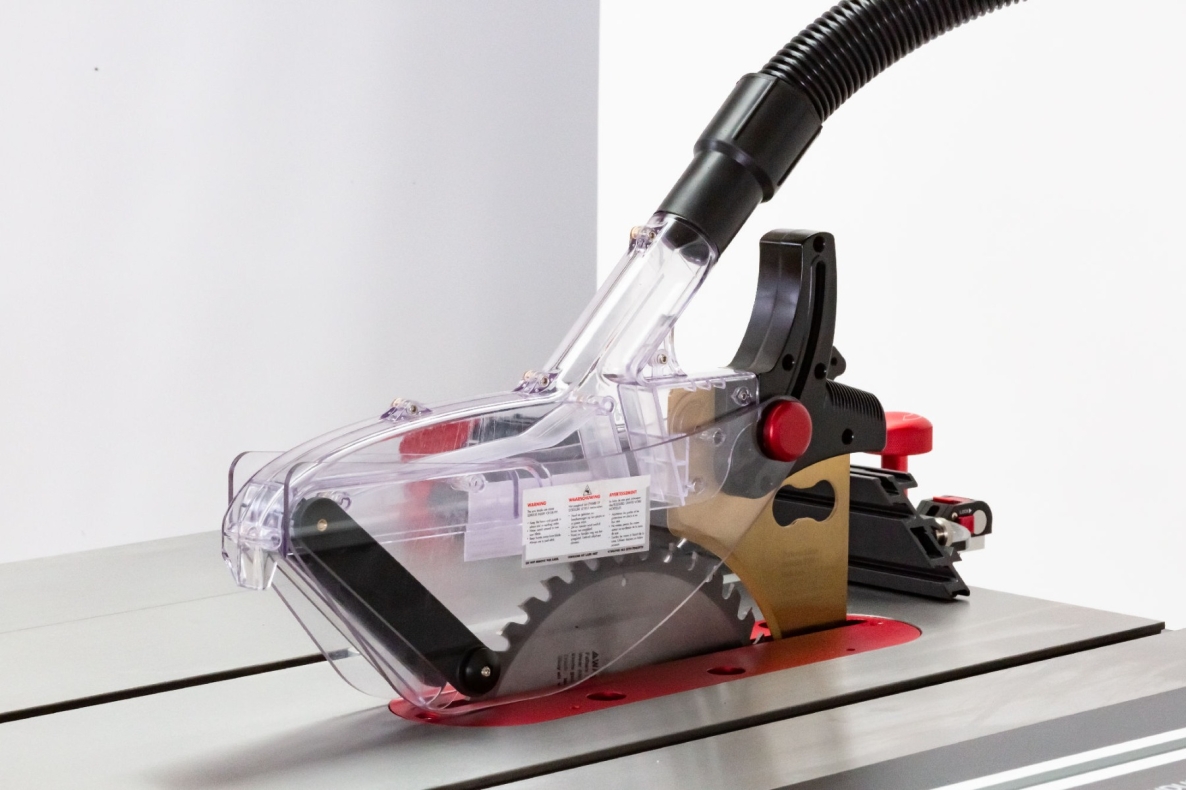

- With the patented plug-in quick-change system, you can change the blade guard and splitter knife within seconds without removing the table insert

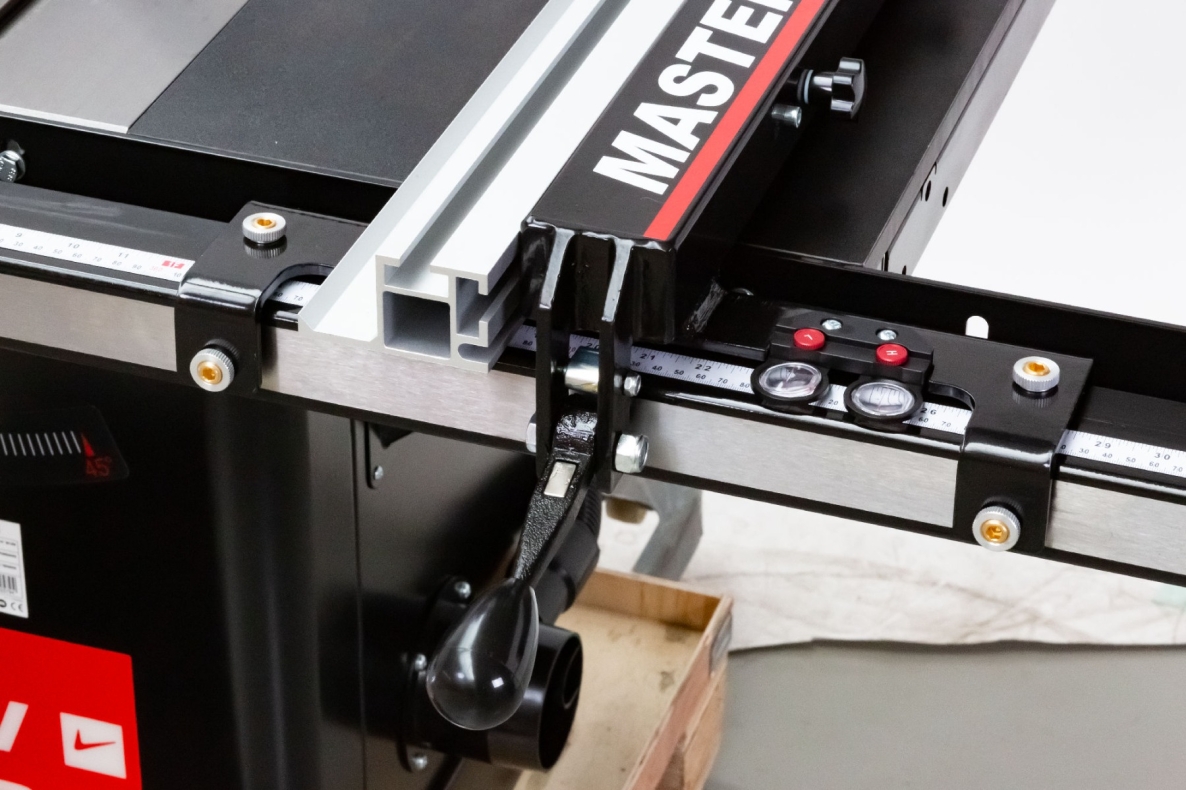

- Heavy-duty T-slot saw guide with dual readout capability (high/low)

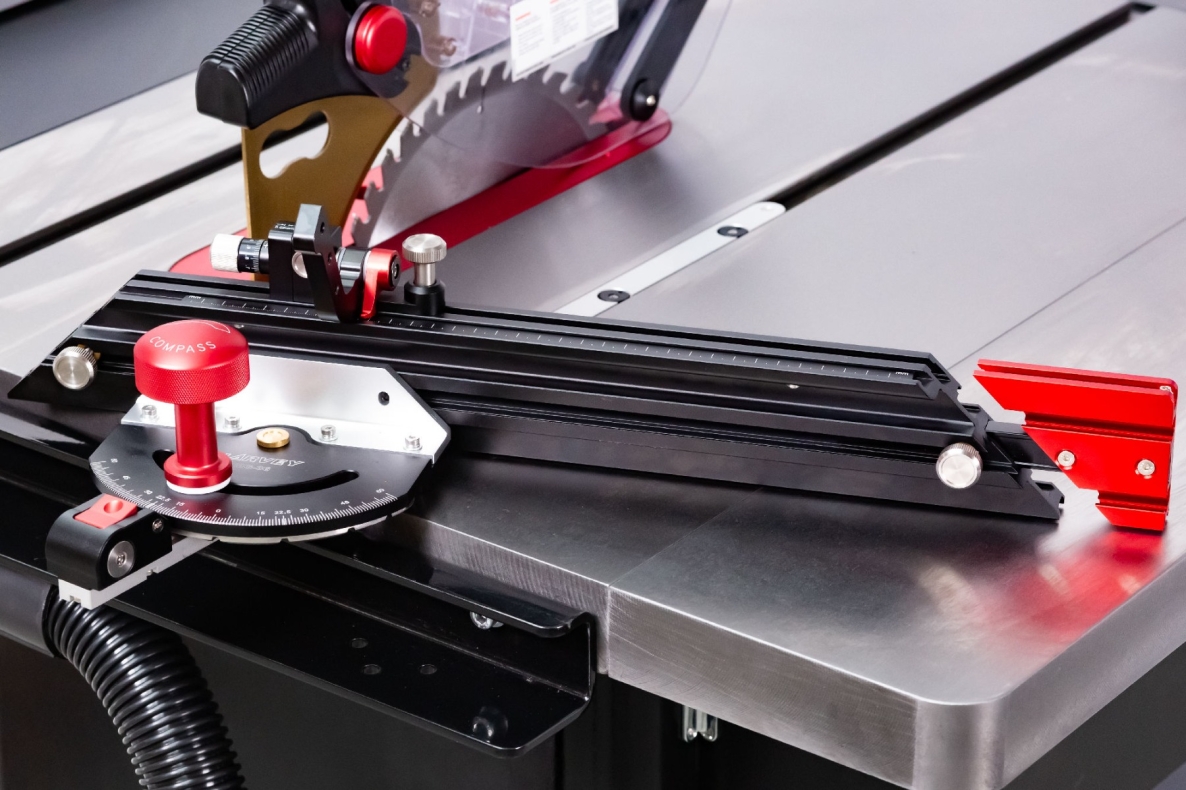

- Unique COMPASS miter guide
- Dust extraction directly under the saw blade
- 1.65 kW TEFC motor with brake for quick stop
Technical data
- Voltage V230
- Power kW1.65
- Motor type TEFC induction motor
- Max. cutting width stop mm1540
- Saw blade diameter mm250
- Maximum saw blade miter angle°0 ~ 45° left
- Dimensions Work table (LxW)mm 800x755 (30 mm)
- Working height mm 860
- Extraction diameter mm 100
- Scoring speed rpm 3850
- Sawing capacity 45° mm 55
- Sawing capacity 90° mm 79
- Weight kg 186.00
- Dimensions (LxWxH)mm 1,340x1,650x1,200
Scope of delivery
- Circular saw blade Ø 250x30 mm, 40 teeth with ATB carbide tips
- COMPASS miter guide
- Side extension table
- Operating manual, labels, CE mark, and CE certificate in accordance with Machinery Directive 2006/42/CE, and EMC Directive 2014/30/CE
