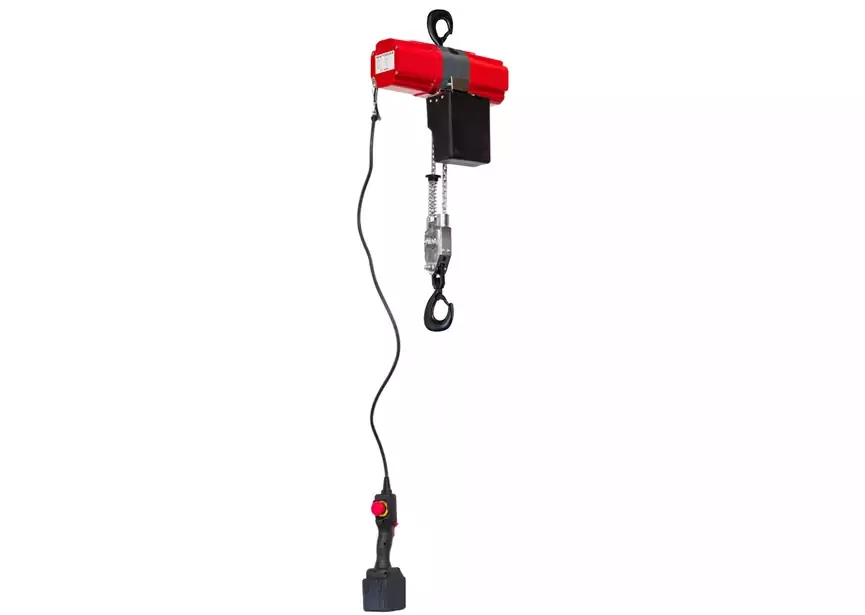

Metal Works KT1003B Battery Chain Hoist 990 kg, lifting height 3 m + 4 Ah battery wired control
Special Features
- Battery chain hoist with a capacity of 990 kg and a lifting height of 3 m, supplied with 1 x 4Ah battery and charger.
- Supplied with wired remote control
- Battery hoist for lifting all kinds of loads without 230V mains voltage. Type with suspension hook suitable for lifting on a shaft, rack, chain, or beam clamp. Also ideally suited for mounting on trolleys, tower trolleys, gantry or jib cranes, or an H-beam in the workshop.
- Lifting capacity 990 kg
- Lifting height 3 meters
- Lifting speed 1.75 m/minute
- Lifting chain with 5.0 x 15 mm links in double line
- Double braking system: mechanical brake and electric brake
- Thermal overload protection and surge protection (overvoltage and undervoltage)
- Limited travel switch at upper and lower position

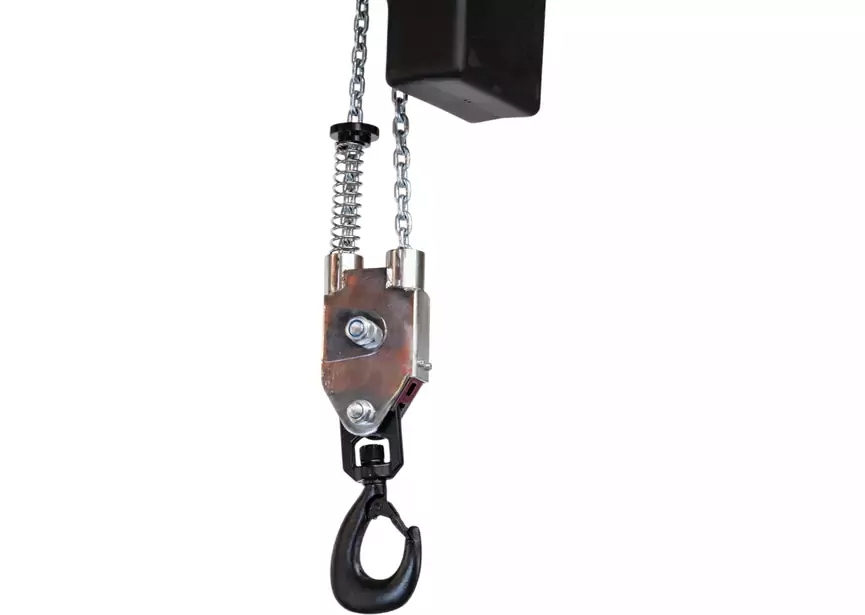

- Swivel hook rotatable 360°, with safety valve
- Supplied with 1 lithium battery 36V 4.0Ah and 230V battery charger
- IP class: IP 23
Advantages
- Lifting capacity 990 kg
- Power supply: 4.0Ah lithium battery and battery charger included. The batteries are interchangeable.
- Wired operation, with 1.5 m cable. The battery clicks into place in the control spear
- Own weight only 21 kg, lightweight aluminium structure with high dimensional stability
- High duty cycle of 40% (duty cycle)
- Developed for intensive use and long working times of up to 30 minutes at full load.
- Brushless DC motor 850 W, completely maintenance-free
Applications
- Industry, workshops, maintenance services, government
Technical data
- Capacity in kg kg 990
- Lifting type Chain
- Voltage V 36
- Power kW 0.85
- Lifting height m 3
- Lifting speed m/min 1.75
- Lowering speed m/min 2.25
- Cable length remote control m 1.5
- Wireless remote control Duty cycle 40
- Battery Ah 4
- Battery (voltage) V 36
- Length mm 630
- Width mm 400
- Height mm 155
- Weight kg 20.00
Scope of delivery
- In box
