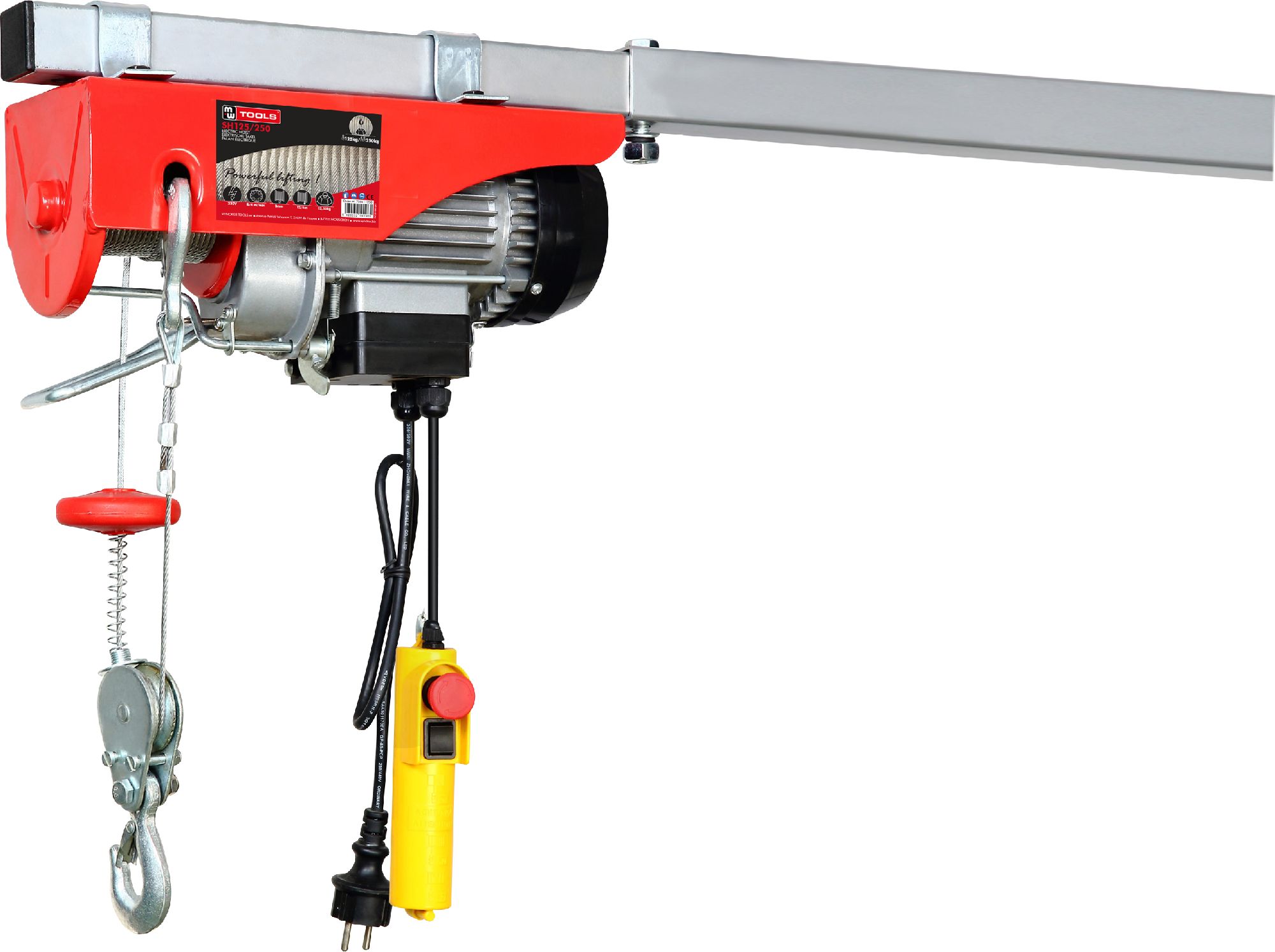

Metal Works SH125/250 Electric Hoist 125/250 kg
Robust 220 V hoists type BASIC.
Special features
- With emergency stop on control panel
- Limited speed switch and anti-reverse switch
- IP54 protection class and CE approved
- Chassis designed for mounting on the hoist holder PP300/1100 or PP600/750
- Duration cycle: 20%: 2 minutes of hoisting per 10 minutes
- Supplied with:Wire-controlled remote control (1.60 m)Hook with safety clip
Technical data
- Capacity kg 125/250
- Voltage V 230
- Hook type single/double
- Lifting height m 12/6
- Lifting speed m/min 8/4
- Cable diameter mm 3
- Motor power kW 0.5
- Remote control cable length m 1.6
- Wireless no
- Weight kg 12.50
- Dimensions (lxwxh) mm 333x132x200
Standard included
- In box
- Manual
- Note: supplied without hoist holder!!
