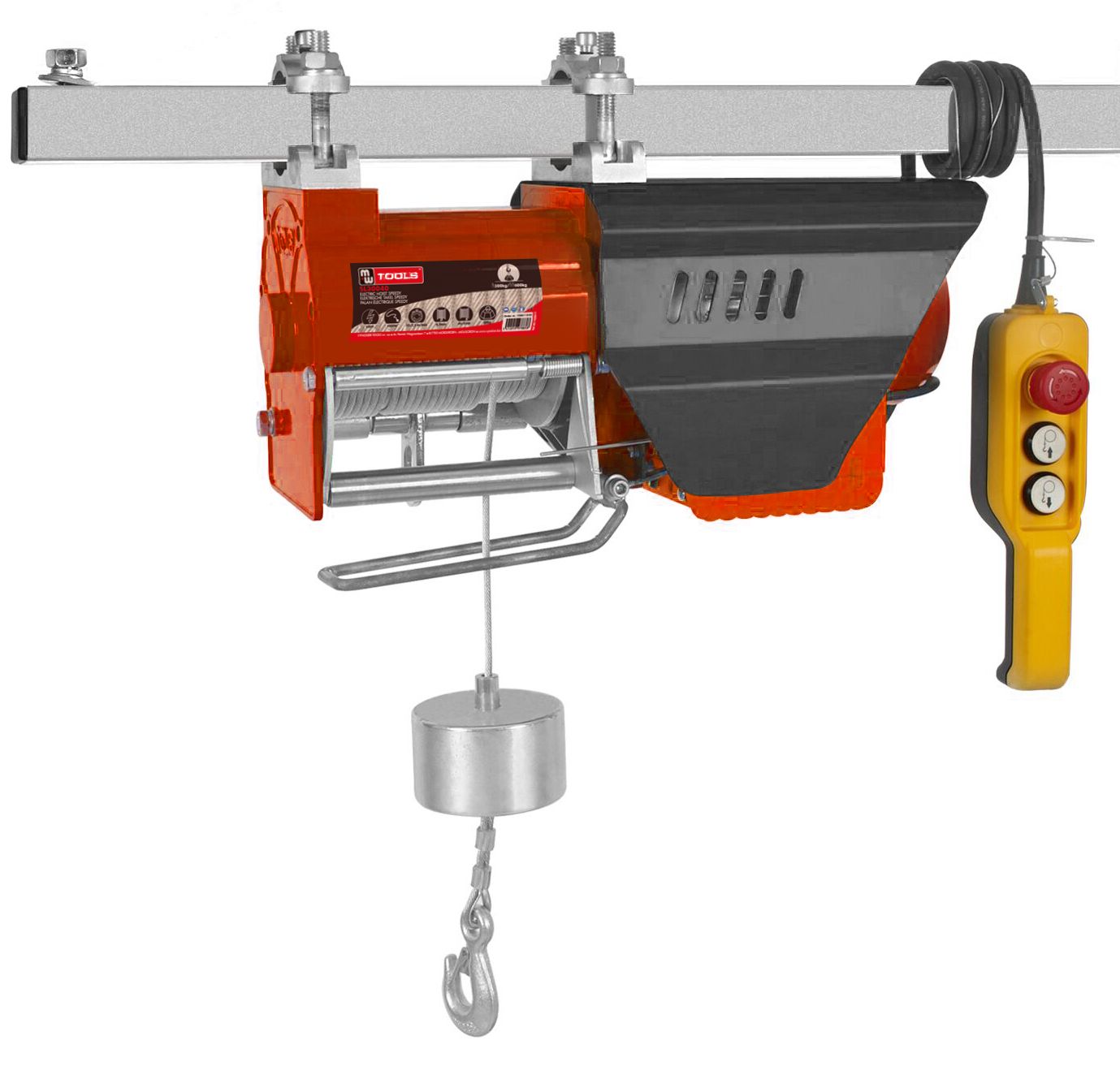

Metal Works SL30040 Speedy Electric Hoist specifically for construction!
230V SPEEDY hoist, fast type 15m/min. Specially developed for use on high scaffolding.
Features:
- Fast hoist: twice as fast as 'basic' hoists
- Lifting height 40 meters, ideal for scaffolding
- Suspension with quick release, 1 person can effortlessly install the hoist in a few minutes and use it immediately.
- Stops automatically when the load is down.
- Automatic cable distribution on the reel, increased safety
- With emergency stop on control panel.
- End-of-travel switch and anti-reverse switch.
- IP54 protection class and CE approved.
- Chassis designed for mounting on the hoist holder PP300/1100 or PP600/750.
- Duration cycle: 20%: Lifting is possible for 2 minutes per 10 minutes.
Technical data
- Capacity kg 300/600
- Voltage V 230
- Hook type single/double
- Lifting height m 40/20
- Lifting speed m/min 15/7.5
- Cable diameter mm 4.5
- Motor power kW 1.3
- Remote control cable length m 1.5
- Weight kg 28.00
- Dimensions (lxwxh) mm 486x227x238
Standard included
- In box
- Manual
- Wired remote control (1.60m).
- Weighted hook prevents swinging at high heights
- Suspension with quick release
- Note: supplied without hoist holder!!
