Optimum SEL550012 Electric Hoist 12V Cordless 26 meters 5443 kg
Heavy-duty 12V winch with 4.95kW motor, suitable for use in roadside assistance, with tow trucks, trucks, off-road vehicles, etc.
Special features
- Powerful 3-stage gearbox with mechanical brake

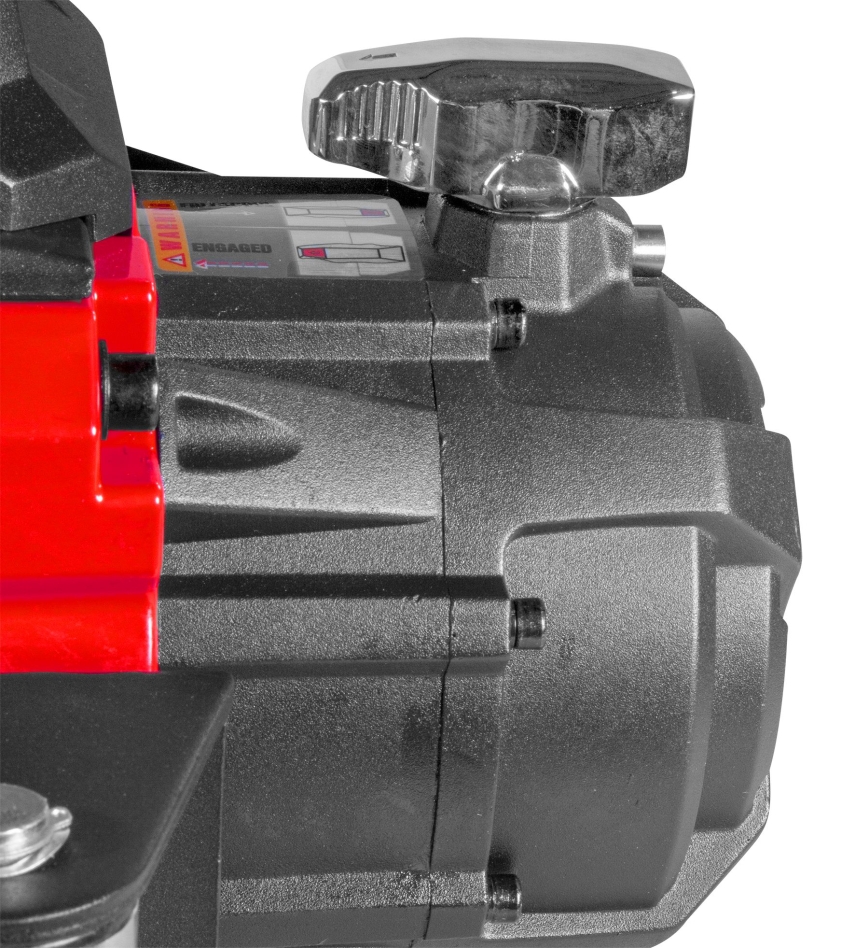

- Large manual freewheel for fast cable unwinding

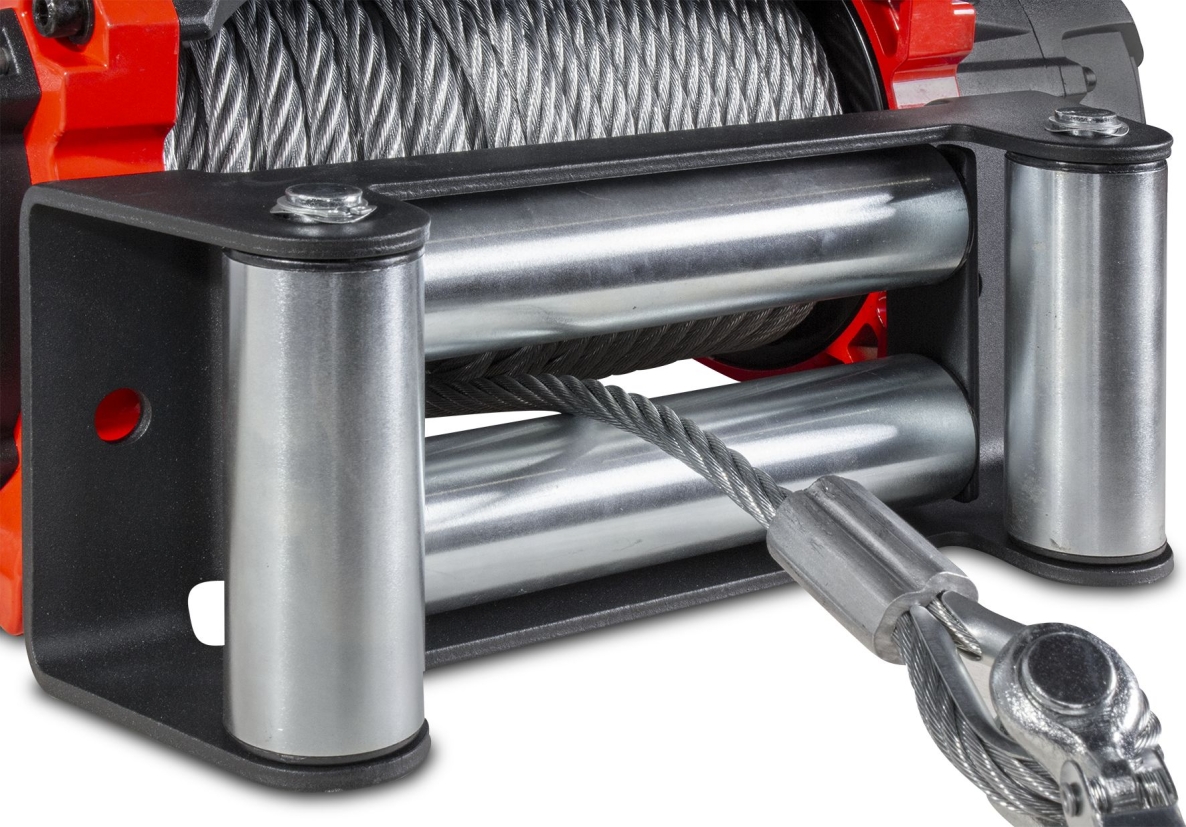

- Cable guide with 4 rollers for safe winding and unwinding
- Steel cable with safety hook
- Remote control works both wirelessly and wired
- Waterproof connection box for power cables
- Heavy-duty mounting brackets suitable for bolt installation
Benefits
- High winding and unwinding speed
- Wireless remote control
- High capacity of 5443kg, therefore also suitable for heavy vehicles
- Professional remote control, both wireless and wired
- IP68 waterproof rating, perfect for all rough driving and terrain conditions
- Automatic mechanical brake in the drum
Technical data
- Voltage 12 V
- Power 4.95 kW
- Gear ratio 180:1
- Idle wheeling Yes
- Mechanical brake Yes
- Cable diameter 9.5 mm
- Cable length 26 m
- Drum diameter 63.5 mm
- Drum length 228 mm
- Remote control Yes
- Speed - Required Amperes under load 0 kg 14.5 - 58 m/min - A
- Speed - Required Amperes under load 1361 kg 3.4 - 160 kg m/min - A
- Speed - Required Amperes under load 2721 kg 2.1 - 259 m/min - A
- Speed - Required Amperes under load 4091 kg 1.45 - 329 m/min - A
- Speed - Required Amperes under load 5454 kg 1.1 - 427 m/min - A
- Capacity 5443 kg
- Weight 34.00 kg
- Dimensions (lxwxh) mm 557 x 164 x 243
Supplied as standard
- In box
- Manual
