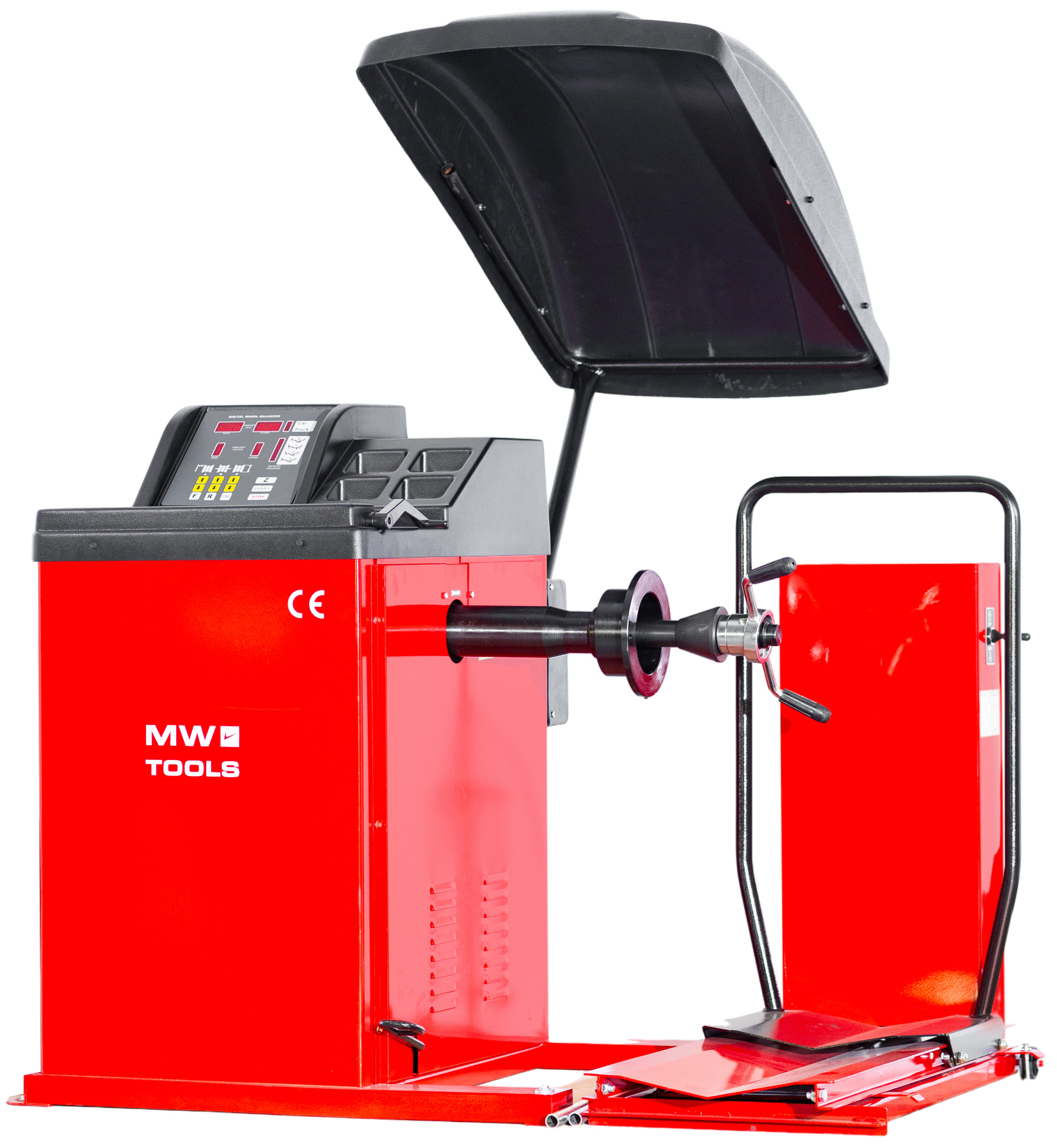

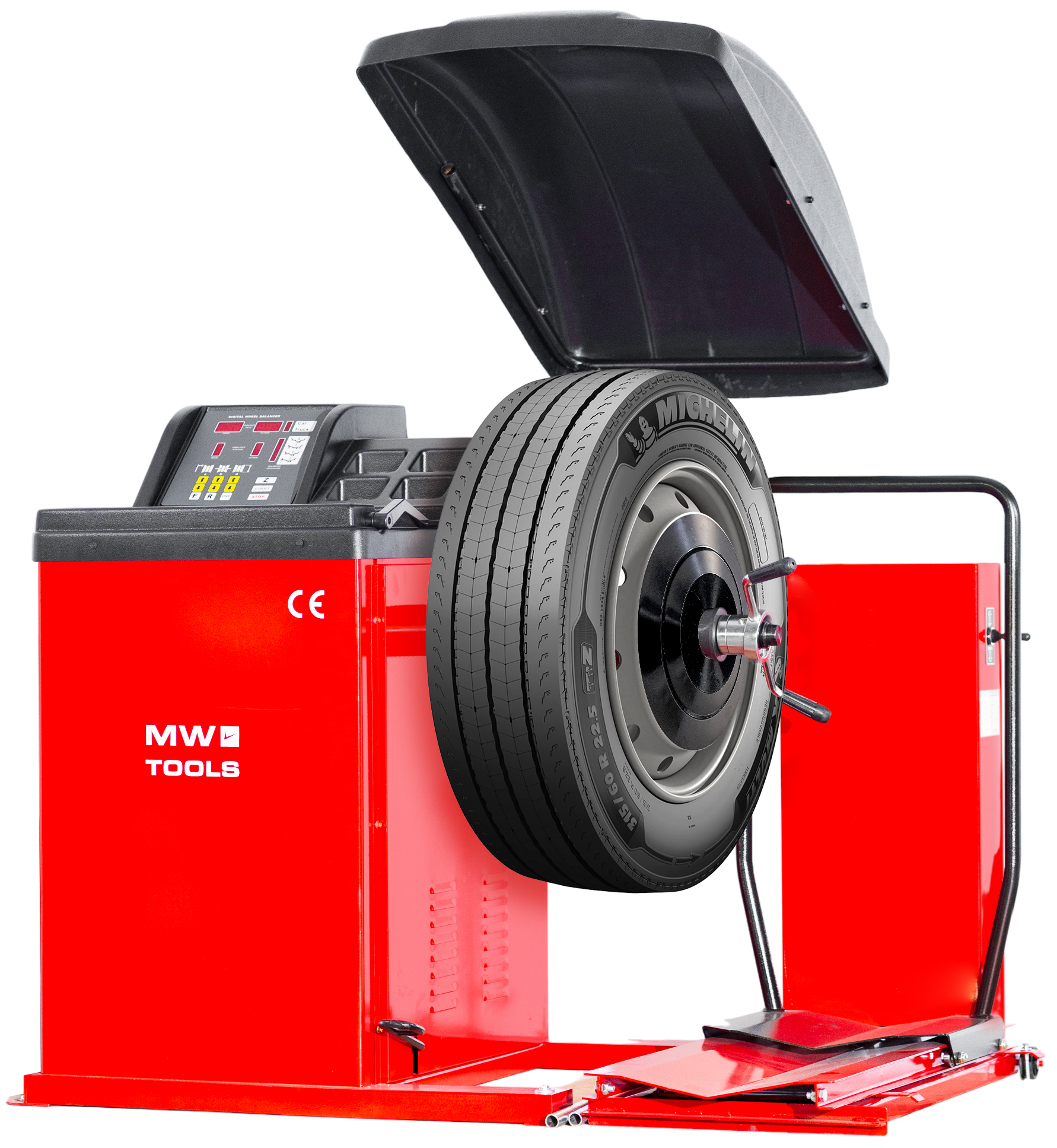

Metal Works BB700 Truck Tire Balancing Machine 24 inch Lift 150kg
Special Features
- Truck tire balancing machine with lift for tires up to 150 kg and a diameter of 1200 mm.
- For balancing most common types of tires for trucks, trailers, semi-trailers, vans, motorhomes, etc., with steel and aluminum rims up to 24 inches.
- Net shaft length of 180 mm, for balancing all standard tires as well as wider and special wheels that do not fit on a standard balancing machine.
- Large machine frame ensures good stability and reliable measurement results
- The machine has a heavy weight of 226 kg, which ensures perfect stability during balancing
- 40 mm shaft with high-precision sensors, for an accurate measurement result
- Automatic indication of weight position by rotating the wheel
- Self-calibration and self-diagnosis function
- Direct indication of depth and position of the weights
- A plastic protective cover protects the user while rotating the wheel
- Rim diameter 252-610/10†-24†mm
- Rim thickness 40-510/1.5†-20†mm
Advantages
- Built-in lift 150kg
- Balance capacity front tires up to 150kg
- Maximum wheel diameter 1200mm
- 5 balancing modes for both steel and aluminium rims: Normal, ALU-1, ALU-2, ALU-3 and Static. Suitable for both dynamic and static balancing (motorcycle wheels)
- Suitable for rims with a diameter of 13" to 24"
- Suitable for rims with a thickness of 1.5" - 20"

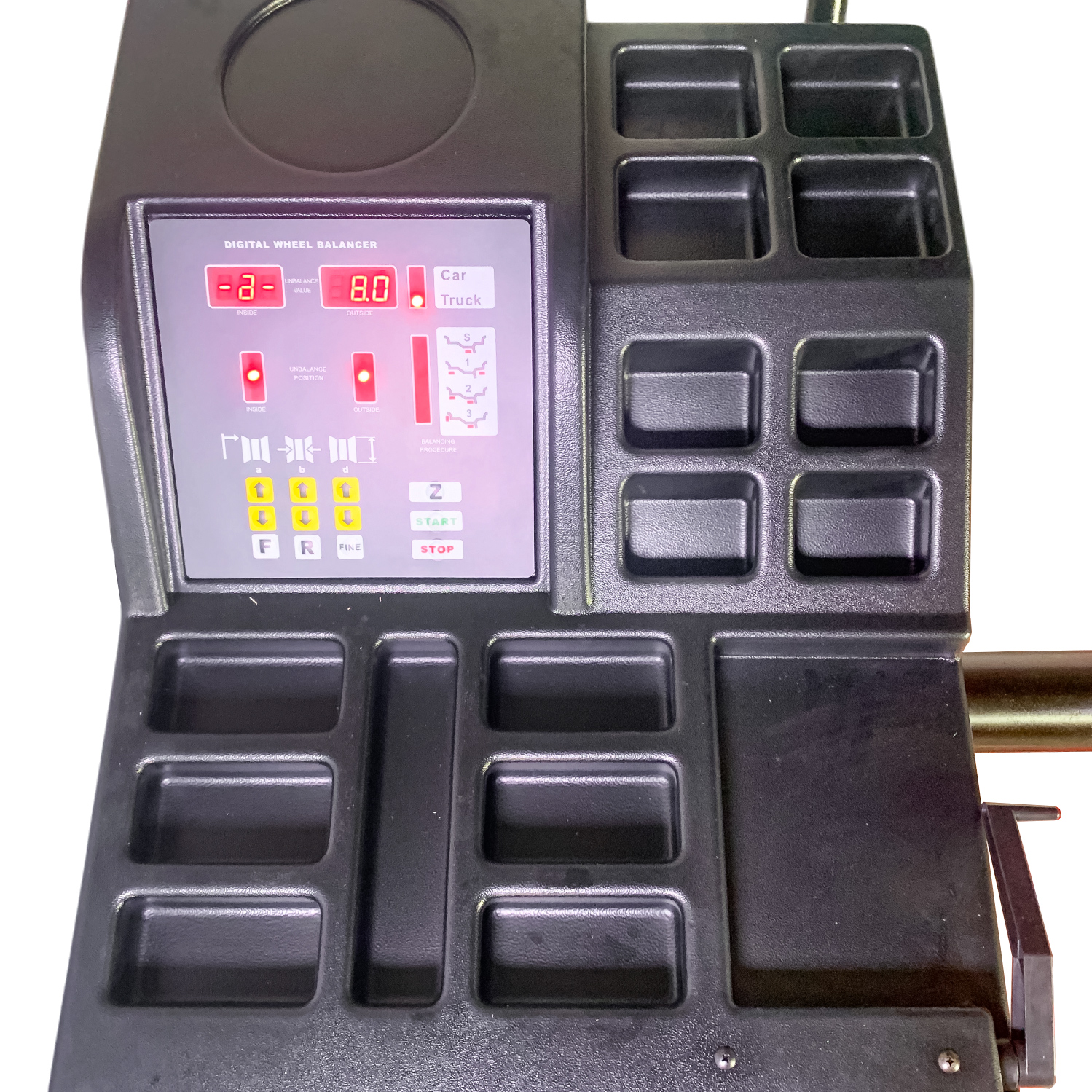

- Digital LED display with intuitive layout
Technical data
- Rim diameter mm/" 252-610/10-24
- Rim thickness mm/" 40-510/1.5-20
- Maximum tire weight kg 65
- Maximum cone diameter mm 135
- Balanceing speed rpm 200
- Precision g 1
- Readout time sec 8
- Motor capacity kW 0.2
- Voltage V 230
- Weight kg 101.00
- Dimensions (LxWxH) mm 960x760 x1250
Scope of delivery
- On pallet
- Set of 7 cones for clamping various types of rims (axle bore 40-310 mm)
- Quick-release clamp, for clamping the wheels onto the axle
- Wheel weight pliers for applying weights
- Calibration weight of 100 grams
