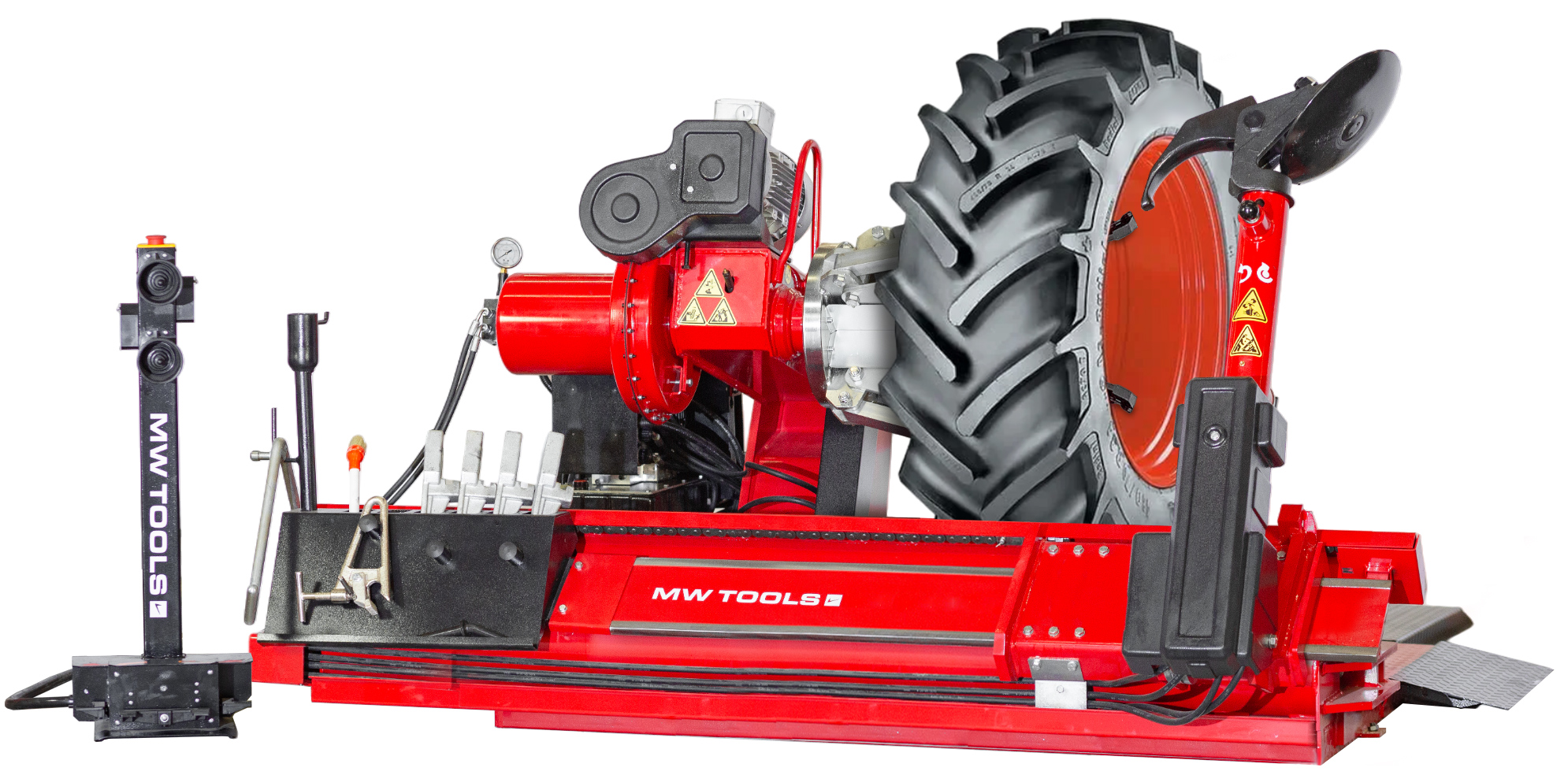

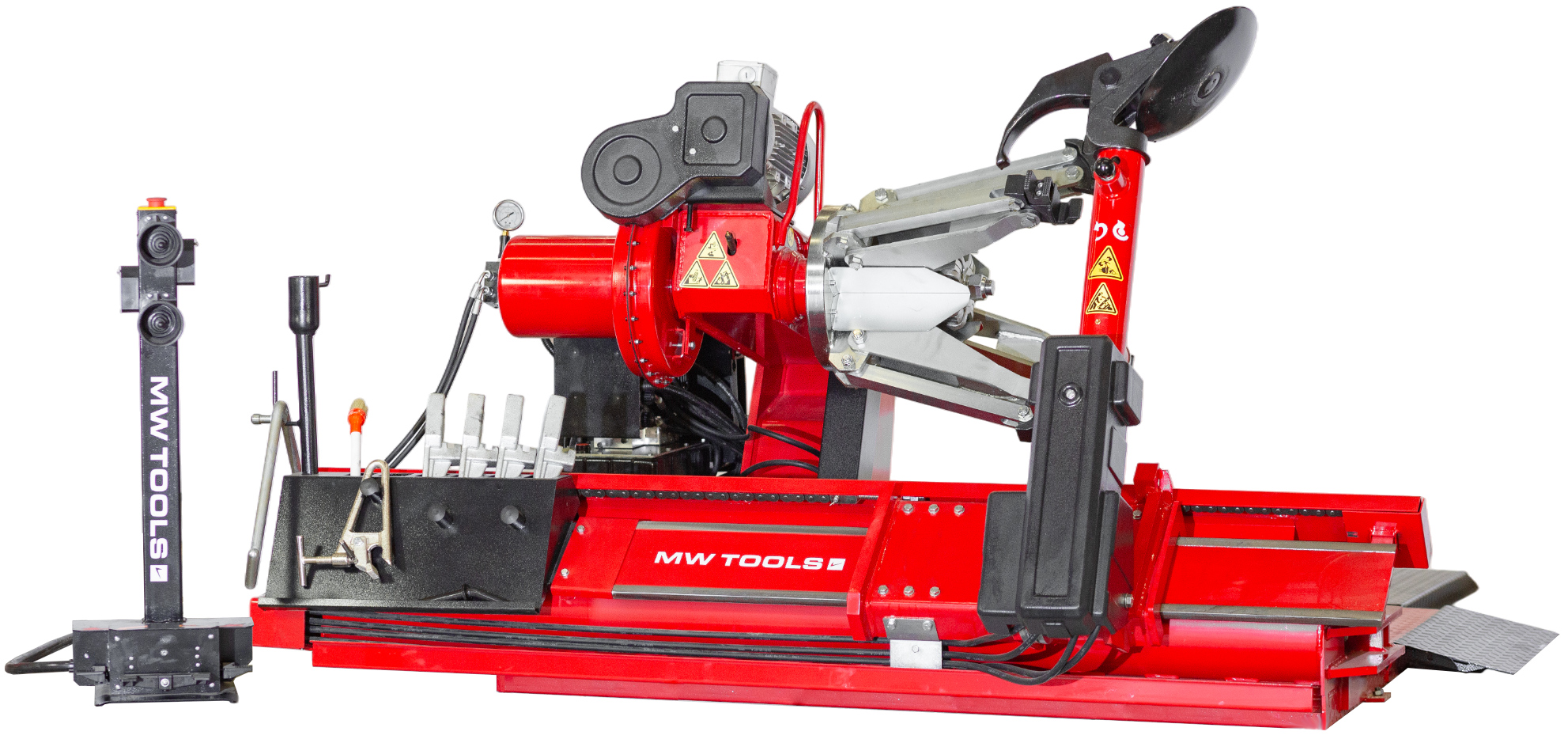

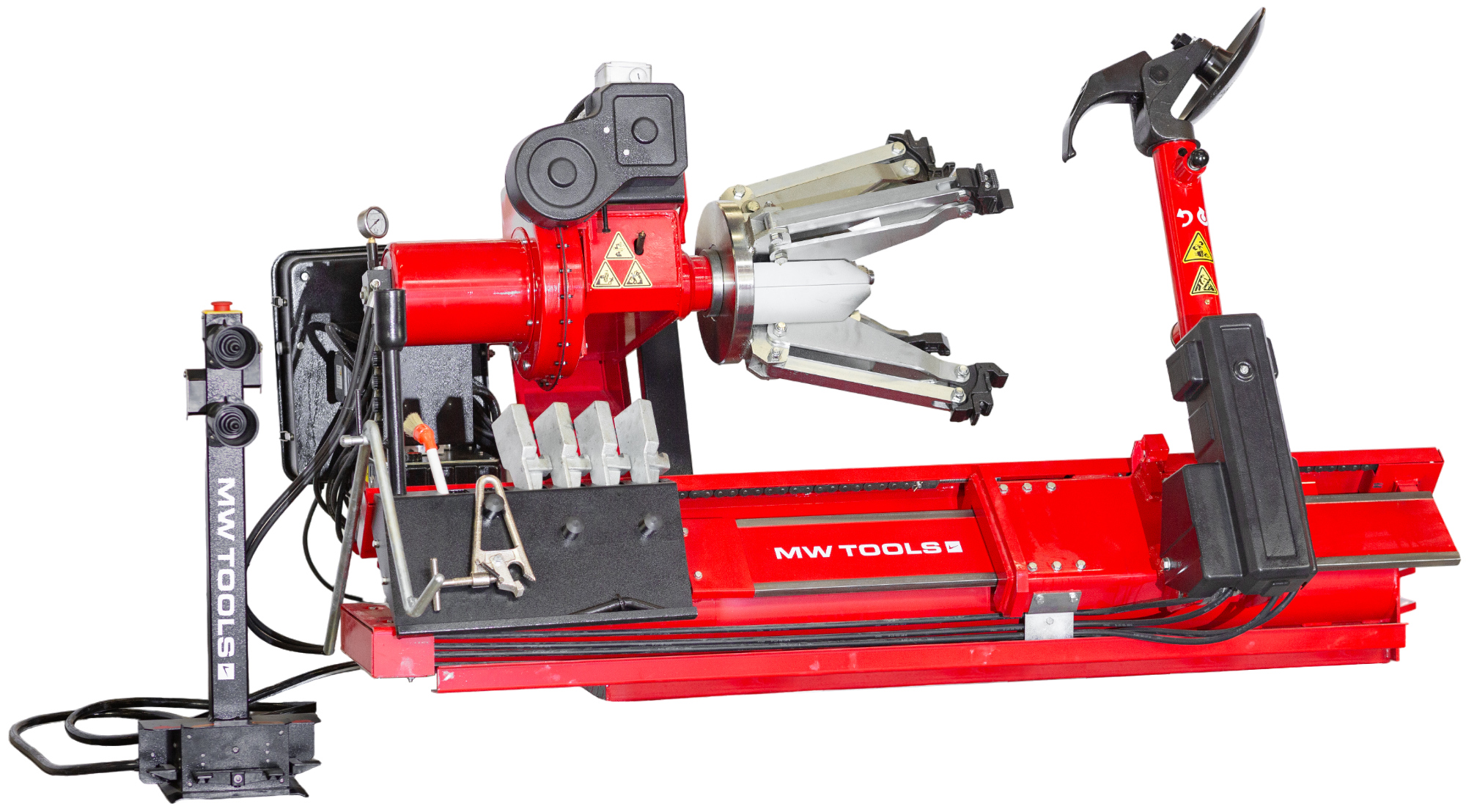

Metal Works BT950HP Heavy duty truck tire changer 56" 2200kg 2-speed
Special Features
- Heavy duty truck tire changer for tires 14-56 inches.
- Hydraulic tire changer for changing tubeless and tubeless steel and aluminum rims and tires of heavy machinery such as tractors, agricultural equipment, trucks, trailers, construction machinery, earthmoving equipment, buses, …
- 3x400V voltage, no compressed air required
- 2 motors: hydraulic pump motor 4kW, rotary motor 3kW

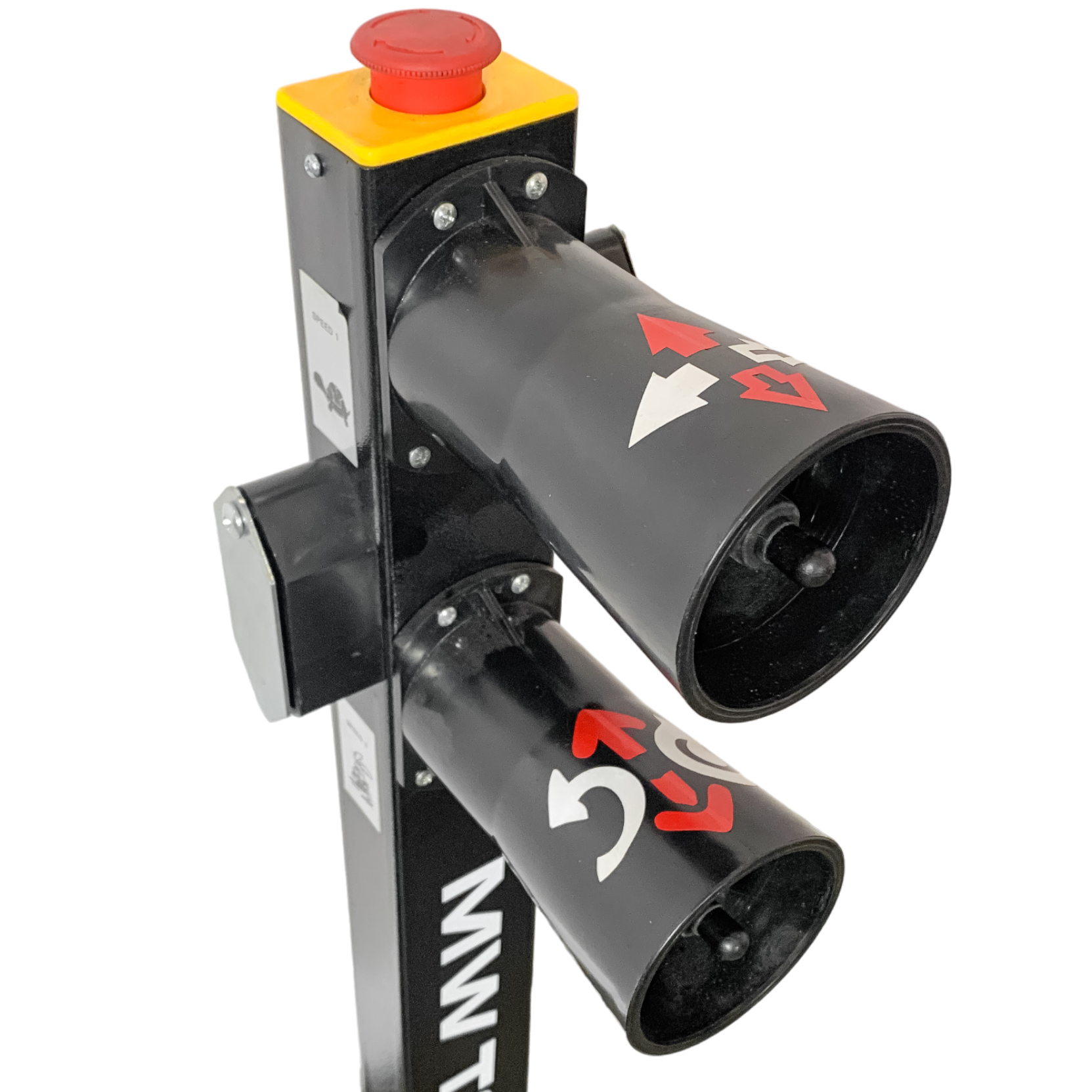

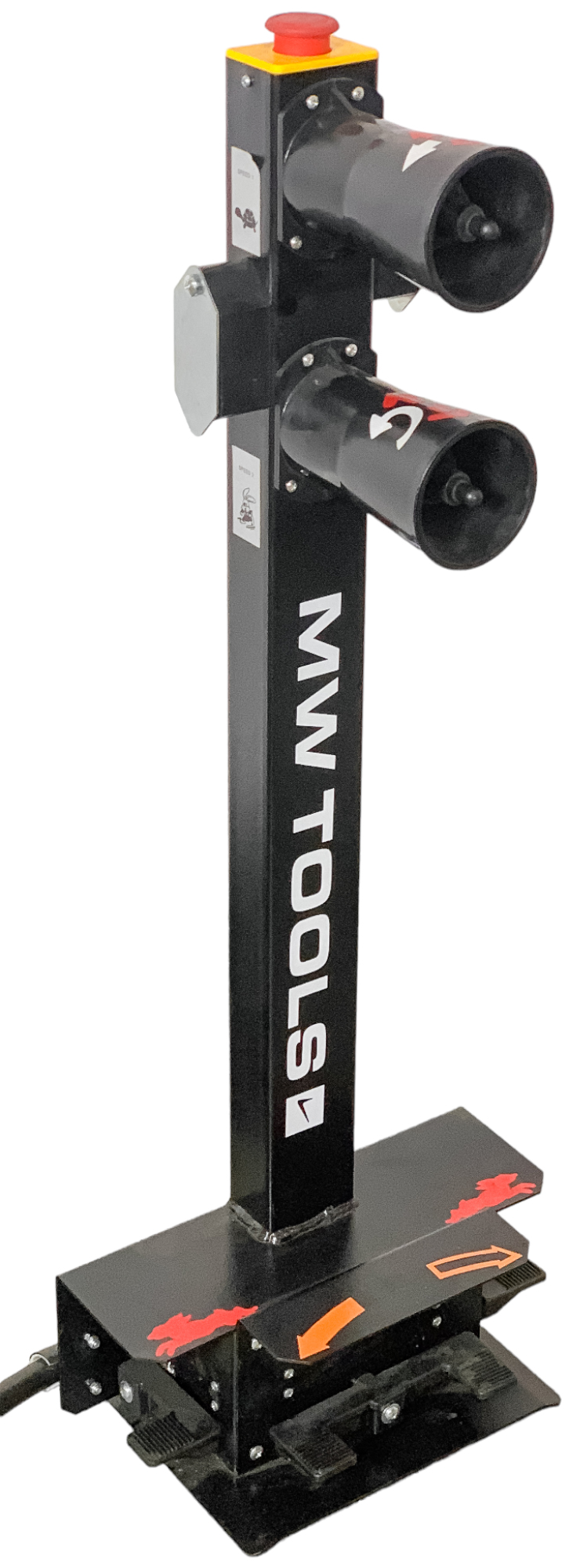

- Separate control unit with 2 joysticks and pedals. 2 meter cable to the machine.
- Central lifting eye for easy mounting
- Operating temperature: 5 – 40°C
- Minimum required floor space in the Workshop: 2442mm x 2030mm
Advantages
- Automatically rotating mounting head with 2 mounting speeds
- Wheels up to 2200 kg
- Wheel diameter up to 2500 mm, wheel width 1200mm
- Tyre size 14” – 56”
- Dual motor
- Mount/dismount large tires without heavy manual handling (fully hydraulic)
5 hydraulic functions
- All operations are controlled from the control panel
- Move the base plate forward/backward and up/down to position the tire. Even heavy tires are positioned effortlessly
- Clamping the rim via the 4 jaws
- Position mounting head up/down
- Rotate tire For mounting/dismounting, at 2 speeds: 4 and 8 rpm. Operated via the foot pedal on the control panel.
Technical data
- Internal clamping inch 14-56
- Maximum tire diameter mm/" 2500
- Maximum tire thickness mm/" 1200
- Pressure V 3x400
- Noise level dB(A) 75
- Weight kg 1175.00
- Dimensions (LxWxH) mm 1230x760x980
Scope of delivery
- On pallet
- Tyre removal wrench
- Steel rim clamp and rim guide
- Pre-filled with 20 liters of HYDRO46 hydraulic oil (790030046) . The machine works with Perse hydraulic oils such as type 46 or type 32.
- 3 meter power cable with 16A plug 3x400V 5P
- Grease gun for lubricating the base plate and head
