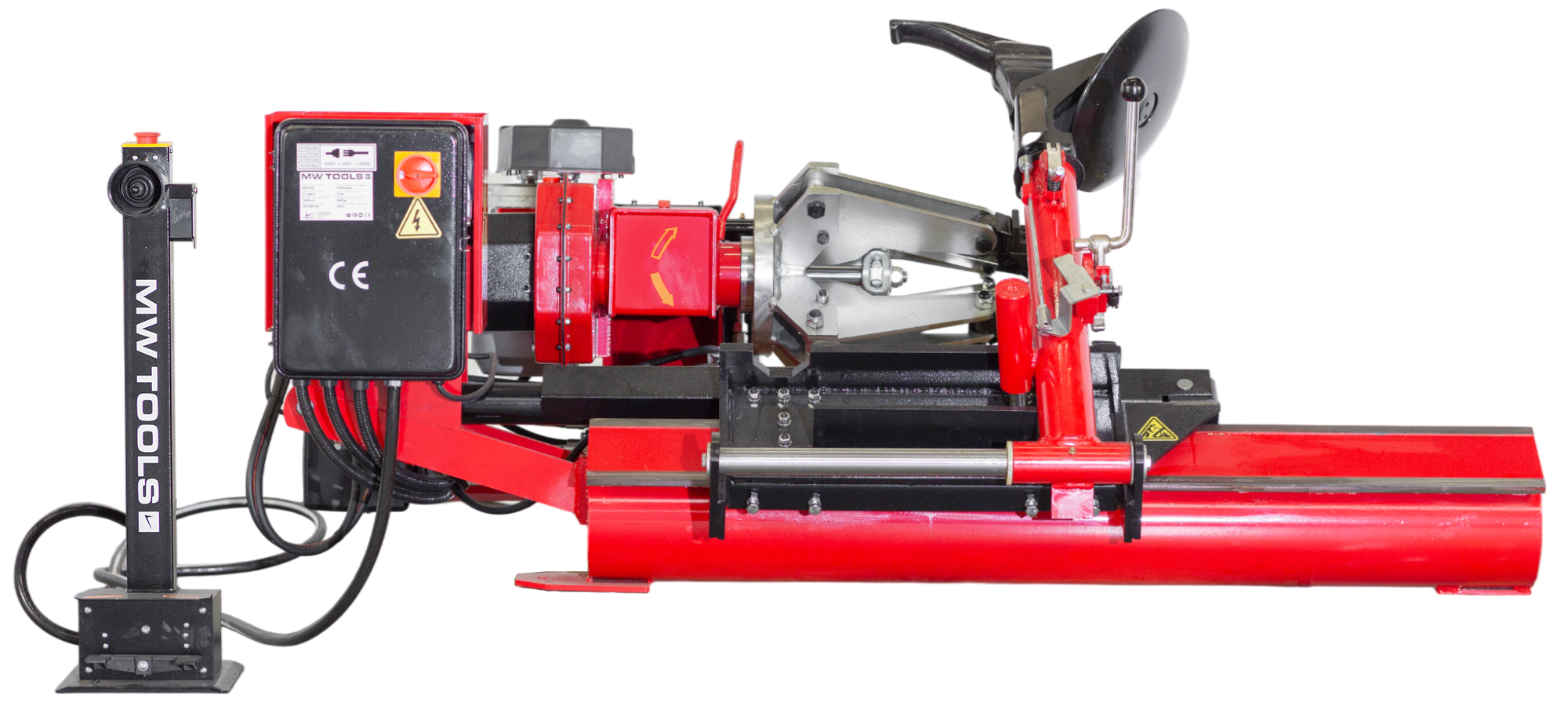

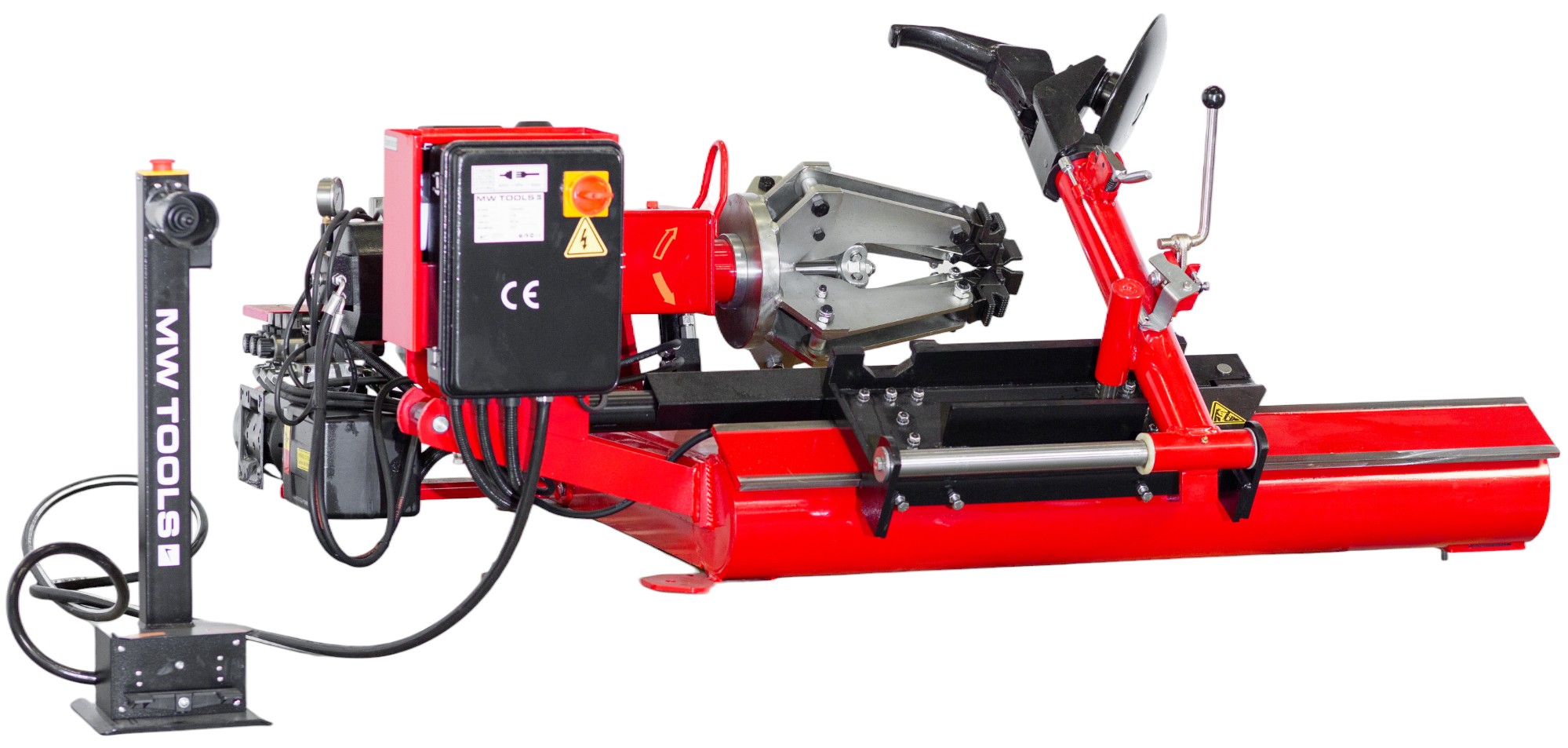

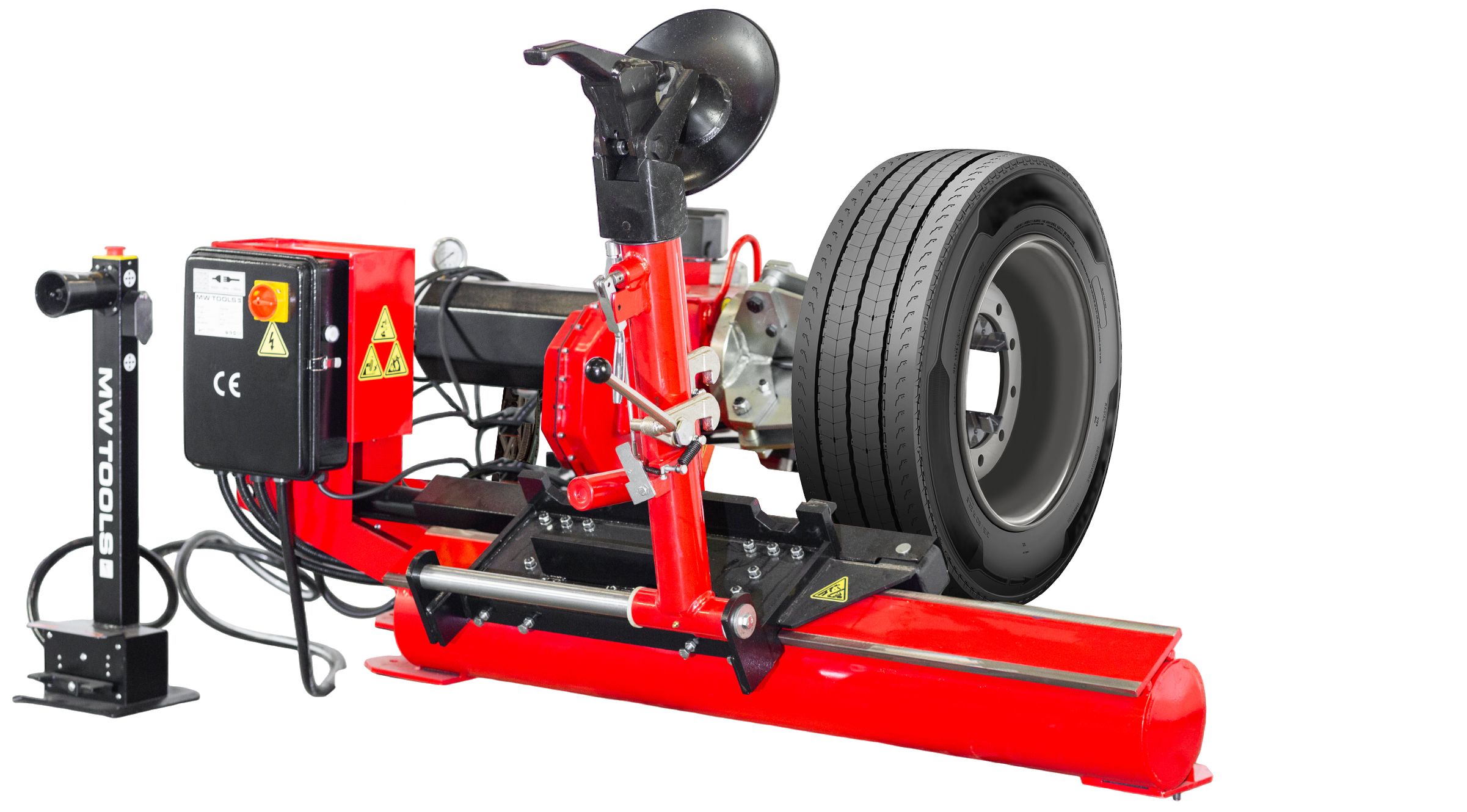

Metal Works BT750HP Heavy duty truck tire changer 26" 500kg 2-speed
Special Features
- Heavy duty truck tire changer for tires 14-26 inches.
- Hydraulic tire changer for changing tubeless and tubeless steel and aluminum rims and tires of heavy machinery such as tractors, agricultural equipment, trucks, trailers, construction machinery, earthmoving equipment, buses, …
- 3x400V voltage, no compressed air required
- 2 motors: hydraulic pump motor 1.5kW, rotary motor 2.5kW

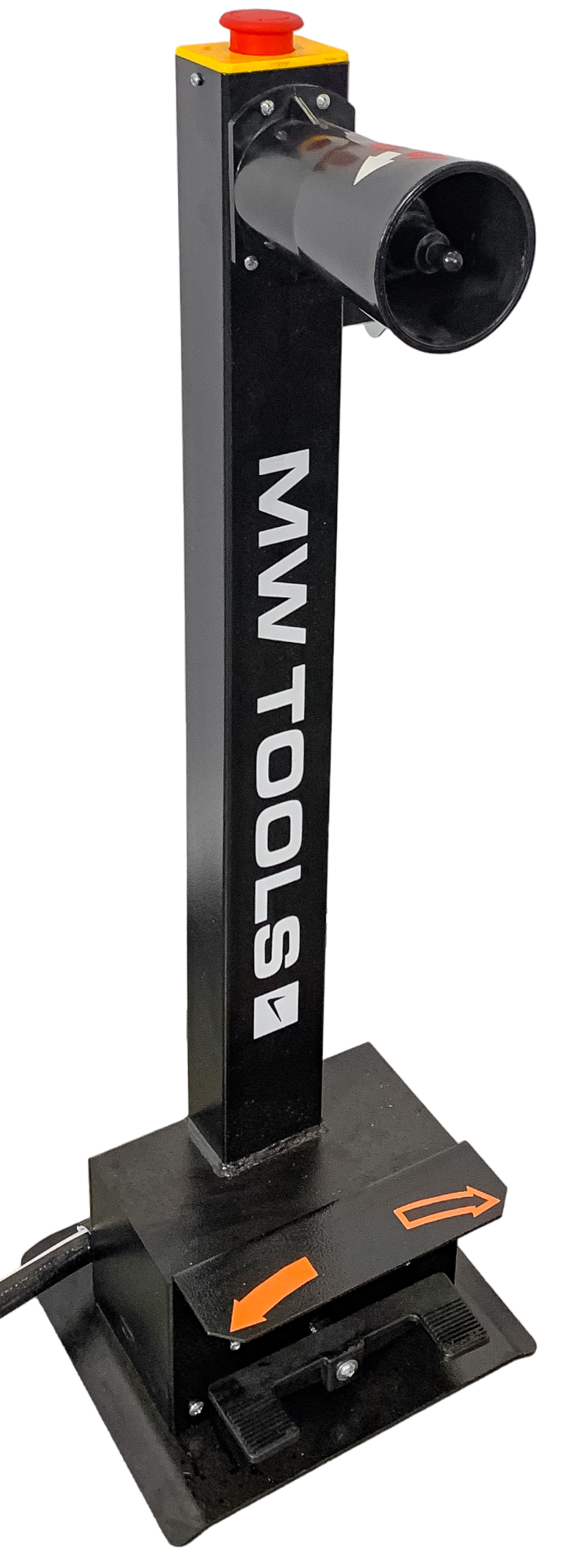

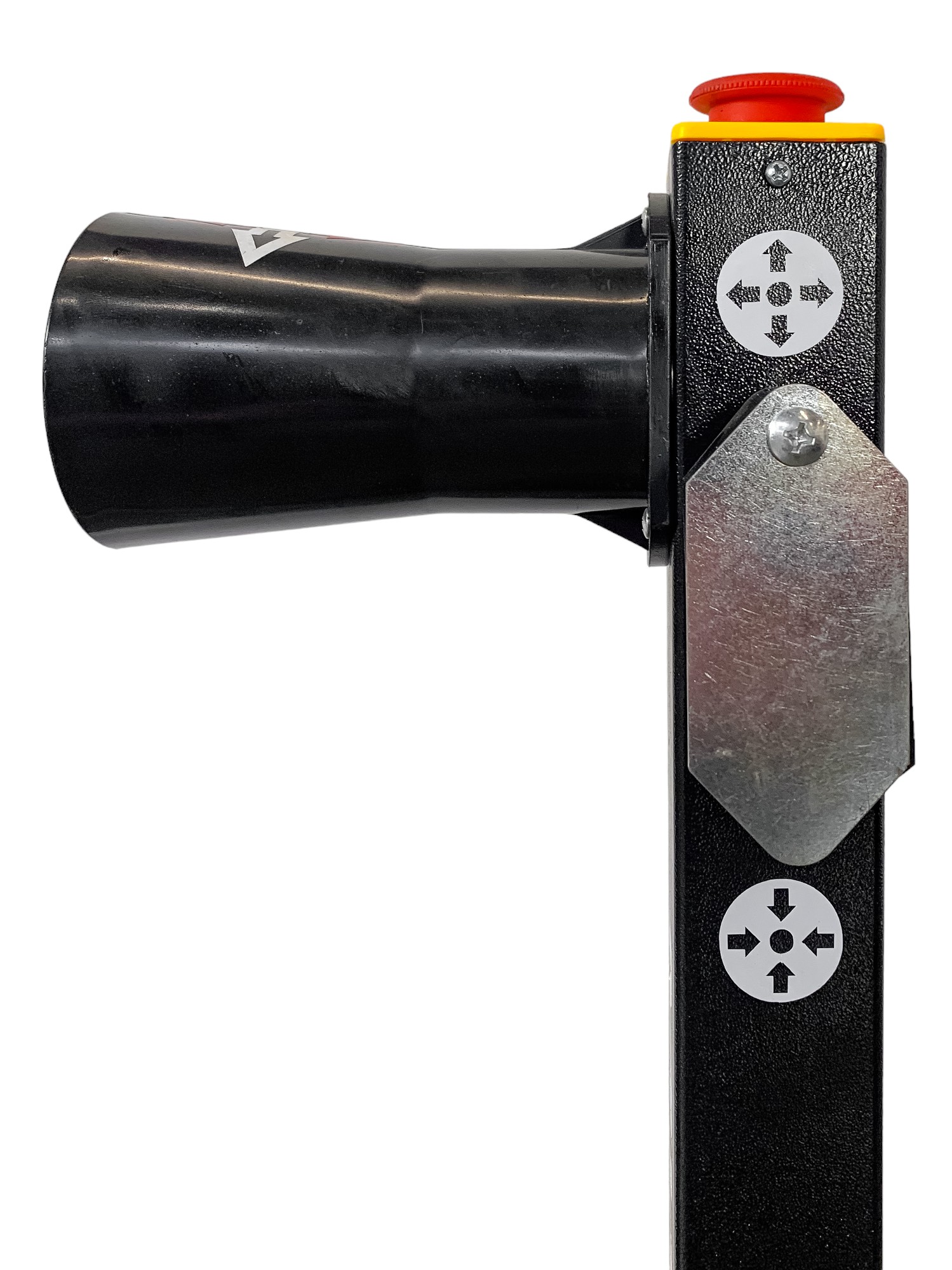

- Separate control unit with 2 joysticks and pedals. 2 meter cable to the machine.
- Central lifting eye for easy mounting
- Operating temperature: 5 – 40°C
- Minimum requirement Workshop floor area: 1950x1600mm
5 hydraulic functions
- All operations are performed from the control panel
- Move the base plate forward/backward and up/down for positioning the tire. Even heavy tires are positioned without difficulty
- Clamping the rim using the 4 claws
- Position the mounting head up/down
- Rotate the tire for mounting/dismounting, at 2 speeds: 4 and 8 rpm. Operated via the foot pedal on the control panel.
Technical data
- Voltage V 3x400
- Internal clamping inch 14-26
- Maximum tire diameter mm/" 1600
- Maximum tire thickness mm/" 780
- Pressure V 3x400
- Noise level dB(A) 75
- Weight kg 562.00
- Dimensions (LxWxH) mm 1230x760 x980
Scope of delivery
- On pallet
- Tyre removal wrench
- Steel rim clamp and rim guide
- Pre-filled with 8 liters of hydraulic oil HYDRO46 (790030046) . The machine works with Perse hydraulic oils such as type 46 or type 32.
- 3 meter power cable with 16A plug 3x400V 5P
- Grease gun for lubricating the base plate and head
