Metal Works BT700H Tire Changer Van Truck 3x400V 26"
Special Features
- 26" tire mounting machine for vans, buses, trucks, construction machinery, tractors, and others with tire diameters up to 1400 mm.
- With its hydraulic rotating function, the machine can also provide support during other work on large tires, such as inspection, cleaning, and retreading.
- Vertical, compact setup, also suitable for smaller spaces
- Tires are first clamped vertically sideways and then hydraulically lifted until they lie horizontally.
- Fully hydraulic operation of tire loading/unloading, wheel clamping, mounting/dismounting, positioning of the mounting head, and the auxiliary arm
- Internal clamping of rims with diameters from 19" to 26"
- Tyre width 460 mm (18")
- Tyre diameter up to 1400 mm (55")

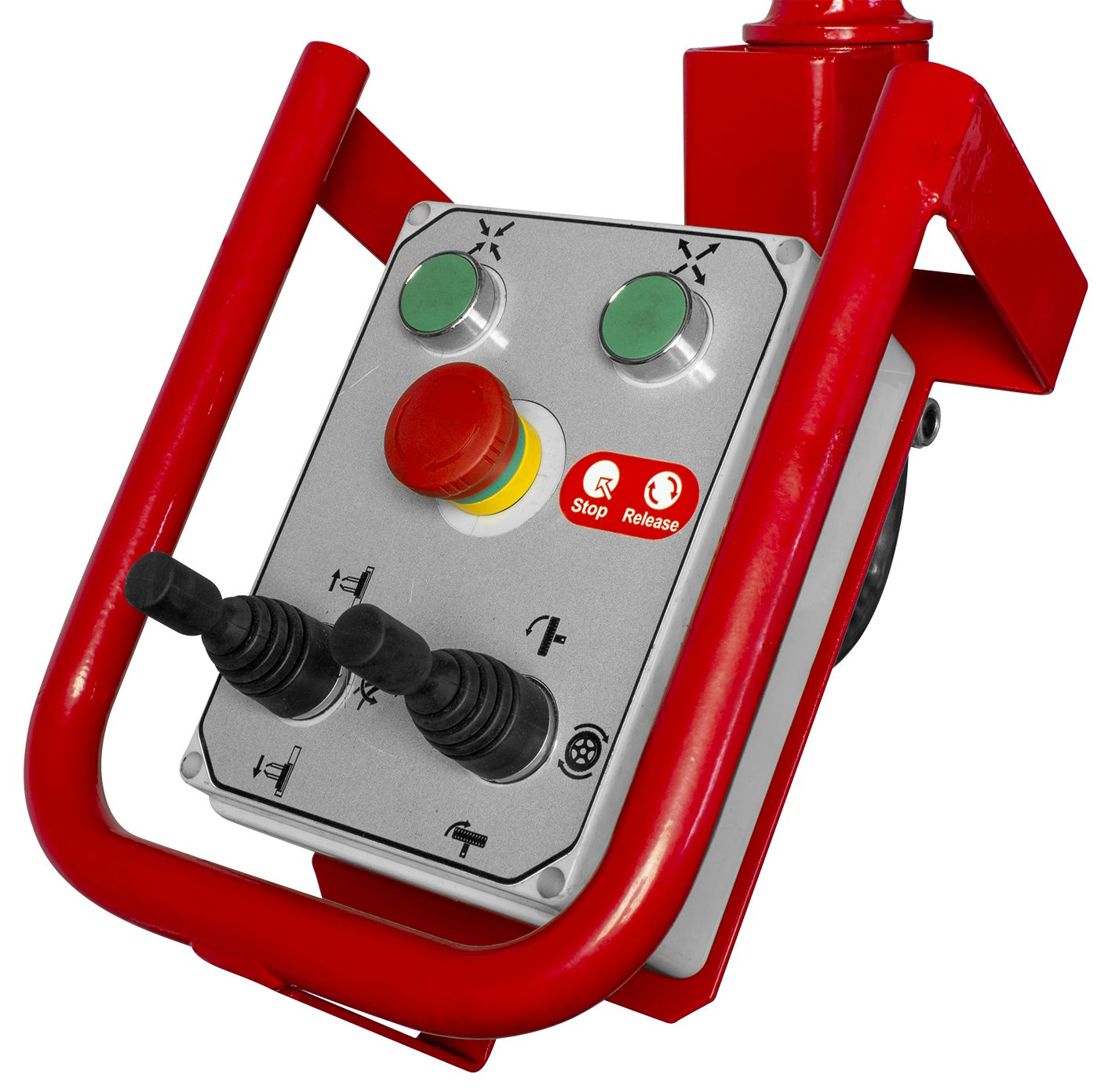

- Rotatable control console with clear layout of functions: wheel clamp (open/closed), tilting head (up/down), rotation (left/right), mounting head (inward/outward, up/down)

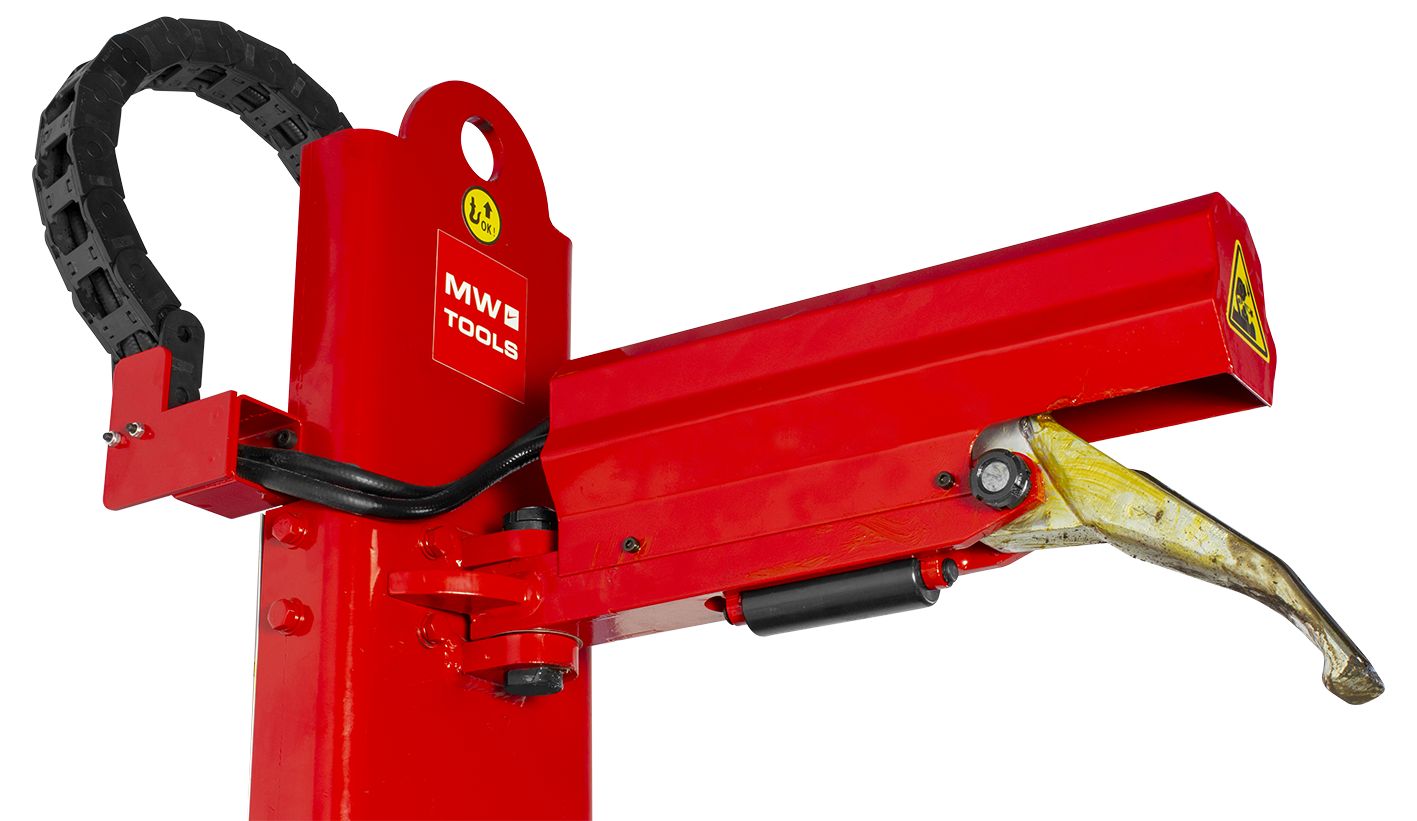

- Mounting arm made of resistant polymer plastic, with good sliding properties that significantly reduce resistance during mounting and dismounting
- Adjustable angle of the mounting head, depending on the position and thickness of the tires. Prevents tire damage
- Wheel pressure rollers compatible with most common tires
- Reversible rotation direction of the hydraulic motor
Technical data
- Voltage V 3 x 400
- Clapping table inch 19-26
- Maximum tire diameter mm/" 1400
- Maximum tire thickness mm/" 460
- Motor capacity kW 3
- Working pressure bar 10
- Noise level dB(A) 70
- Maximum tire weight kg 350
- Weight kg 410.00
- Dimensions (LxWxH) mm 1200x1280 x1600
Scope of delivery
- On pallet
- Tires disassembly key
- Brush and 5 kg tire grease
- Rim clamp
