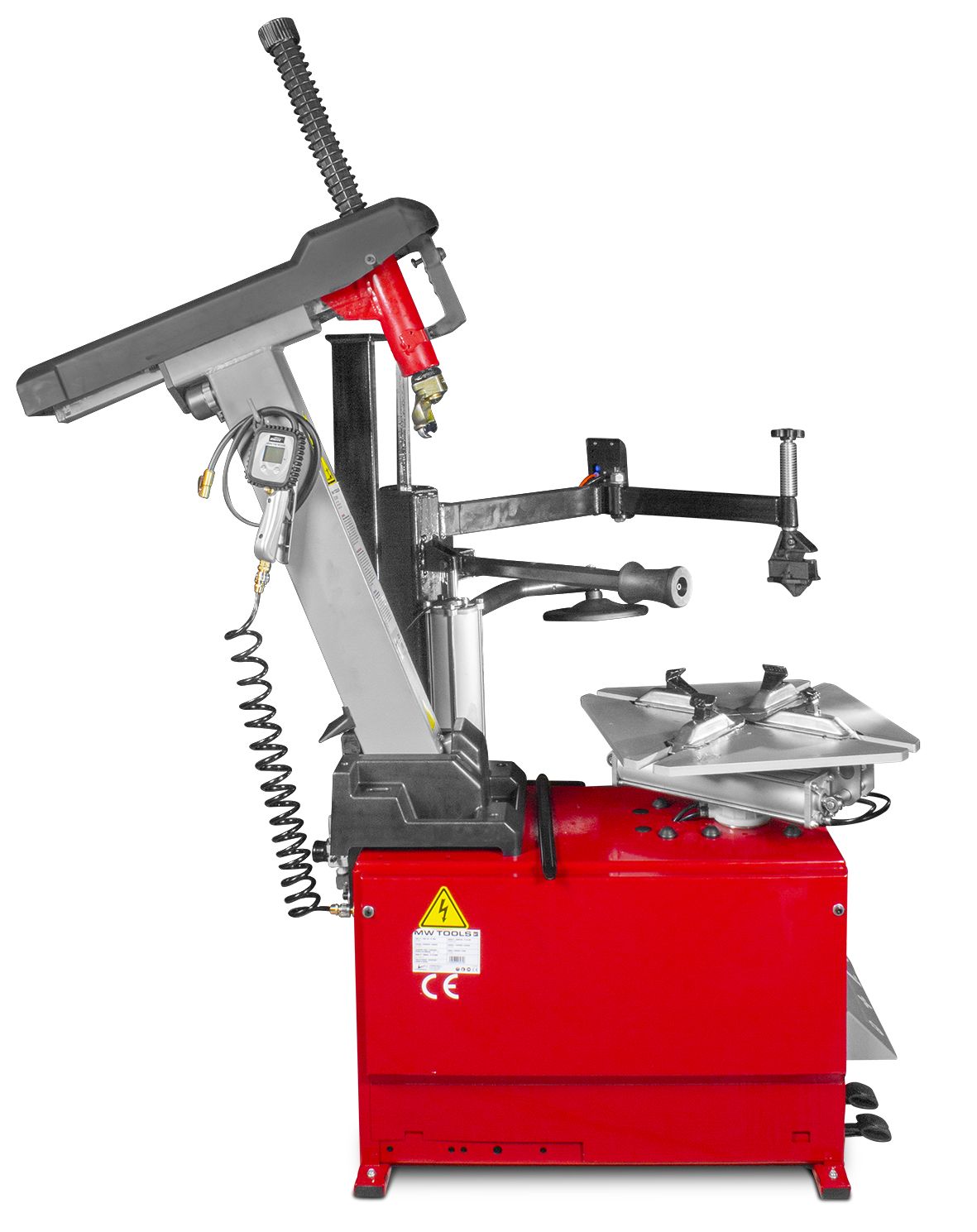

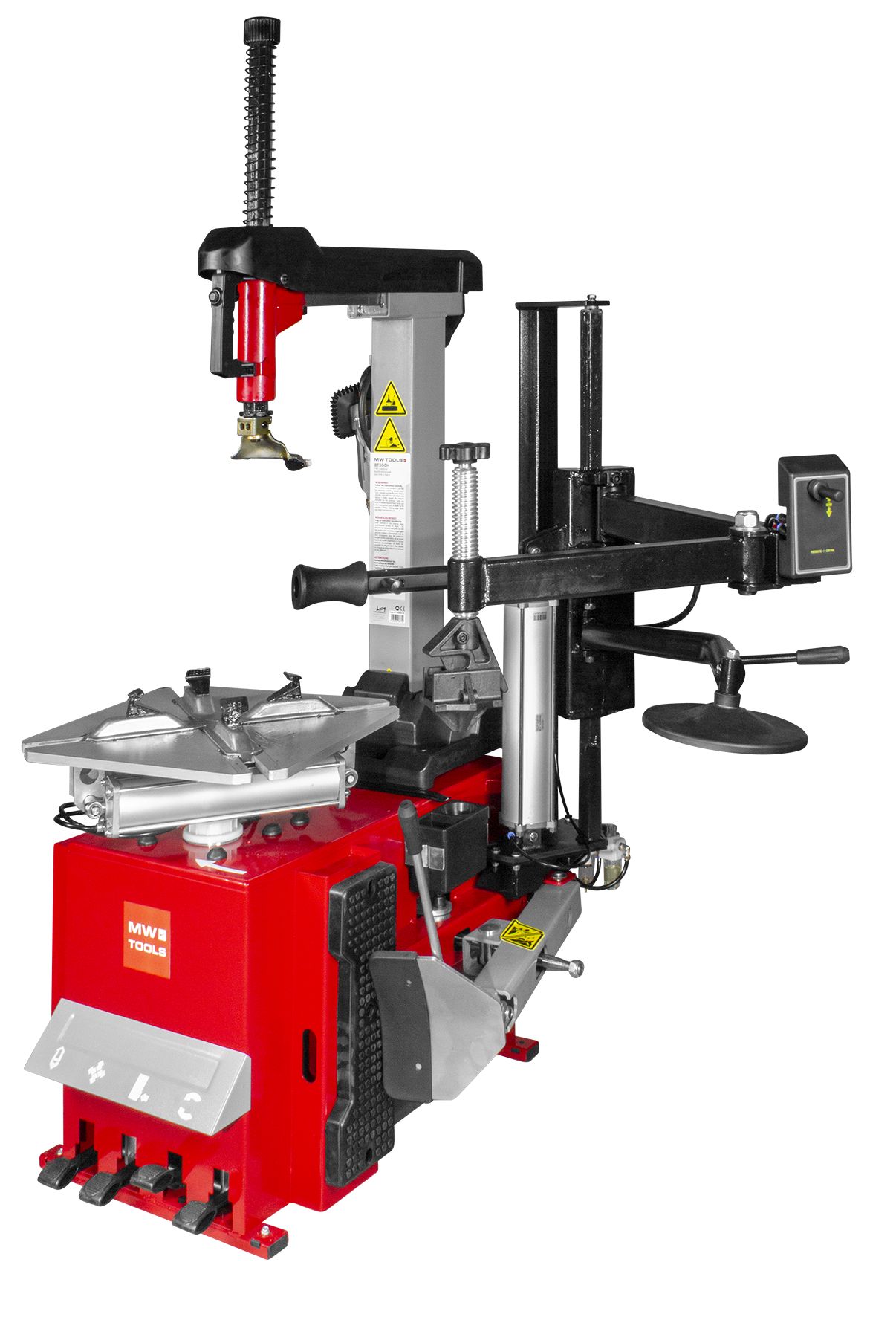

Metal Works BT300H Tire Changer Tilting Column with Auxiliary Arm 3x400V 24"
Special Features
- Tyre mounting machine with tilting arm and pneumatic set of auxiliary arms for run-flat tires, low-profile tires, and tires with hard sidewalls. Suitable for car and motorcycle tires.
- Voltage 3 x 400V

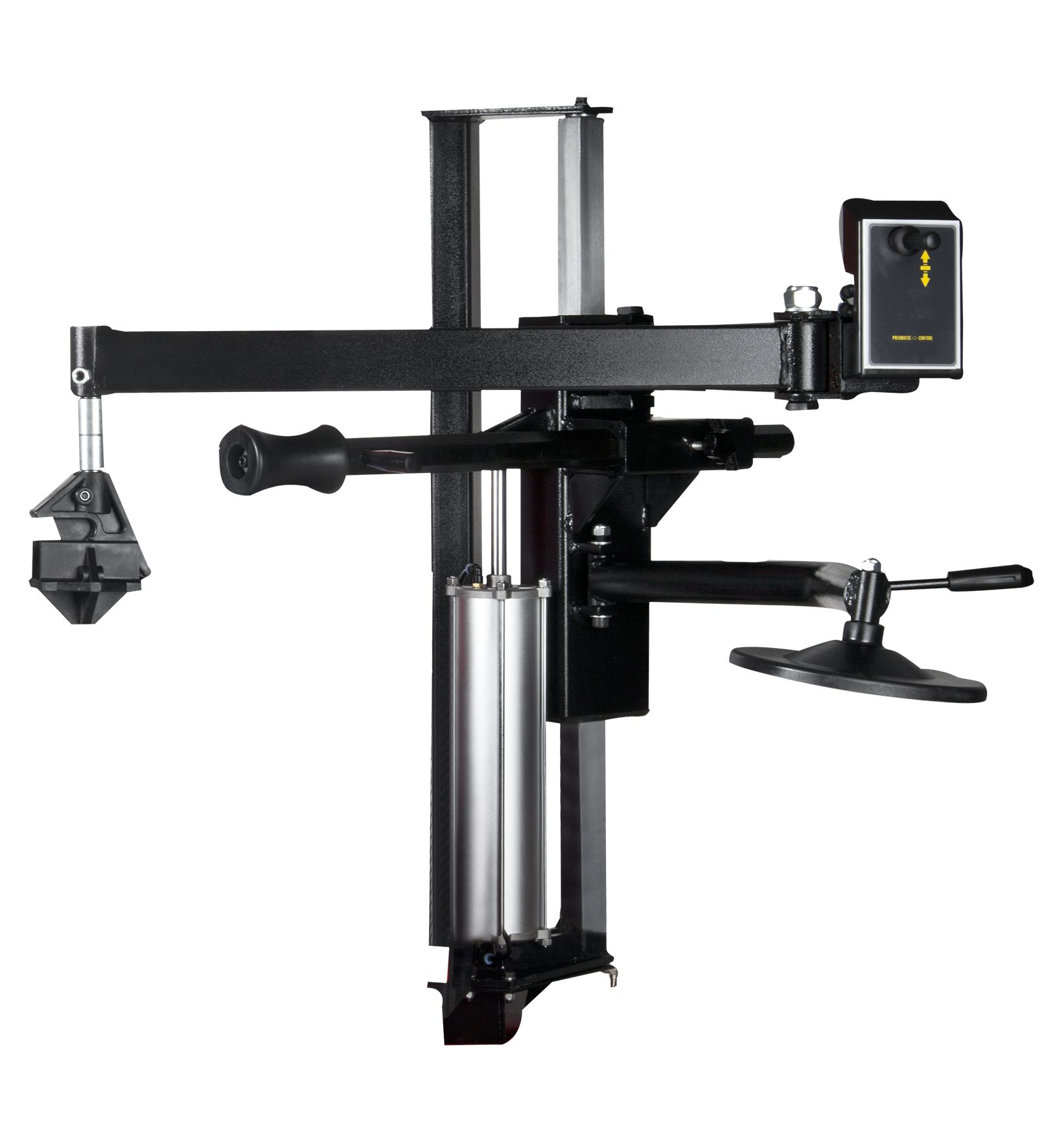

- Pneumatic multifunctional auxiliary arms for low-profile and run-flat tires assist in pressing, lifting, and securing the tires
- Rim diameter 10" to 24"
- Tyre thickness up to 355mm
- Tyre diameter up to 1000mm
- Pneumatic backward tilting column
- Pneumatic clamping of the mounting head with automatic positioning of the head on the rim. The effortless and precise positioning protection of the head prevents damage to rims and tires
- 4 foot pedals with easy operation
- Tyre pressure gauge with lever adjustable in 4 directions
- Aluminum clamping table up to 24" with heavy-duty cast iron jaws
- Internal or external clamping
Technical data
- Type 3-way pneumatic auxiliary arm
- Clamping table inch 10 - 24
- Internal clamping inch 12 - 24
- External clamping inch 10 - 21
- Maximum tire diameter mm/" 1000 - 39
- Maximum tire thickness mm/" 355 - 14
- Motor capacity kW 1.1
- Voltage V 3x400
- Working pressure bar 8
- Noise level dB(A) 75
- Weight kg 210.00
- Dimensions (LxWxH) mm 960x760 x980
Scope of delivery
- On pallet

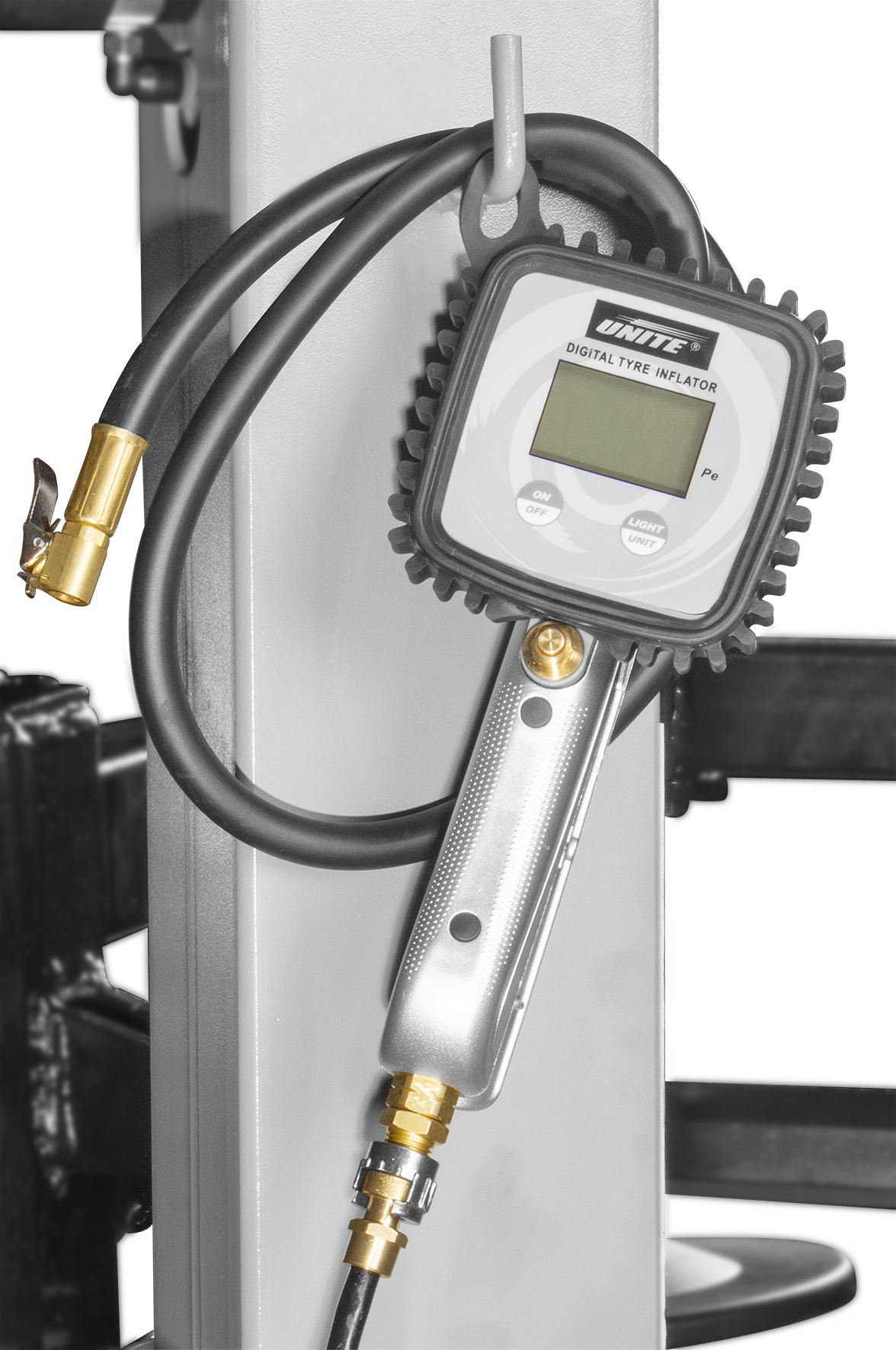

- Tyre inflator with digital pressure display
- Pressure regulator with oil mist for long service life
- Protective cover for mounting / dismounting head
- Protective cover for claws
- Protective plate for wheel press
- Tyre removal wrench
- Oil / water tank
