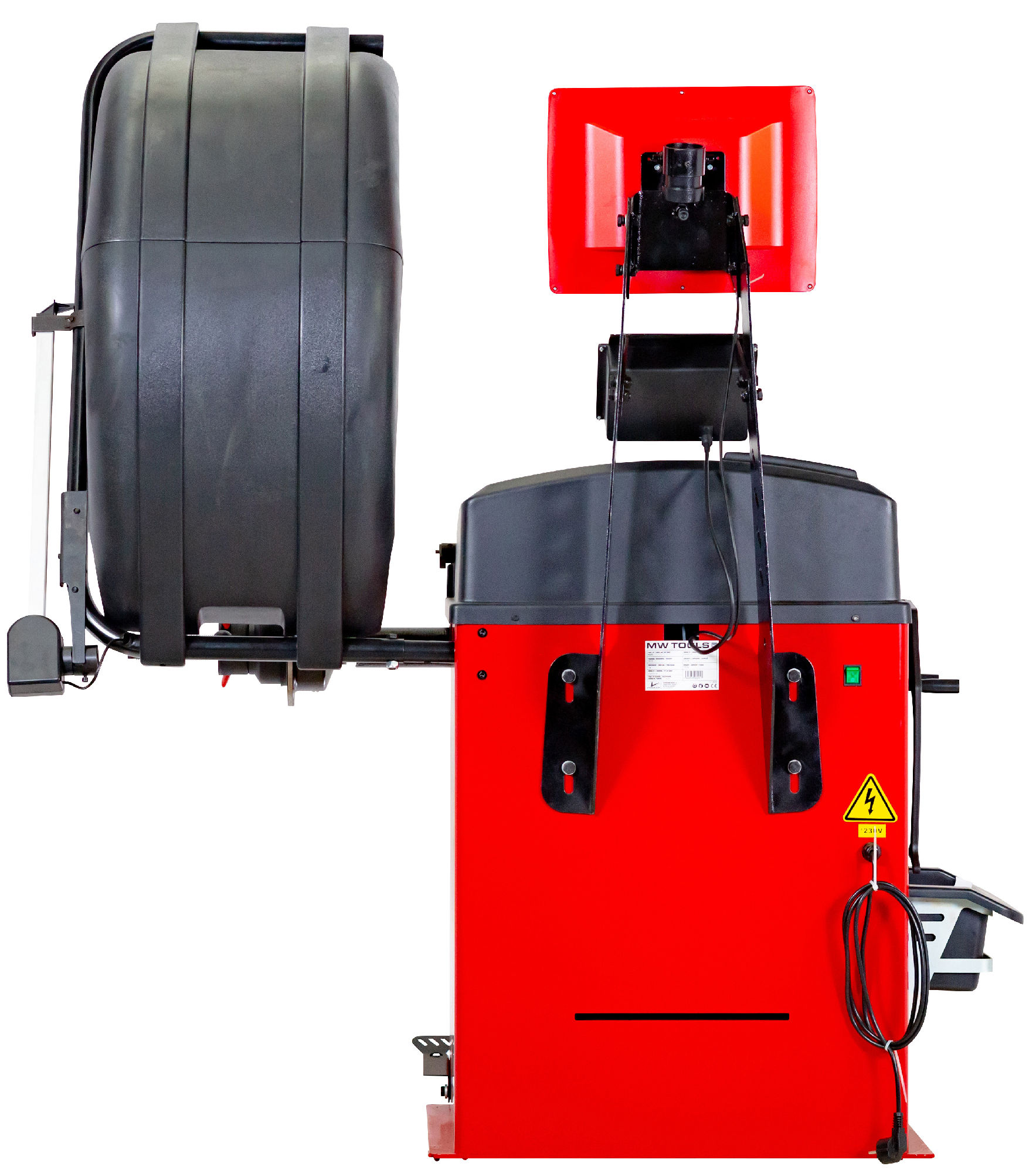

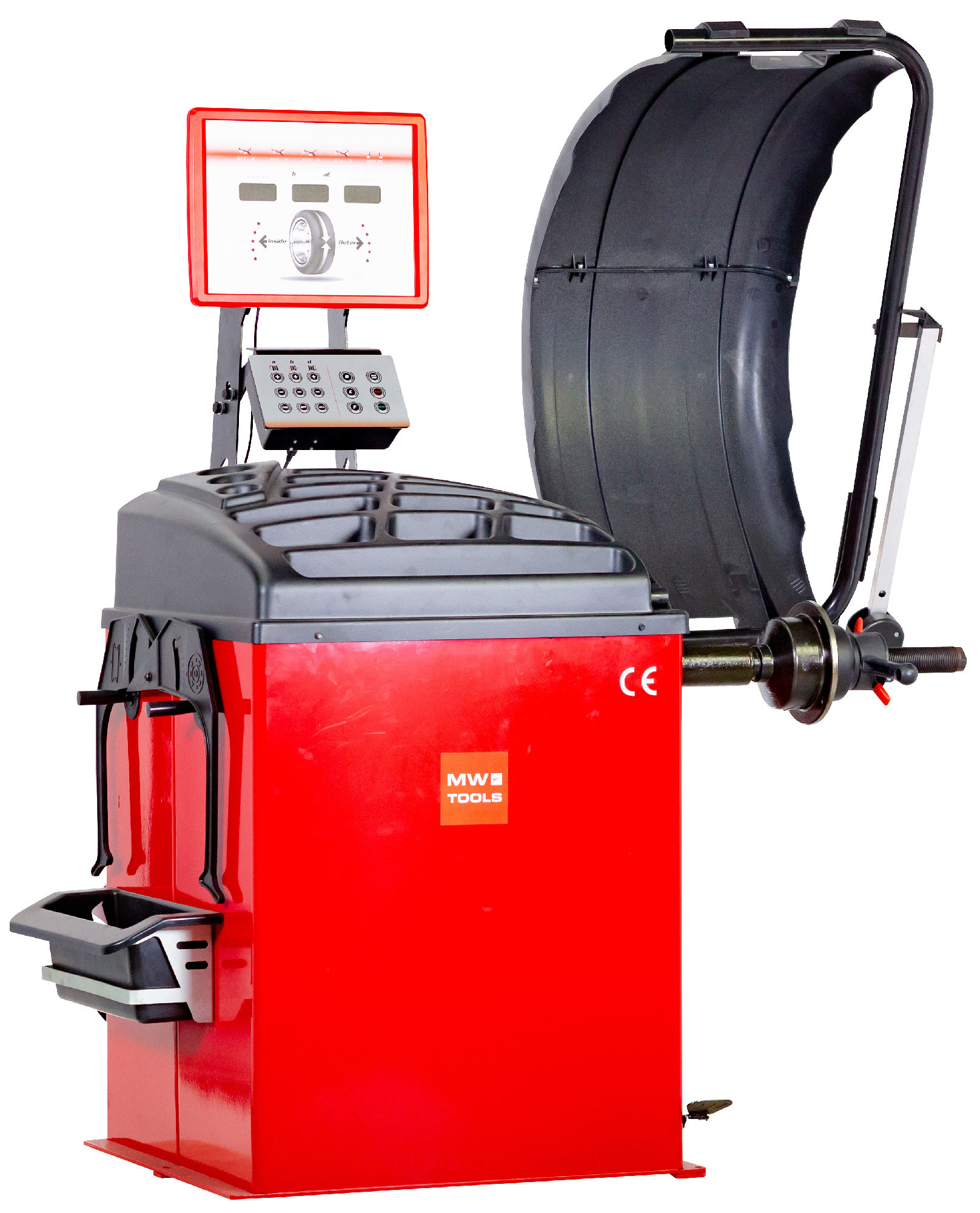

Metal Works BB350 Automatic Car Tire Balancer 230V
Special Features
- Tyre balancer 24 inch with LED display
- Automatic balancer for wheels up to 65 kg and 24 inches with 6 balancing modes.
- Digital LED display with intuitive layout
- 6 balancing modes for both steel and aluminum rims: Normal, ALU-1, ALU-2, ALU-3, ALU-S and Static. Suitable for both dynamic and static balancing (motorcycle wheels)
- Suitable for rims with a diameter of 10" to 24"
- Suitable for rims with a thickness of 1.5" - 20"
- Automatic calculation of rim width via the built-in sensor on the side of the guard
- Split-weight function for distributing the weights over 2 positions
- Long net shaft length of 230mm, for balancing all standard tires as well as wider and special wheels that do not fit on a standard balancing machine.
- Large machine frame ensures good stability and measurement results
- The maximum load capacity of 65 kg also allows for balancing very heavy and wide tires.
- The machine has a heavy curb weight of 92kg, which ensures perfect stability during balancing
- 40mm shaft with high-precision sensors, for an accurate measurement result
- Automatic Indicating the position of the weights by rotating the wheel
- Self-calibration and self-diagnosis function
- Direct indication of depth and position of the weights
- A large plastic protective cover protects the user while rotating the wheel
Technical data
- Rim diameter mm/" 252-610/10-24
- Rim thickness mm/" 40-510/1.5-20
- Maximum tire weight kg 65
- Maximum cone diameter mm 135
- Balance speed rpm 200
- Precision g 1
- Readout time sec 8
- Motor capacity kW 0.2
- Voltage V 230
- Noise level dB(A) 70
- Base dimensions mm 640 x 615
- Balance modes 6
- Weight kg 102.00
- Dimensions (lxwxh) mm 960x760 x1250
Scope of delivery
- On pallet
- Set of 4 cones for correctly clamping various types of wheels: 41 - 66 mm, 64 - 86 mm, 84 - 103 mm and 94 - 135 mm
- Wheel weight pliers for applying weights
- Quick-release clamp, for clamping the wheels onto the axle
- Rubber cap and spacer ring for clamping cones on the inside
- Rim width gauge
- Calibration weight of 100 grams
- Set of machine tools for standard machine maintenance
