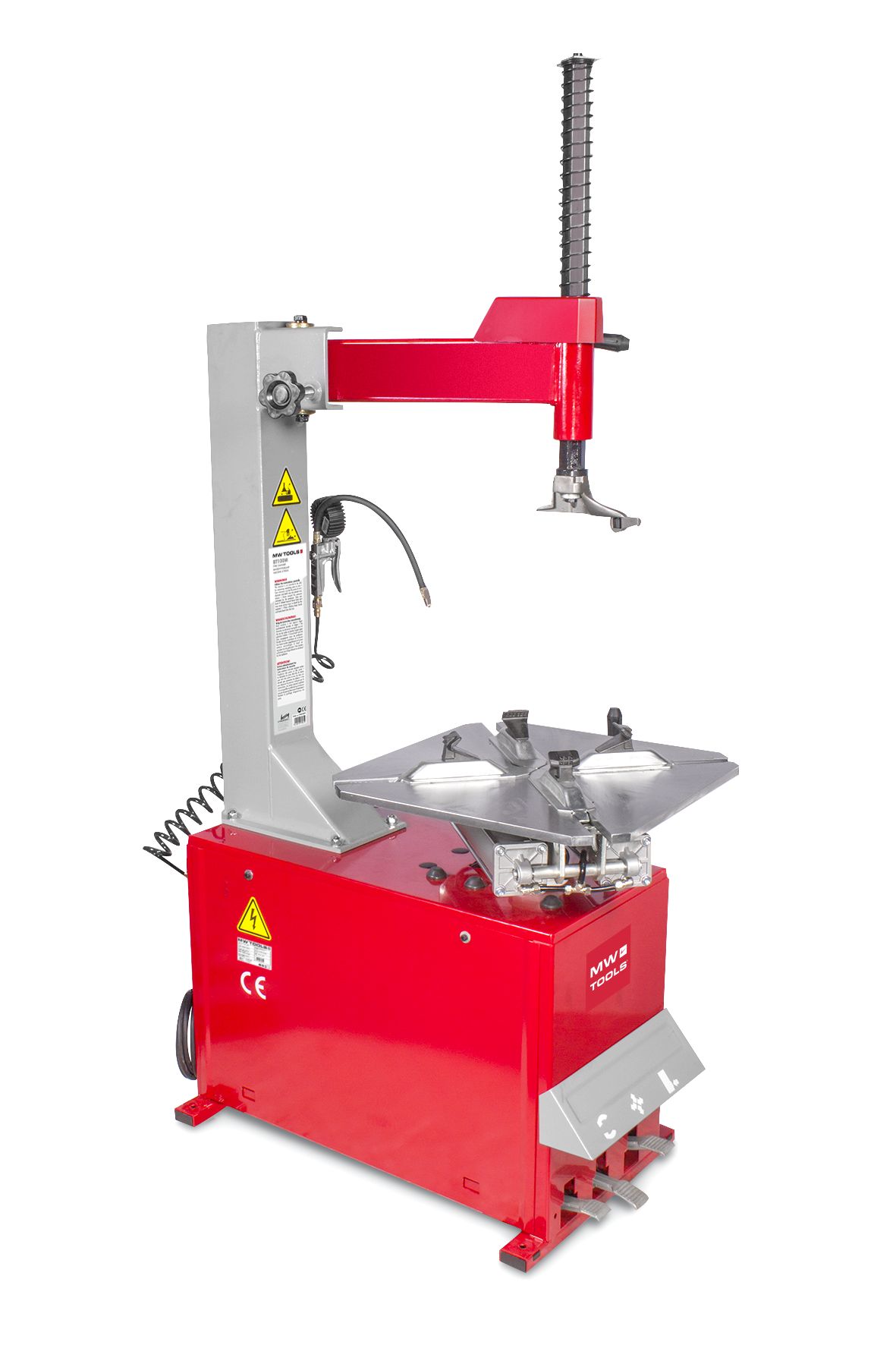

Metal Works BT100 Tire Changer 3X400V 24"
Special Features
- Tyre mounting machine for cars and vans.
- Voltage 3x400V
- Rim diameter 10" to 24"
- Tyre thickness up to 355mm
- Tyre diameter up to 1040mm
- Manual clamping of the mounting/dismounting arm
- Mounting head for both standard and low-profile tires
- 3 foot pedals for mounting arm, clamping table, and wheel press
- Wheel press with lever adjustable in 4 directions
- Aluminum clamping table up to 24" with cast iron jaws
- Internal or external clamping
Technical data
- Swing arm manual clamping
- Clamping table inch 10-24
- Internal clamping inch 12-24
- External clamping inch 10-21

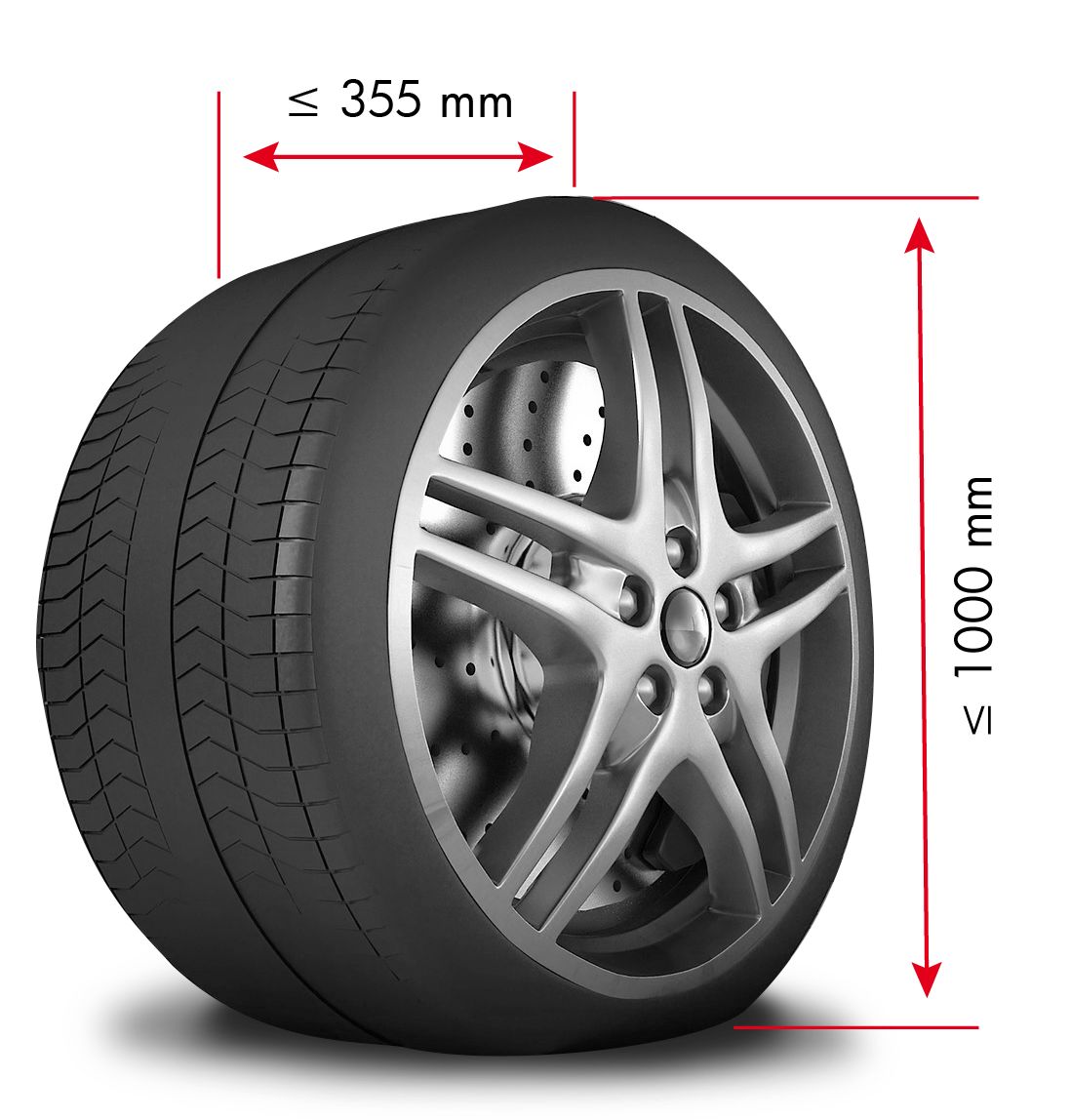

- Maximum belt diameter mm/" 1040/41
- Maximum belt thickness mm/" 355/14
- Capacity motor kW 0.75
- Voltage V 3x400
- Working pressure bar 8
- Noise level dB(A) 75
- Weight kg 168.00
- Dimensions (lxwxh) mm 960x760 x920
Scope of delivery
- On pallet
- Tire blower with digital reading of the pressure

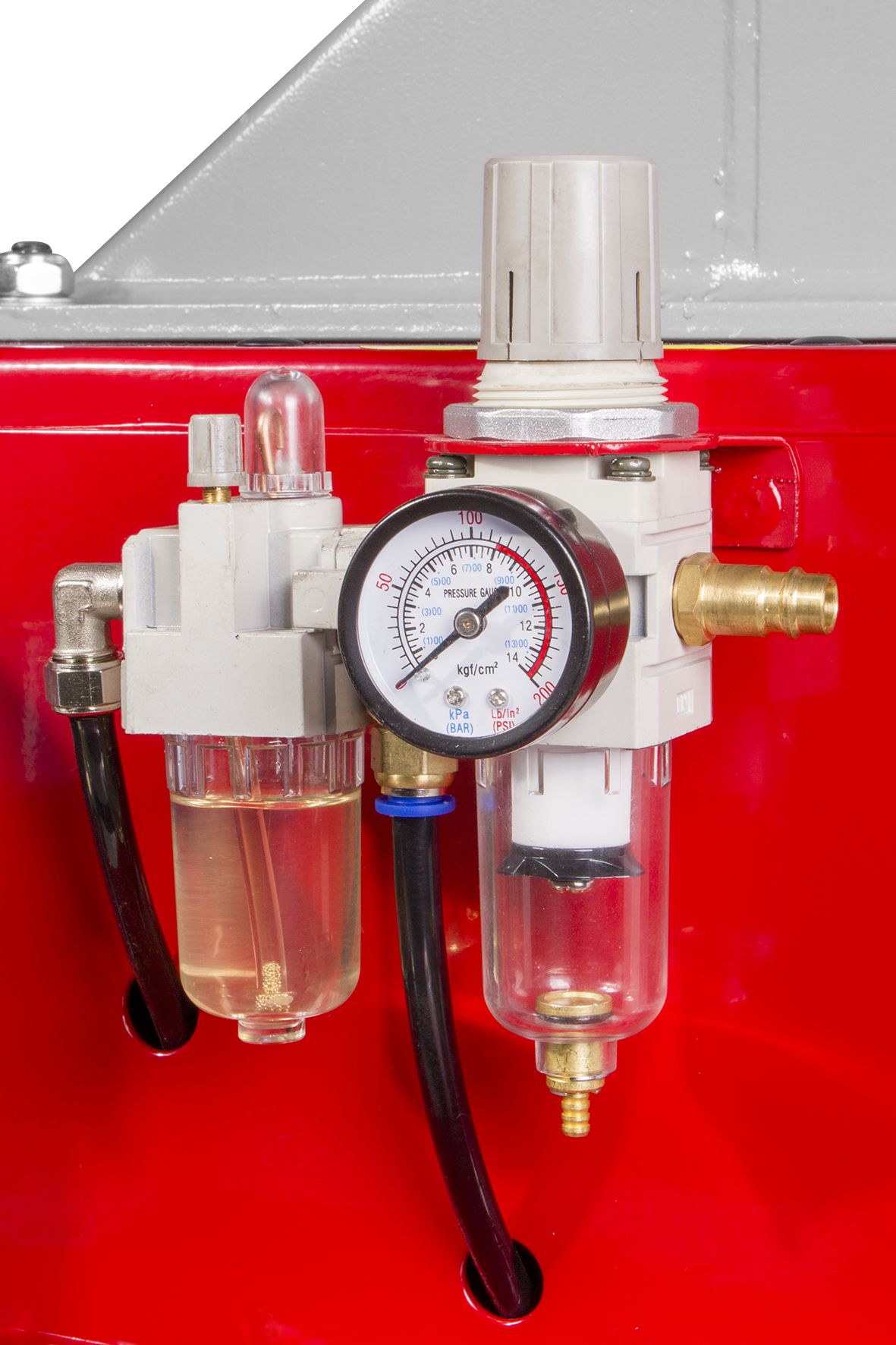

- Pressure regulator with oil mist for long service life
- Tire removal wrench
- Tire grease reservoir
- Holder for a pot of tire grease
- Holder for removal wrenches at the front of the frame
