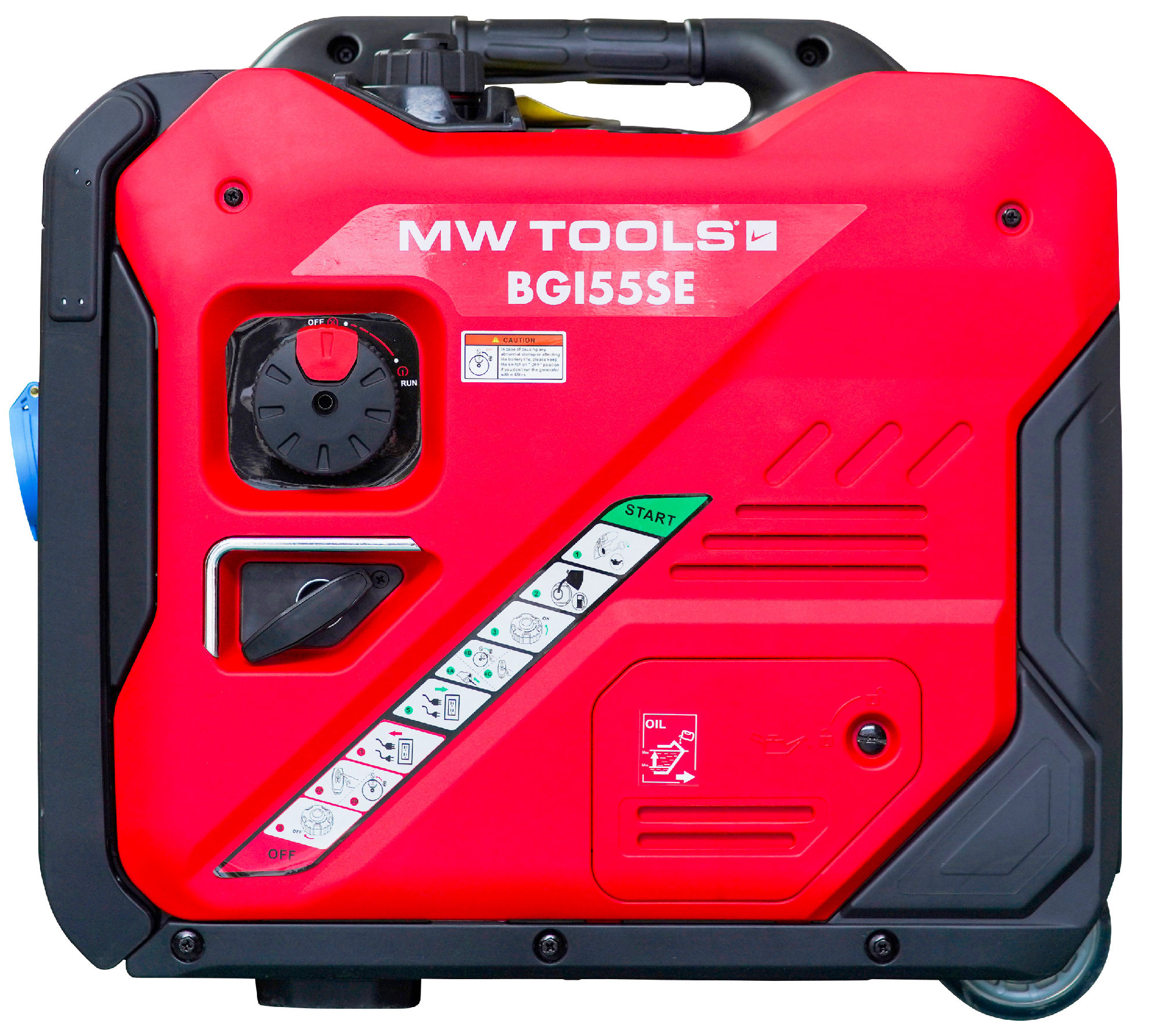

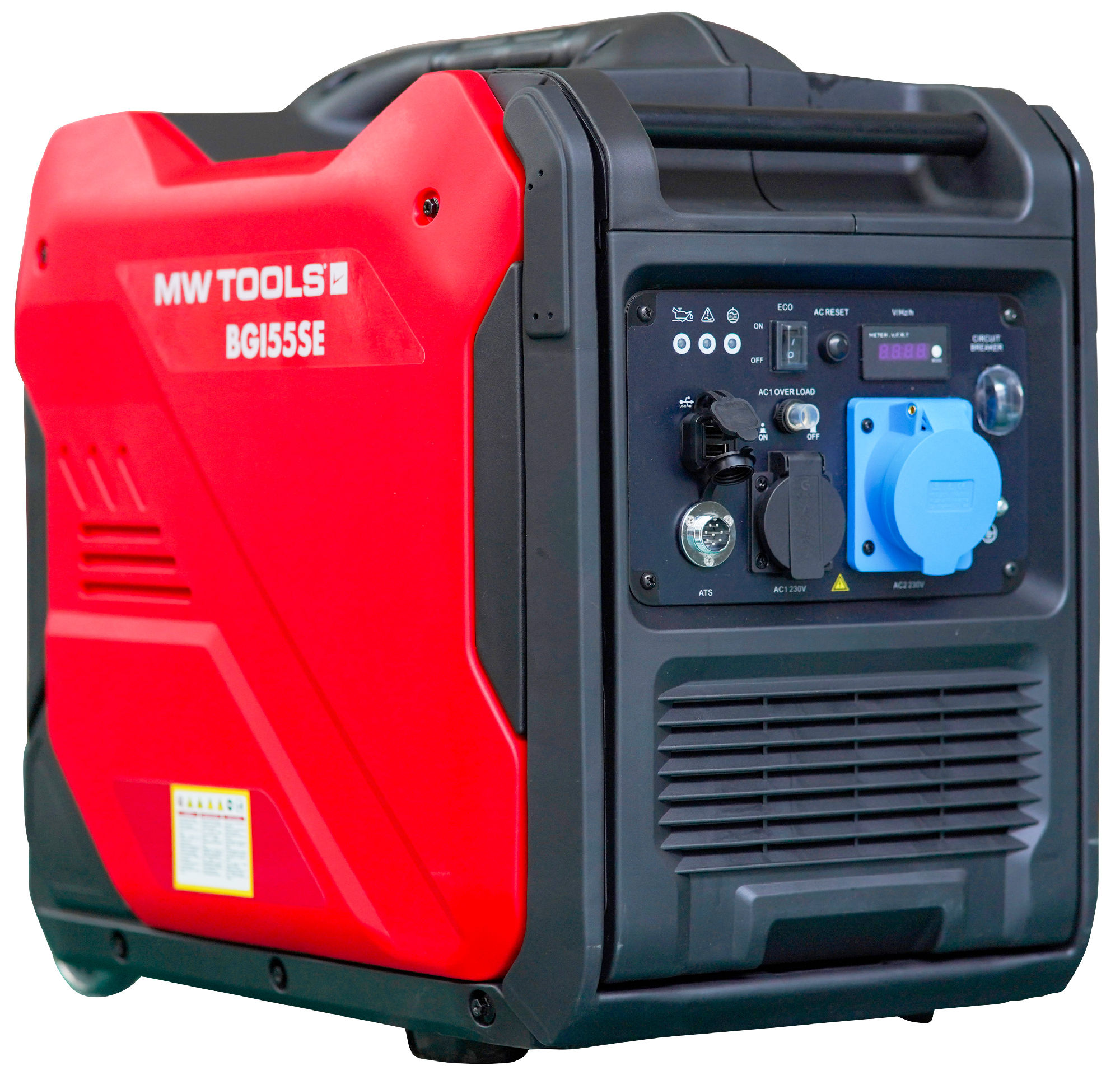

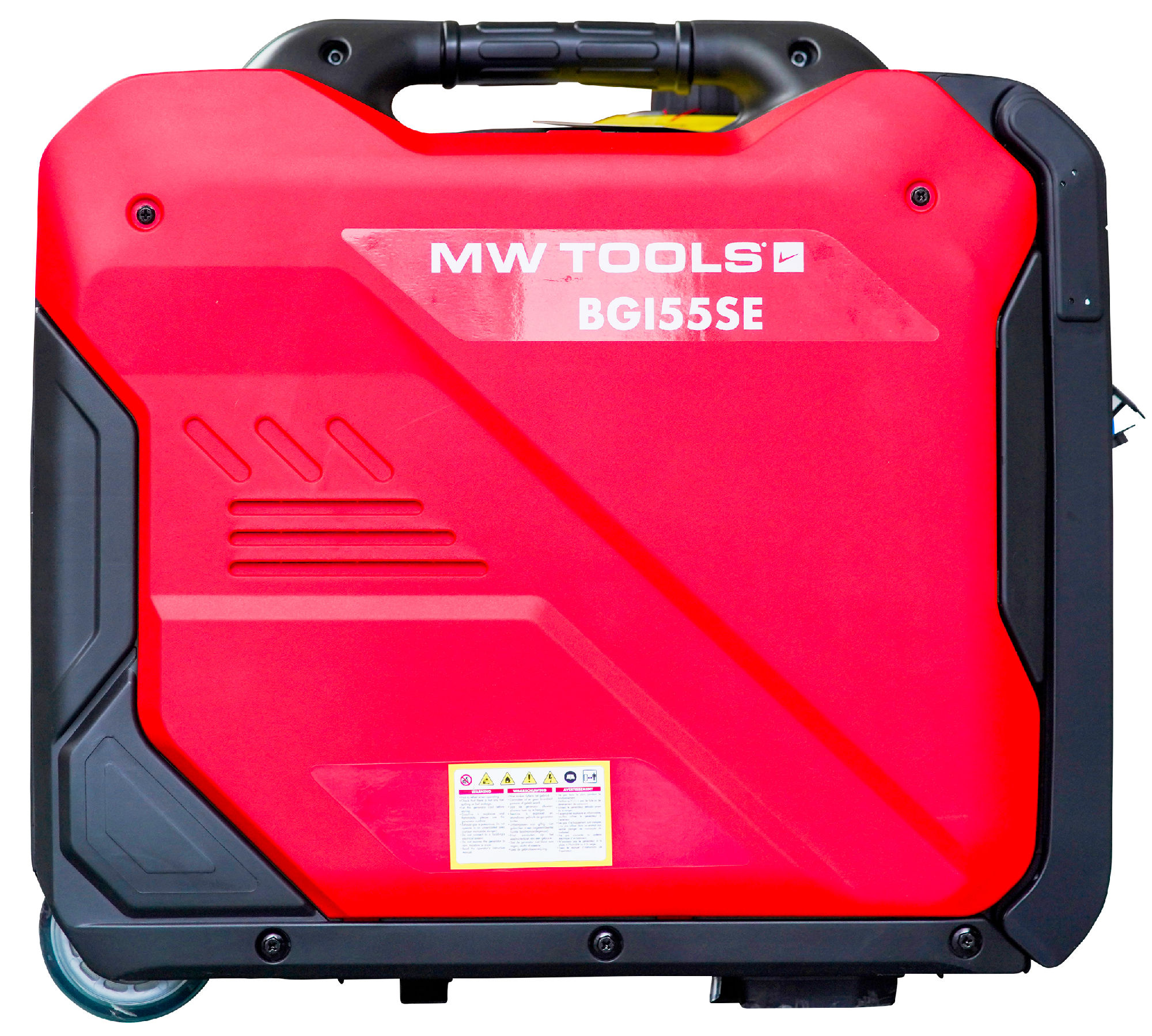

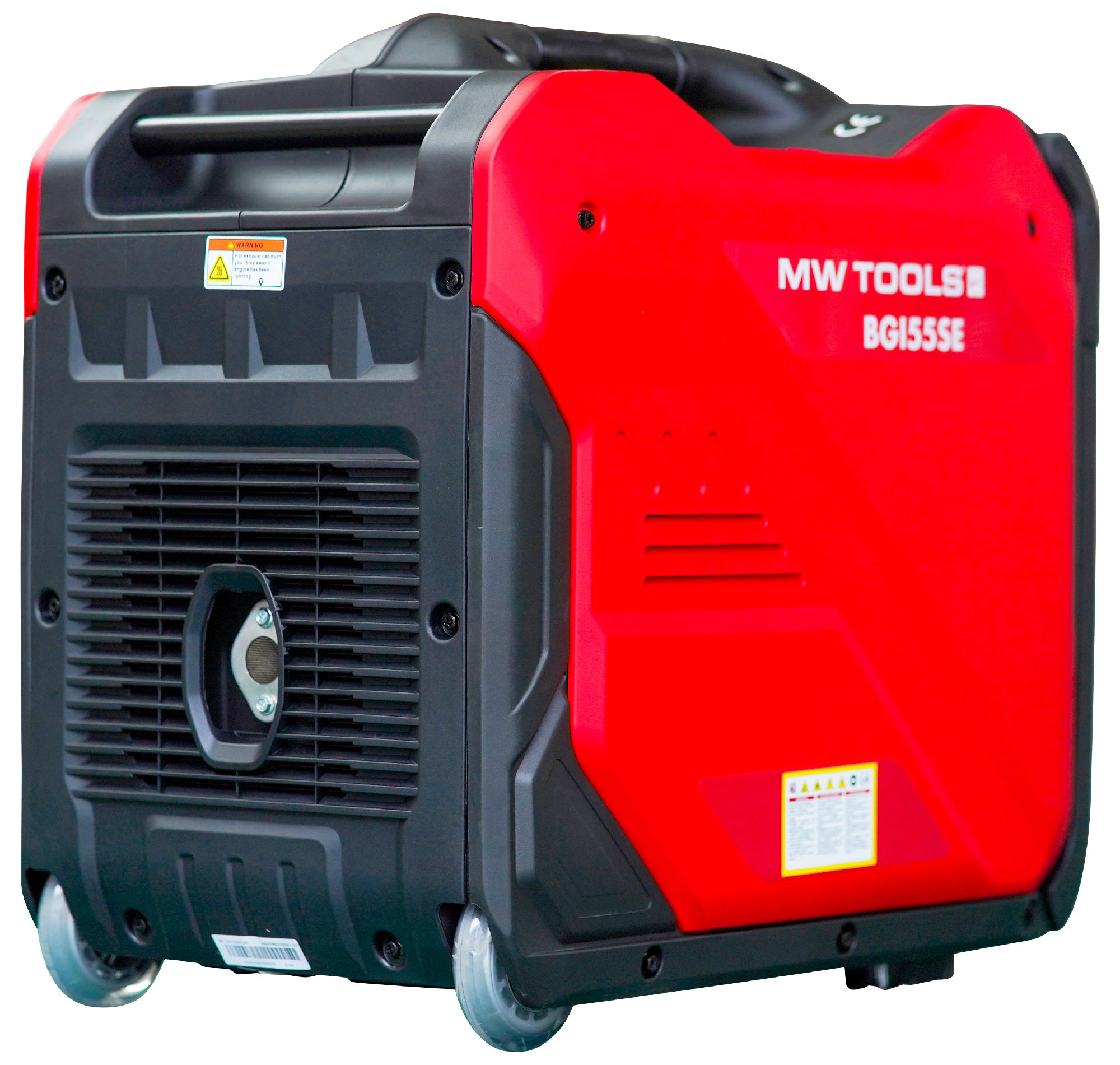

Metal Works BGI55SE Low-noise petrol inverter generator 5.5 kW 230 V, with electric start and ATS contact.
Special Features
- Low-noise petrol inverter generator 5.5 kW 230 V, with electric start and ATS contact.
- Single-phase inverter petrol generator with stable pure sine wave output voltage, for use with electronic devices such as computers, smartphones, battery chargers, household appliances, etc.
- Model with ATS connector, suitable for connection to the internal installation and use as a backup generator during power outages or blackouts.
- Compact and quiet mobile generator, ideal for use in vans, on construction sites, homes, camping, outdoor events, roadside assistance, as a backup generator, etc.
- 5.5 kW maximum output
- 5.0 kW continuous output
- Electronic inverter control delivers a Pure sine wave output voltage of 230 V +/- 3%, suitable for all electronic devices, computers, servers, household appliances, and USB chargers. Electric start with integrated battery and large rotary start knob for easy keyless starting. 1 socket 230 V 16A with earth connection. 1 socket 230 V 32A with pin earth connection (blue industrial plug). 2 USB sockets 5 V, 1A (1x) and 2.1A (1x) for fast charging smartphones and other battery-powered portable devices. 8-pin ATS input plug, to which an external ATS (Automatic Transfer Switch) can be connected. This ATS manages the switching on/off of the generator in the event of power outages in the internal electrical installation. (The ATS itself is not included.) Fuel-efficient. This provides a good autonomy of 6 hours (50% load)
- Fuel consumption of 1.83 l/h (50% load) or 3.67 l/h (100% load)
- Medium-sized 11-liter fuel tank
- 11.6 hp 4-stroke OHC petrol engine with air cooling 223cc
- Eco mode for lower fuel consumption at low load. In this mode, the generator runs at a lower RPM.
- Low-noise enclosure, fully sealed. Noise output of only 62dB (at half load)
- Impact-resistant housing

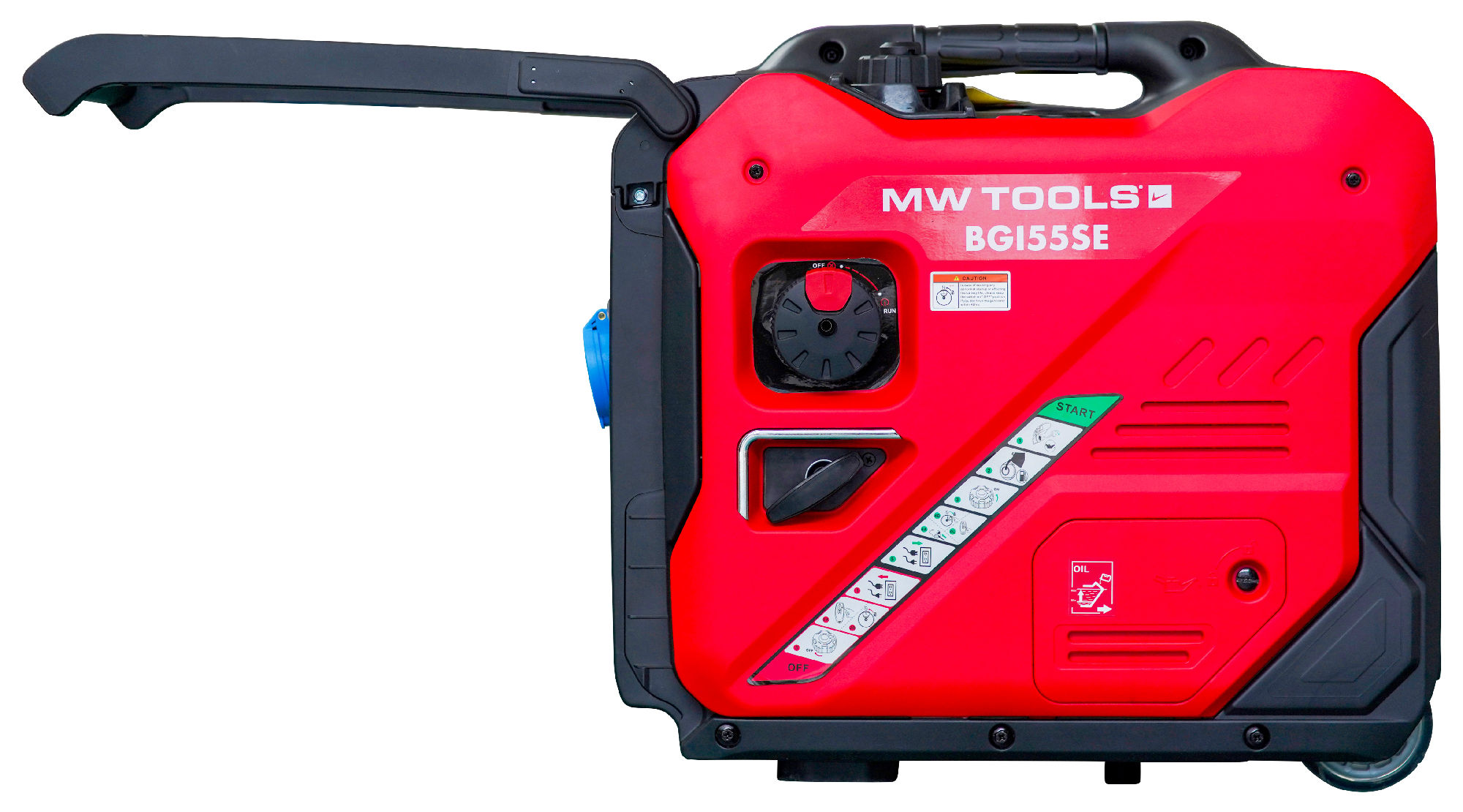

- 2 built-in wheels and retractable handle. The handle can be extended like a trolley for easy transport
- Digital display showing parameters: Voltage (V), Frequency (Hz), hour meter (total), and hour meter since startup
- LED indicator warns of low oil level and automatically switches off the generator
- LED indicator warns of 10% overload and automatically switches off at higher overload
- AC reset button for directly resetting the generator (after overload) without having to switch it off first.
- Connection point on the front panel for grounding (grounding pin and cable not included)
- Manual choke knob
- Suitable fuels: petrol type E5 (98), E10 (95), E15 (maximum 15% ethanol), and also alkylate petrol for 4-stroke engines. Unsuitable fuels: E85, ethanol, bio-ethanol
Advantages
- Pure sine wave inverter technology 230V, suitable for all electronics
- Low-noise casing, only 71 decibels
- High continuous power of 5.0kW at 230V
- Engine with electric start
- ATS plug, to be connected to an ATS and the fuse box, for automatic switching between mains power and generator power
- Integrated wheel set and trolley handle
- Low fuel consumption
Technical data
- Type Inverter
- Voltage V 1 x 230
- Start Electric
- Battery included Yes
- Engine type 11.6hp petrol 4-stroke
- Energy source Petrol
- Cylinder capacity cc 223
- Tank capacity l 11
- Maximum power kW 5.5
- Continuous power kW 5.0
- Oil tank capacity l 0.7
- Sockets 230V 32A pc 1
- Sockets 230V 16A pc 1
- USB sockets pc 2
- Noise level dB(A) 71
- Inverter Yes
- On wheels Yes
- Frequency Hz 50
- Range h 6
- Cylinder 1
- Current at 230 VA 23.9
- Battery capacity Ah 1.6
- Fuel type Petrol
- Weight kg 39.50
- Dimensions (lxwxh) mm 590x390 x547
Scope of delivery
- Gel battery 12V 1600mAh 19.2Wh, with dimensions 107×58×86mm
- On pallet
