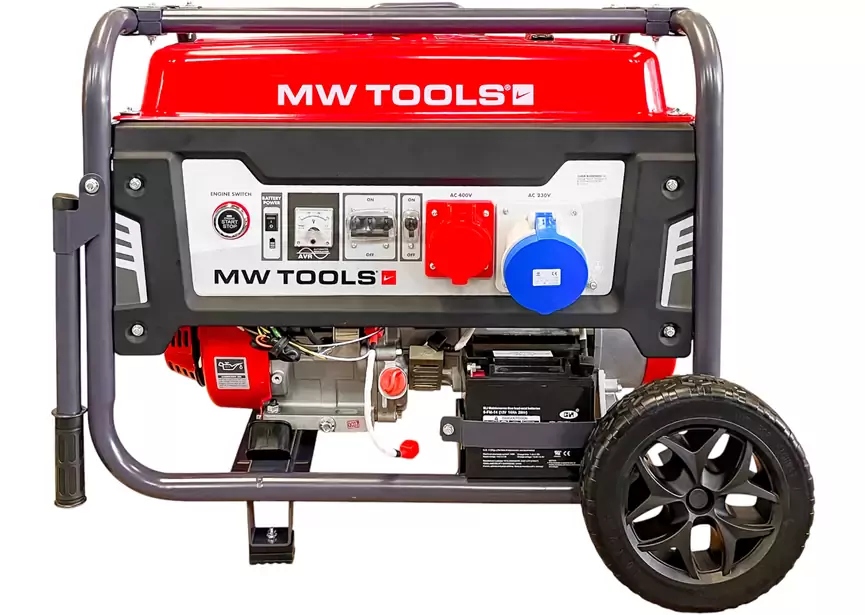

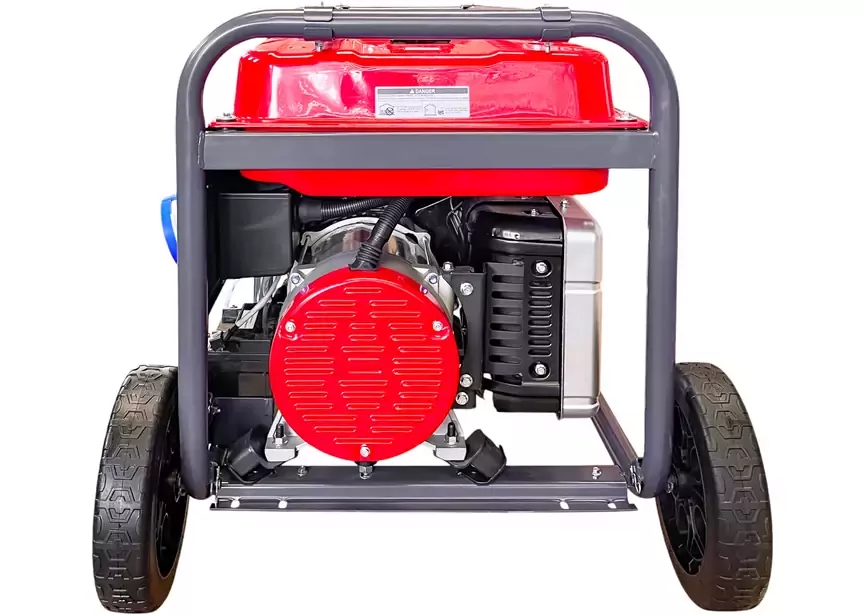

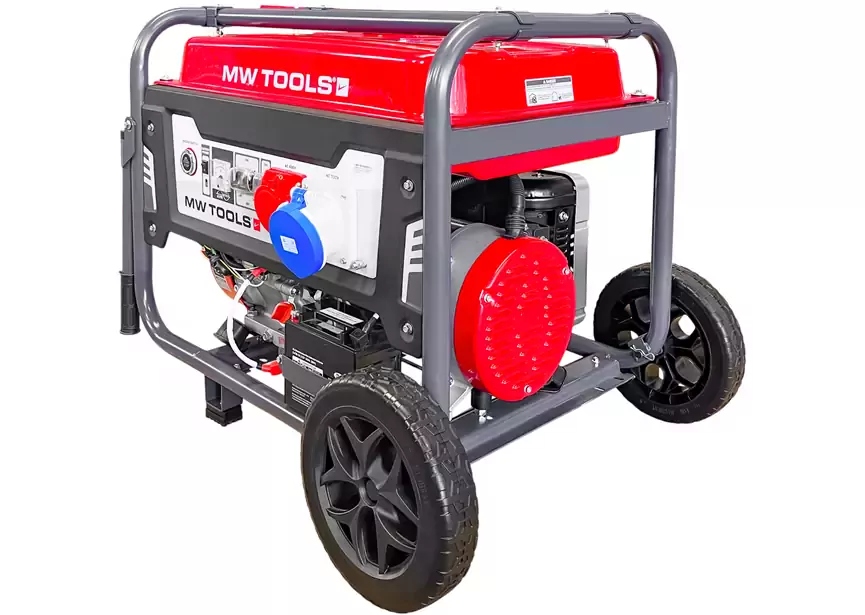

Metal Works 724562259 BG100ED Petrol generator 11kW 230-400V electric start
Special features
- Connection voltage: 3 x 400 V (three-phase) or 230 V (single-phase)
- Power: peak power of 11.0 kW (3 x 400 V) or 9.9 kW (230 V); continuous power of 10.0 kW (3 x 400 V) or 9.0 kW (230 V)
- Voltage regulation (AVR): stable output voltage of 230 V with voltage deviation within ±2.5%; suitable for most electronic devices such as construction and garden machinery, household and kitchen appliances; not suitable for sensitive equipment such as computers or sensitive electronics
- Engine and performance: powerful 4-stroke air-cooled petrol engine with 18 hp (13 kW) and alternator with copper windings for optimal performance
- Use and operation: electric start with supplied battery and manual start via pull cord possible; quiet operation thanks to large silencer
- Range and consumption: large 40-liter petrol tank with level indicator; range of 6.5 hours at full load; Fuel consumption under continuous load: [to be entered in l/h]
- Safety and durability: thermal overload protection, automatic shutdown in case of oil shortage, sturdy tubular frame with folding handle and robust plastic wheels
- Power factor: 0.8 (1 kW = 1.25 kVA)
- Fuel compatibility: suitable for petrol E5 (98), E10 (95), E15 (max. 15% ethanol) and alkylate petrol for 4-stroke engines; unsuitable for E85, pure ethanol and bio-ethanol
Technical data
- Generator type: AVR
- Starting method: Electric
- Battery included: Yes
- Engine type: 4-stroke petrol, 18 hp
- Cylinder capacity: 521 cc
- Fuel type: Petrol
- Fuel consumption: 438 g/kWh
- Tank capacity: 40 liters
- Runtime: 7.5 hours
- Voltage: 1 x 230 V + 3 x 400 V
- Frequency: 50 Hz
- Current at 230 V: 43 A
- Current at 400 V: 25 A
- Maximum power: 11 kW
- 230V 16A sockets: 2 units
- 400V 16A sockets: 1 unit
- Sound power level (LwA): 97 dB(A)
- Wheels: Present
- Dimensions (L x W x H): 755 x 645 x 600 mm
