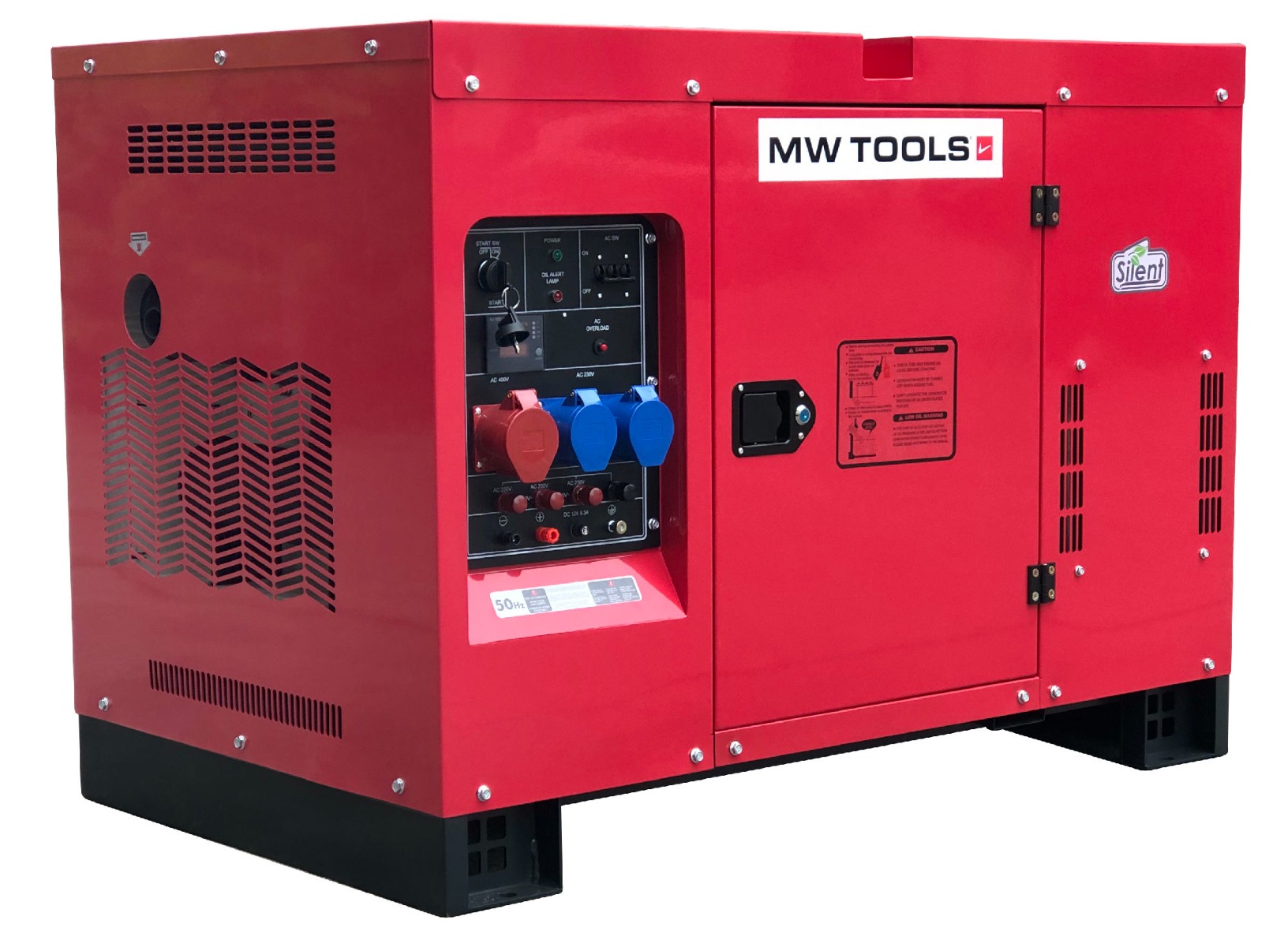

MW-Tools DG150EP Diesel Generator 1x230V 12.0KW / 3x400V 15.0KW with connection for external fuel tank
Low-noise diesel generator 15.0 kW on 3x400 V and 12.0 kW on 1x230 V with connection for external fuel tank.
Special Features
- High Continuous output of 11.0 kW on 230 V and 14 kW on 3x400 V
- Connection for external diesel tanks, allowing the generator to continue running without refueling
- The generator can be used as an emergency generator, providing sufficient power for entire homes and small businesses
- ATS plug, for connection to an ATS and the fuse box, for automatic switching between mains power and generator power
- Type 'Equal power' with 2 separate fuses on the main board: a separate fuse for 1x230 V and for 3x400 V.
- This allows you to extract the maximum power from the generator in both single-phase and three-phase voltage. 1x230V 63A blue industrial socket, fused at 63A, allows you to deliver up to 11.0kW of power continuously in 230V to an ATS.
- Suitable for heavy 230 V equipment such as construction machinery (pumps, saws, construction cranes, etc.), workshop machines (compressors, heaters, etc.), garden tools (lawnmower, water pump, pellet machine, wood splitter, etc.) and household machines and appliances (heat pump, air conditioning, oven and hob, washing machine and dryer, ...)
- AVR automatic voltage regulation.
- Built-in 30-liter diesel tank + external tank connection
- The front panel is equipped with 2 7.5mm nipples for connecting fuel hoses to an external diesel tank. (hoses and the external tank itself are not included)

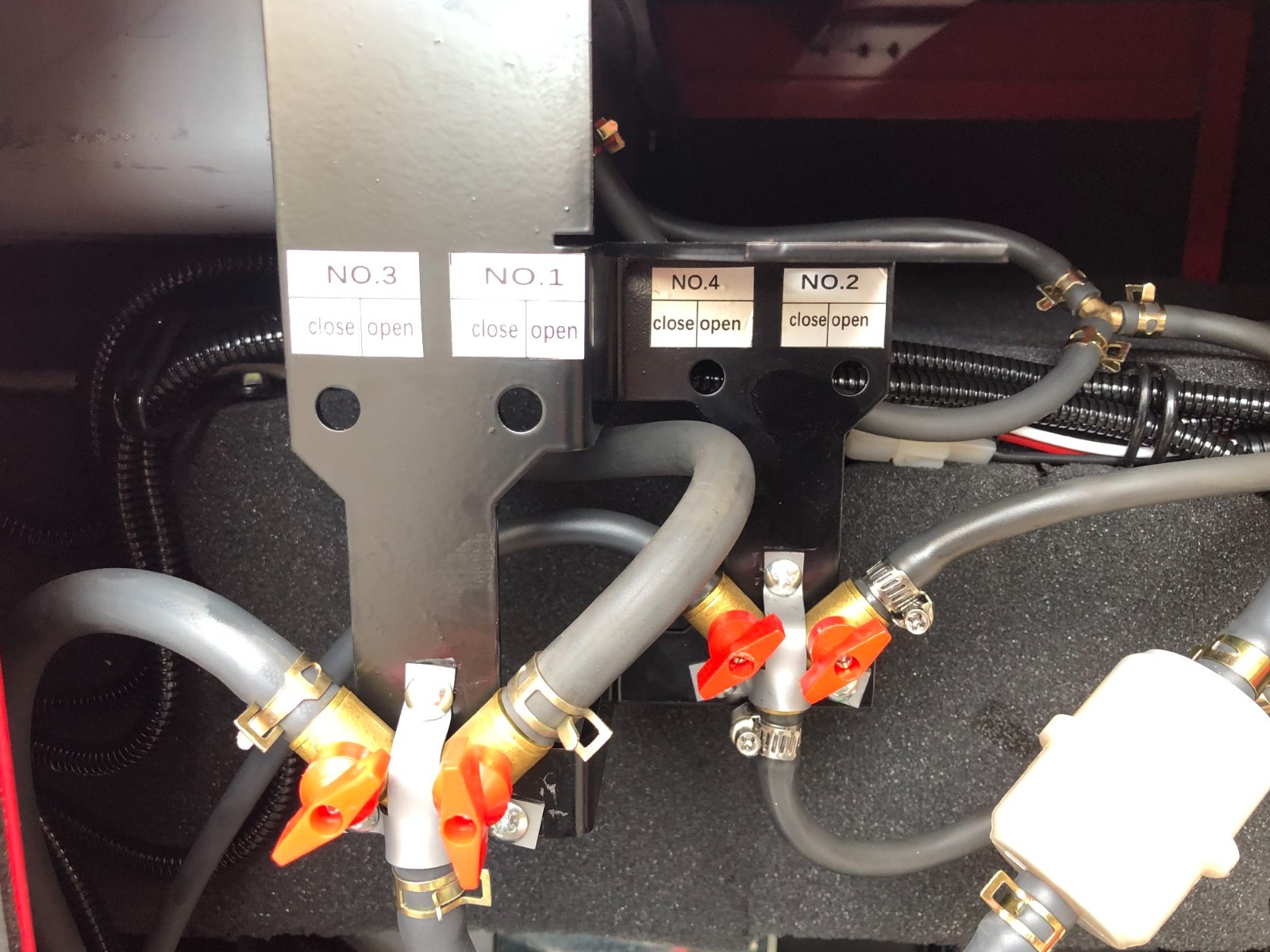

- The pump inside the housing can be switched between the internal and external tank via a selector switch.
- The pump is self-priming.
- Maximum suction length to external tank: 10 meters. The external diesel tank must be at the same level as the generator
- 12.0 kW maximum power at 1 x 230V
- 15.0 kW maximum power at 3 x 400V
- 100W maximum power at 12V
- 2 separate main fuses on the main board: 230 V (63A) and 3x400V (32A) with selector switch.
- Sockets: 3x400V 32A (1x), 230V 63A (1x), 230V 16A (1x) and 12V 8.3A (1x)
- The blue 1x230V 63A industrial socket is fused at 63A, and allows the generator's maximum power of 11 kW to be supplied continuously at 230V. an ATS.
- Air-cooled diesel engine 20.4 hp
- Electric start
- Electric preheating for easy cold starting of the engine in temperatures below 5°C
- 6-pin ATS input plug, to which an external ATS (Automatic Transfer Switch) can be connected.
- This ATS manages switching the generator on/off in the event of power interruptions to the internal electrical system. (The ATS itself is not included)

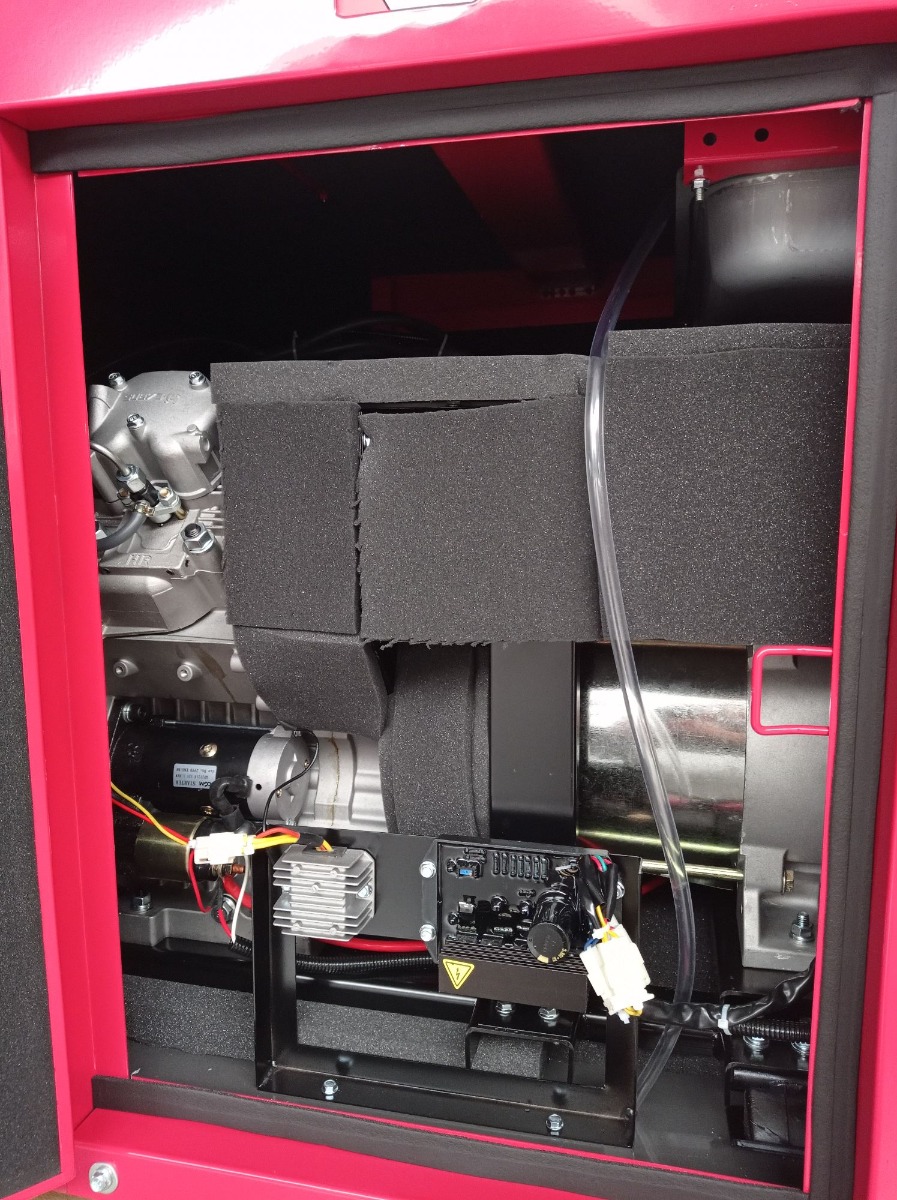

- Low-noise casing, fully lined with sound-absorbing foam
- AVR automatic voltage regulation: ensures a stable output voltage of 230 V.
- Voltage fluctuations are within +/- 2.5%, making this generator suitable for use with most electronic devices such as construction machinery, garden machinery, household and kitchen appliances, etc.
- Not suitable for very sensitive devices such as computers or sensitive electronics.
- Digital display showing 5 parameters: Voltage (V), Current (A), Frequency (Hz), Power (W), and hour counter
- 100% Copper wound alternator
- Connection for external grounding pin (pin and cables not included)
- Thermal protection against overload
- Automatic shutdown in case of oil shortage
Technical specifications
- Voltage V 1x230 + 3x400
- Circuit protection
- Electric start

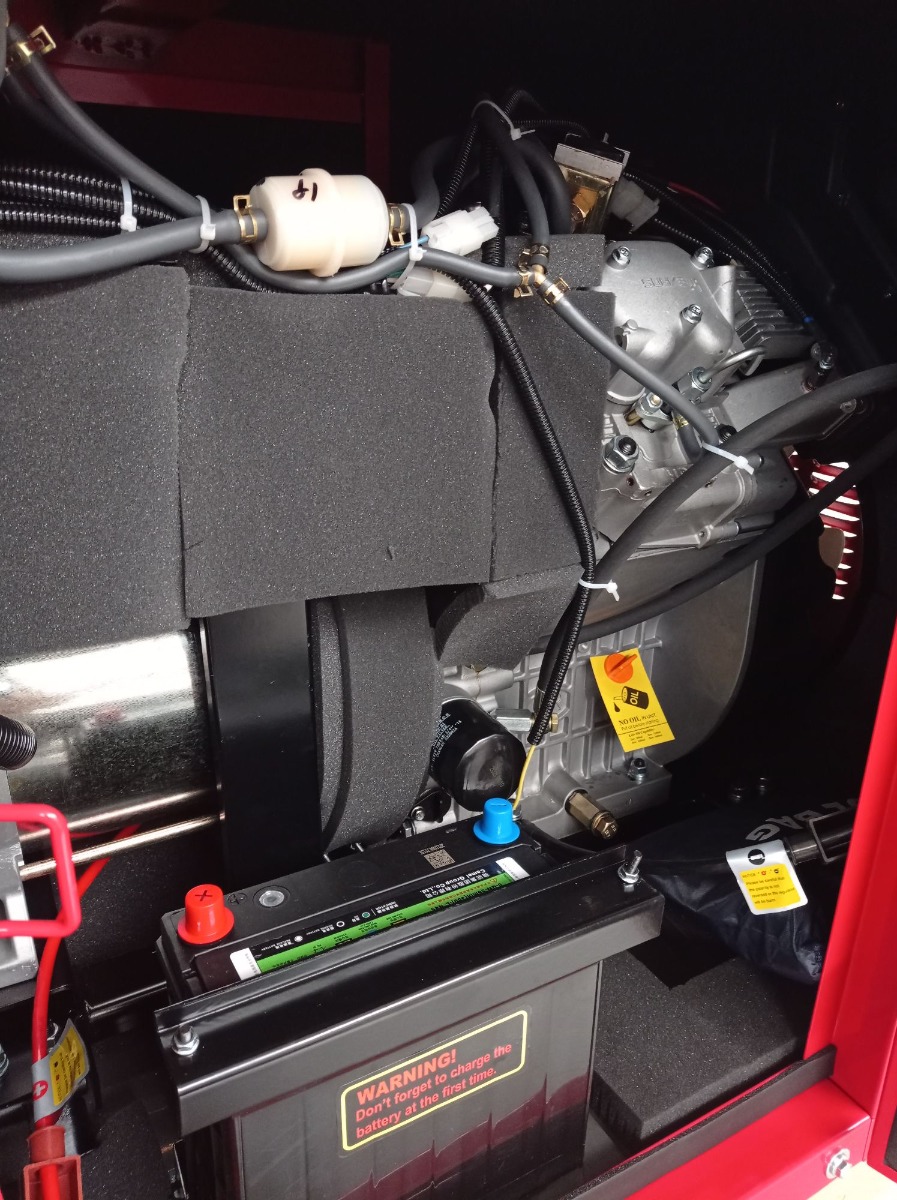

- Battery included
- Engine type Diesel 4-stroke 1326cc<
