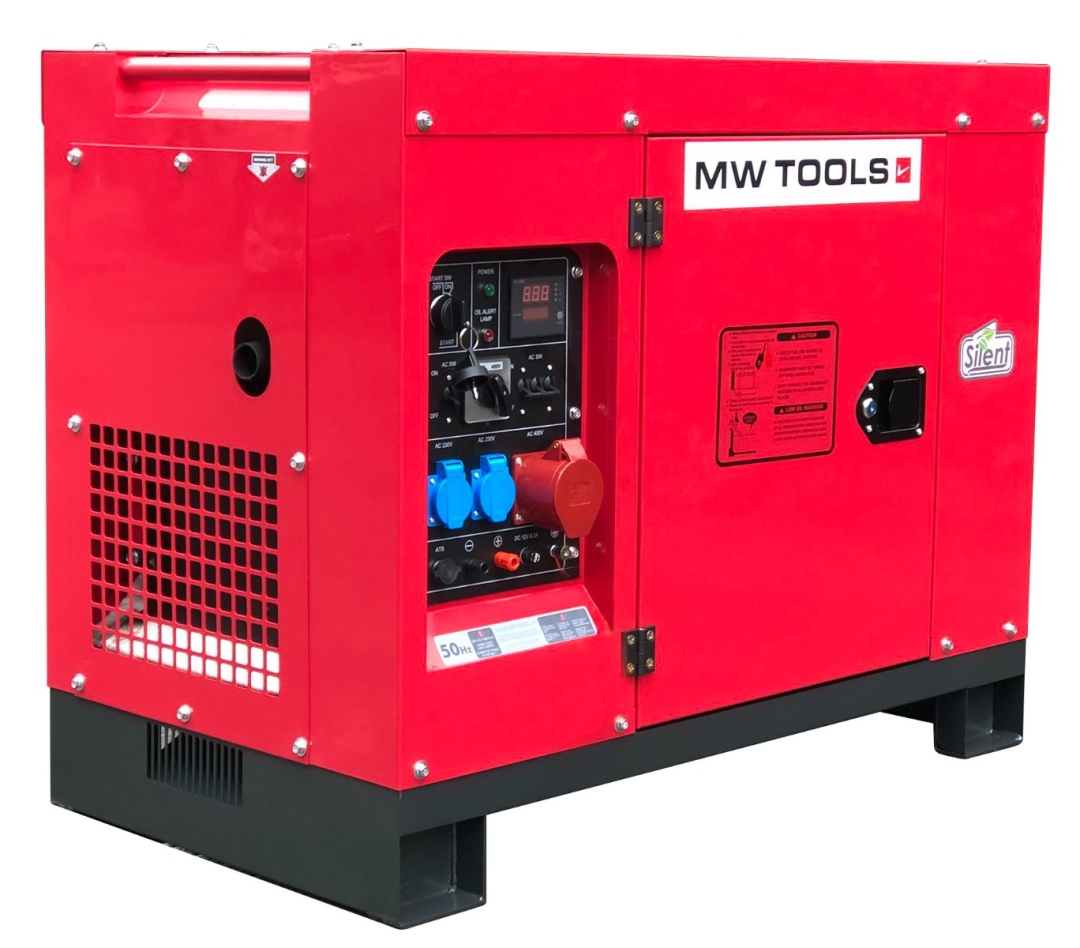

MW-Tools DG100E Diesel Generator 1x230V 8.0KW / 3x400V 10.0KW
Special Features
- Low-noise diesel generator 8.0 kW on 1x230 V and 10.0 kW on 3x400 V, for use on construction sites, at indoor or outdoor events, or as an emergency generator for businesses and homes.
- The generator delivers a continuous output of 7.2 kW at 230 V and is suitable for operating various heavy-duty devices together without overloading the fuse.
- Type 'Equal power output' with 2 separate fuses on the main board: a separate fuse for 1x230 V and for 3x400 V.
- This allows you to get the maximum power out of the generator.
- Due to the double fuse this circuit is also suitable for 230 V devices with an electric motor such as construction machinery (grinders, saws, etc.), workshop machines (small compressor, drill, vacuum cleaners, etc.), garden tools (lawnmower, hedge trimmer, edge trimmer, water pump, etc.) or as an emergency generator that can provide sufficient capacity in the event of a power outage.
- Low-noise enclosure, fully lined with sound-absorbing foam
- Sockets: 230V 16A (2x) and 3 x 400V 32A (1x) 2 separate fuses on the main board (1x230 V and 3x400 V) 8.0 kW maximum power on 1 x 230V 10.0 kW maximum power on 3 x 400V
- Fuel consumption at continuous full load: 3.38 liters/hour
- Electric start Air-cooled diesel engine 13.6 hp
- AVR voltage regulation: ensures a stable output voltage of 230 V.
- Voltage variations are within +/- 2.5%, making this generator suitable for use with most electronic devices such as construction machinery, garden machinery, household and kitchen appliances, etc.
- Not suitable for very sensitive devices such as computers or sensitive electronics.

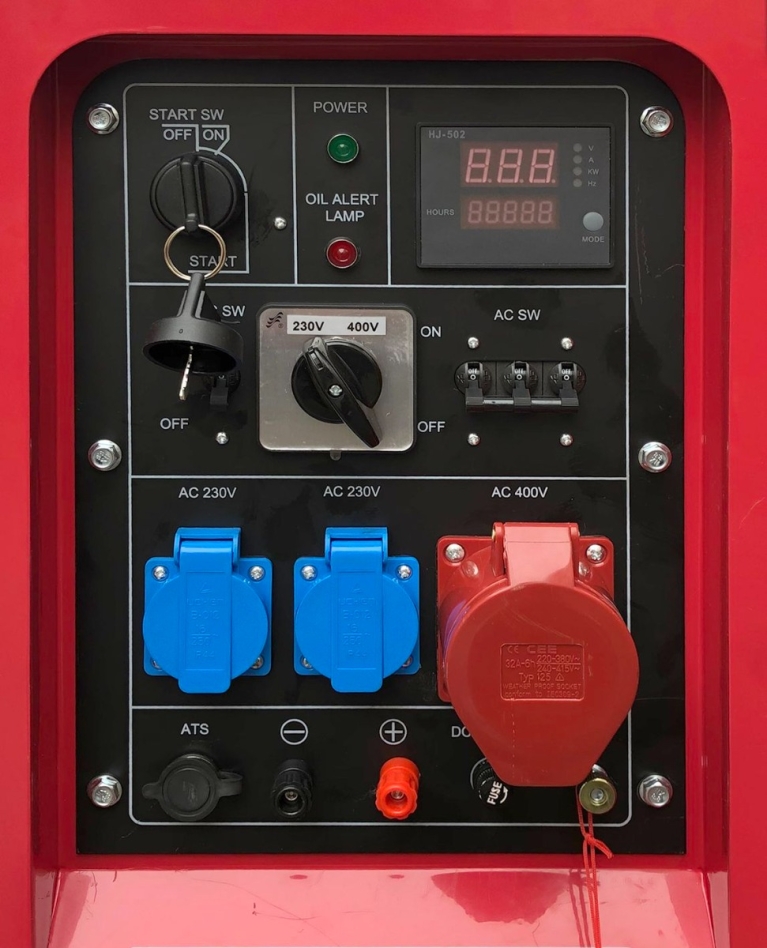

- Digital display showing 5 parameters: Voltage (V), Current (A), Frequency (Hz), Power (W) and hour counter
- 100% Copper wound alternator
- Thermal protection against overload
- Automatic shutdown in case of oil shortage
Technical data
- Voltage V 1x230 + 3x400
- Circuit protection
- Start Electric
- Battery included
- Engine type Diesel 4-stroke 718cc
- Fuel consumption g/kWh 250
- Consumption l/min 0.06
- Tank capacity l 30
- Oil tank capacity 1.65 ltr
- 230V sockets pcs 2
- 3x400V sockets pcs 1
- Noise level dB(A) 75
- On wheels
- Range h 12
- Cylinder 1
- Maximum power 1 x 230V kW 8.0
- Continuous power 1 x 230V kW 7.2
- Maximum power 3 x 400V kW 10.0
- Continuous output 3 x 400V kW 9.0
- Current at 230 VA 31.3
- Current at 400 VA 13
- Weight kg 219.00
- Dimensions (LxWxH) mm 1320x820x942
Scope of delivery
- Set of slotted holes at the bottom of the generator, for moving with a forklift, lifting forks, or pallet truck
- Battery and key for the electric start
- Tool set with filling funnel, spare fuel filters, and connection plugs (male) for the sockets
- Supplied with 36Ah 12V battery, dimensions 195 x 125 x 200 mm
