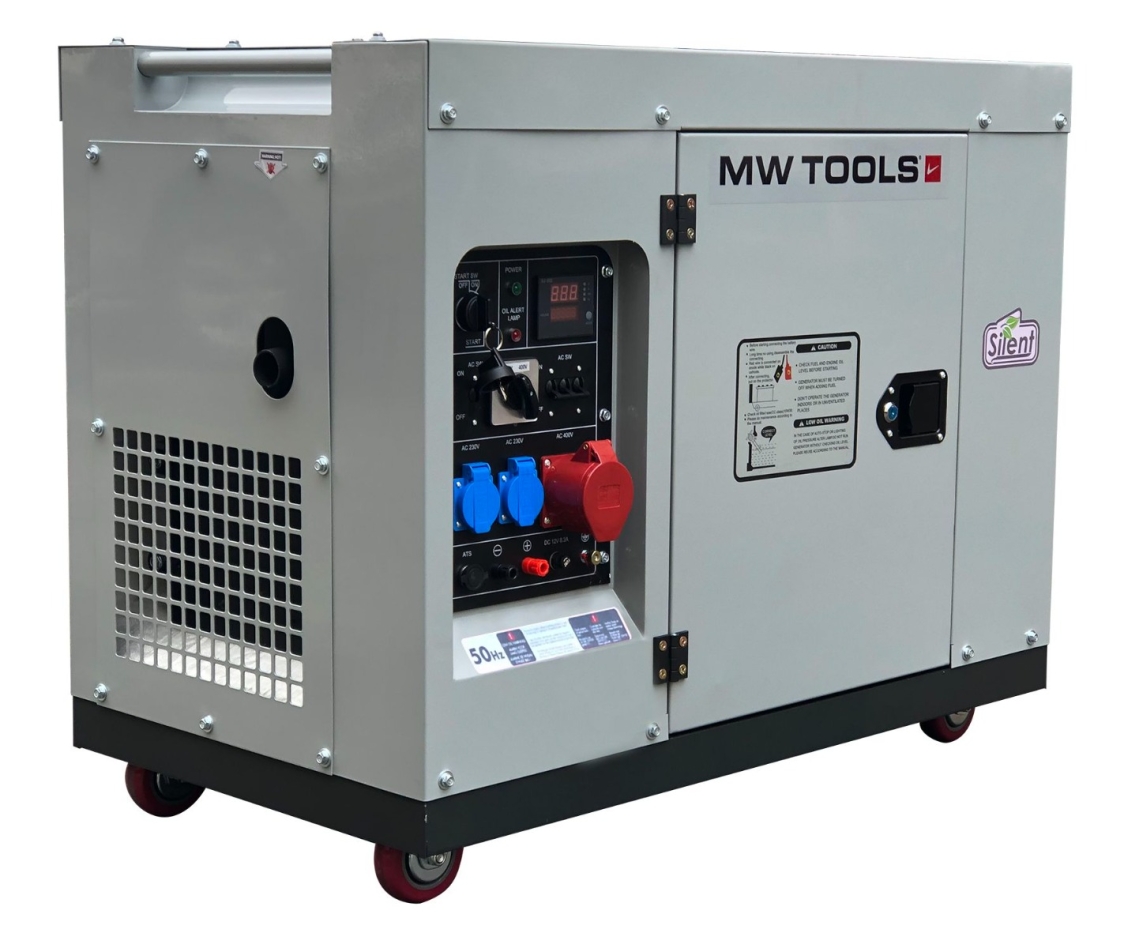

MW-Tools DG75E Diesel Generator 1x230V 6.0KW / 3x400V 7.5KW
Special Features
- Low-noise diesel generator 6.0 kW on 1x230 V and 7.5 kW on 3x400 V, for use on construction sites, at indoor or outdoor events, or as an emergency generator for businesses and homes.
- The generator delivers a continuous output of 5.6 kW at 230 V and is suitable for operating various heavy-duty devices together without overloading the fuse.
- Type 'Equal power output' with 2 separate fuses on the main board: a separate fuse for 1x230 V and for 3x400 V.
- This allows you to get the maximum power out of the generator.
- Due to the double fuse, this Also suitable for 230 V devices with an electric motor such as construction machinery (grinders, saws, etc.), workshop machines (small compressor, drill, vacuum cleaners, etc.), garden tools (lawnmower, hedge trimmer, edge trimmer, water pump, etc.) or as an emergency generator that can provide sufficient capacity in the event of a power outage.
- Low-noise enclosure, fully lined with sound-absorbing foam
- Sockets: 230V 16A (2x) and 3 x 400V 32A (1x) 2 separate fuses on the main board (1x230 V and 3x400 V) 6.0 kW maximum power on 1 x 230V 7.5 kW maximum power on 3 x 400V
- Fuel consumption at continuous full load: 2.82 liters/hour
- Electric start
- Air-cooled diesel engine 10.2 hp
- AVR voltage regulation: ensures a stable output voltage of 230 V.
- Voltage variations are within +/- 2.5%, making this generator suitable for use with most electronic devices such as construction machinery, garden machinery, household and kitchen appliances, etc.
- Not suitable for very sensitive devices such as computers or sensitive electronics.
- 100% Copper wound alternator

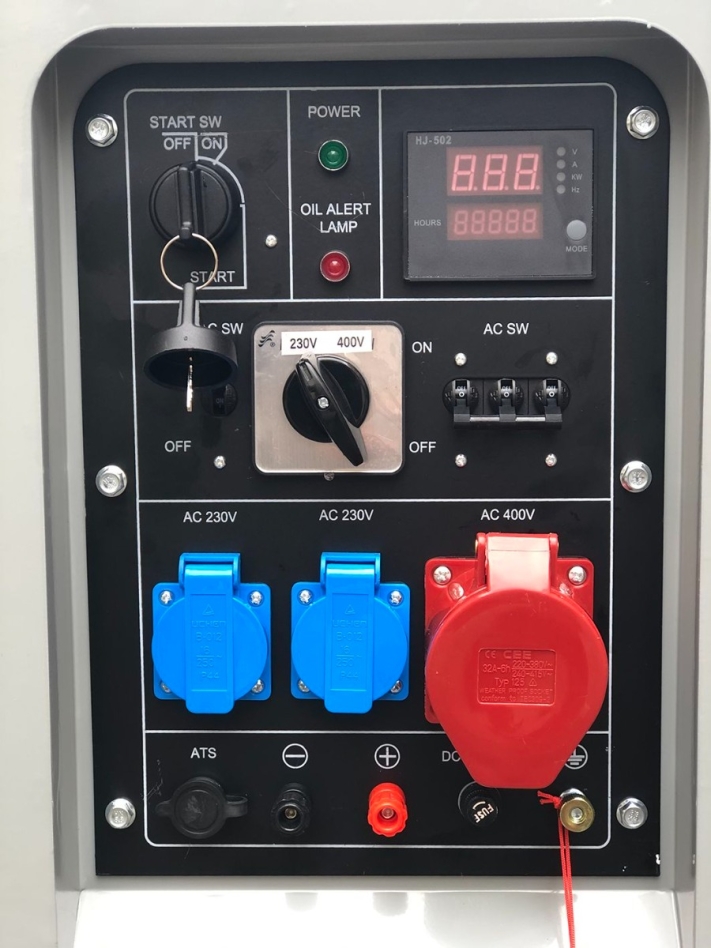

- Digital display showing 5 parameters: Voltage (V), Current (A), Frequency (Hz), Power (W) and hour counter Thermal overload protection
- Automatic shutdown in case of oil shortage
Technical data
- Voltage V 1x230 + 3x400
- Circuit protection
- Battery included
- Engine type Diesel 4-stroke 633cc
- Fuel consumption g/kWh 250
- Consumption l/min 0.05
- Tank capacity l 30
- 230V sockets pcs 2
- 3x400V sockets pcs 1
- Noise level dB(A) 72
- On wheels
- Range h 8.5
- Cylinder 1
- Maximum power 1 x 230V kW 6.0
- Continuous power 1 x 230V kW 5.6
- Maximum power 3 x 400V kW 7.5
- Continuous power 3 x 400V kW 7.0
- Current at 230 VA 24.3
- Current at 400 VA 10.1
- Weight kg 198.00
- Dimensions (LxWxH) mm 1080x650x870
Scope of delivery
- Supplied without 15W40 engine oil
- Wheel set
- 2 lifting points, for moving with a crane
- Battery and key for electric start
- Battery 36Ah 12V, dimensions 195 x 125 x 200 mm
