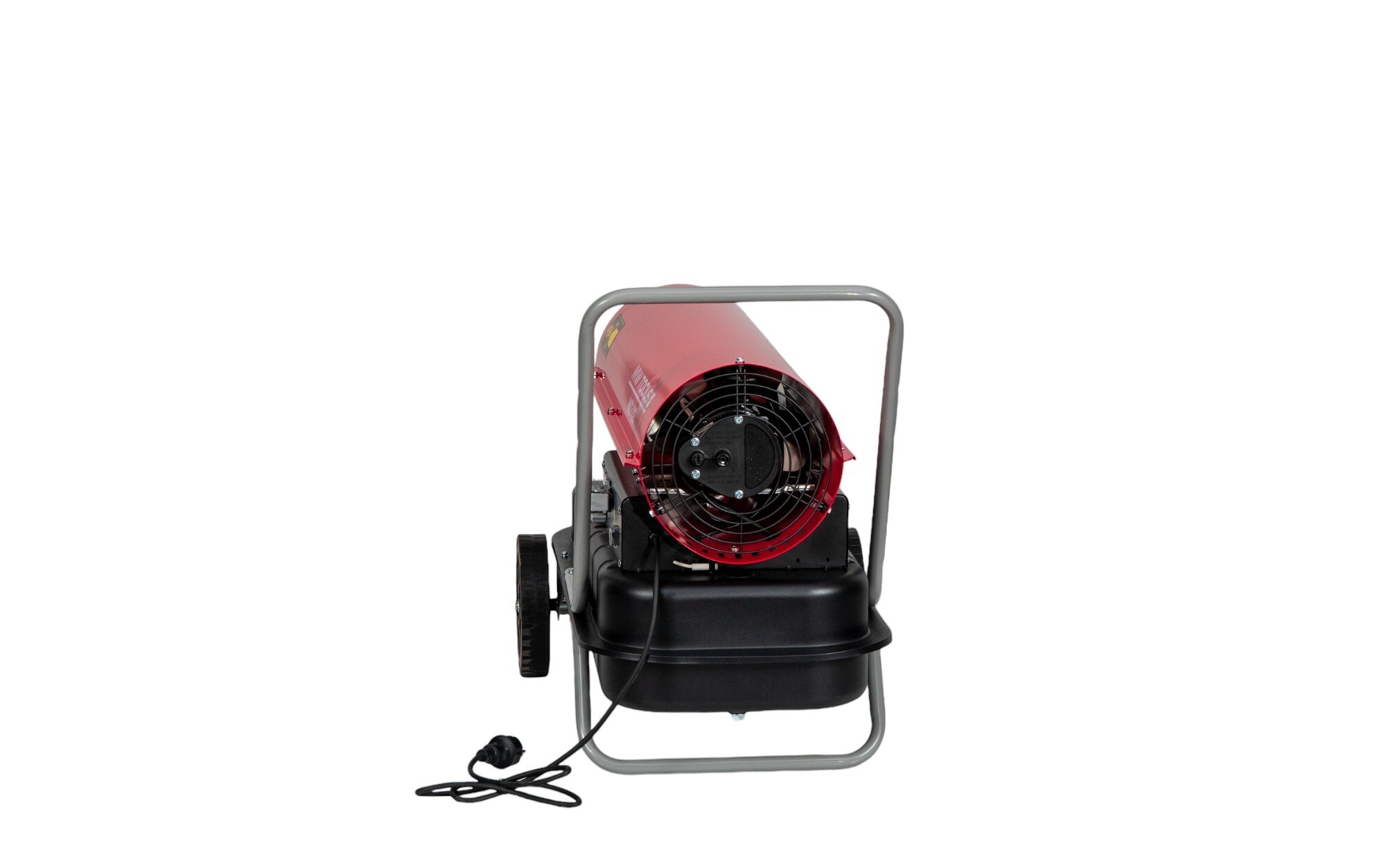

Metal Works WD172 Direct-fired heater 50kW
Special Features
- 50kW diesel hot air blower with fan. Heats up quickly and directly.
- This high-capacity, direct-combustion mobile heater is suitable for heating medium to large spaces.
- Direct-combustion model
- Suitable for heating spaces from 570 to 2900m³, depending on the insulation and ventilation of the space. The better the insulation value of the building elements (lower K-value), the larger the space you can heat.
- Minimum heatable volume of 570 m³, at a K-value of 2.5: in case the building is not insulated, with single glazing, solid brick walls, a roof with old corrugated sheets, or for spaces where gates are regularly opened.
- Maximum heatable volume of 2900 m³, at a K-value of 0.5: in case the building is well insulated according to recent building standards
- Built-in thermostat with temperature display on LCD screen
- Additional thermostat with 10-meter cable, for precise remote heat control from the heater
- Fuel: diesel and white petroleum
- Stainless steel combustion chamber
- Built-in steel tank with fuel level gauge
- Safety features: flame monitoring, power cut-off and Fuel sensor ensures optimal safety in all conditions
Benefits
- Professional model with long service life
- Direct combustion
- High-quality Danfoss nozzle for optimal atomization and complete combustion
- Printed circuit boards extra protected against dust and dirt
- Durable and large nylon wheels, suitable for rough surfaces such as gravel or cobblestones and construction sites with cables, pipes, stones, dirt, etc.
- Double cover plate on top, for easy access and maintenance
- Easy mounting of the wheels and bracket
- Suitable for both indoor and outdoor use for heating, drying, defrosting, and keeping ventilated spaces frost-free
- IPX4 splash-proof
Technical data
- Heat output kW 50
- Heat type Ventilated air
- Energy source Diesel
- Thermostat Yes
- Fuel tank capacity l 56
- Fuel consumption l/h 4
- Total consumption W 340
- Heated space m³ 2900
- Air displacement m³/h 1100
- Voltage V 230
- Cable 10m
- Switch Yes
- Protection class IP X4
- Suitable for outdoor use Yes
- Mobile Yes
- Frequency Hz 50
- Noise level dB(A) 76
- Weight kg 23.20
- Dimensions (lxwxh) mm 1076x515x585
Scope of delivery
- On pallet
- Wheel set
