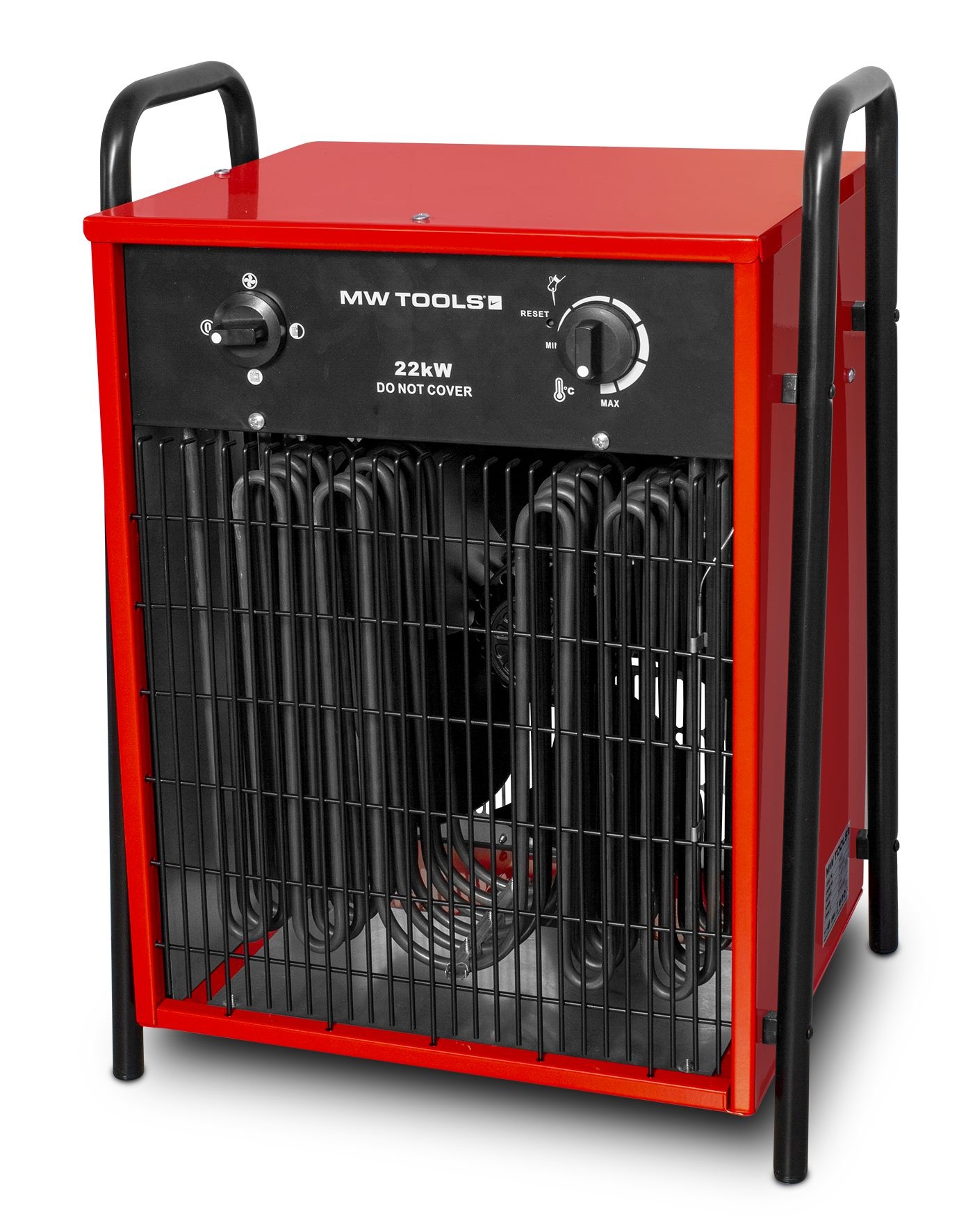

Metal Works WEL22 Electric Heater 22kW 3x400V
Special Features
- Electric heater 22 kW on 3 x 400 V
- Suitable for heating large spaces up to approx. 180 m², such as workshops, warehouses, offices, shops, etc.
- Suitable for heating spaces up to 1276 m³, depending on the insulation and ventilation of the space. The better the insulation value of the building elements (lower K-value), the larger the space you can heat.
- Maximum heatable volume of 1276 m³, at a K-value of 0.5: provided the building is well insulated according to recent building standards.
- Minimum heatable volume of 250 m³, at a K-value of 2.5: in the case the building is not insulated, with single glazing, solid brick walls, a roof with old corrugated sheets, or for rooms where doors are frequently opened.

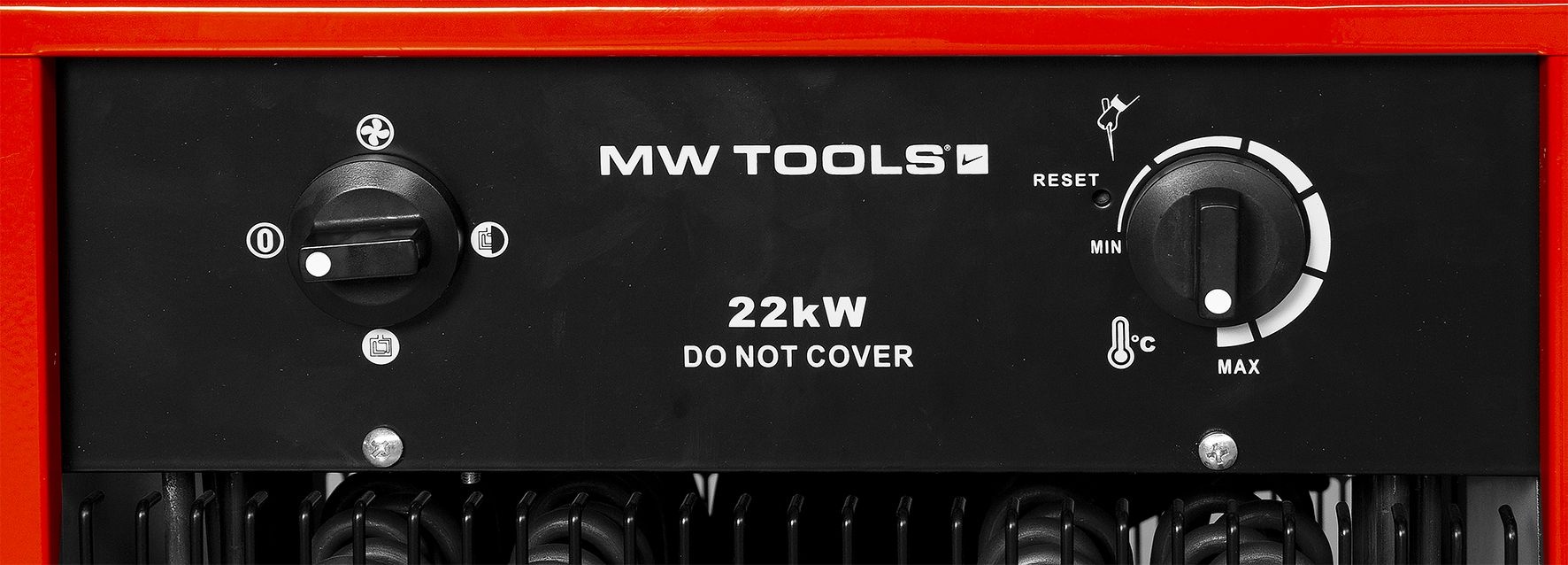

- Built-in thermostat with control knob
- Multi-position switch also featuring a fan setting
- IPX4 splash-proof for use in damp rooms
- CE approved
- Supplied without cable. The connection plug (63A) is located on the back of the device. Provide a cable that is long enough for your application and thick enough to deliver the high power.
- Caution: this device operates on 3 x 400 V and requires a suitable fuse, heavy enough to deliver the high power.
Benefits
- Does not consume oxygen and does not emit moisture or odors. Suitable for heating rooms where there is no ventilation and people are working
- High-quality stainless steel resistance
- Thermal protection against overheating
- Powder-coated steel housing and plastic handle prevent rust formation
Technical data
- Heat output kW 22
- Heat type Ventilated air
- Energy source Electric
- Thermostat Yes
- Total consumption W 145/1100/22000
- Power consumption kW 22
- Heatable area m³ 1276
- Voltage V 3x400
- Frequency Hz 50
- Main fuse A 40
- Noise level dB(A) 59
- Mobile Yes
- Weight kg 19.20
- Dimensions (lxwxh) mm 430x430x600
Scope of delivery
- In box
