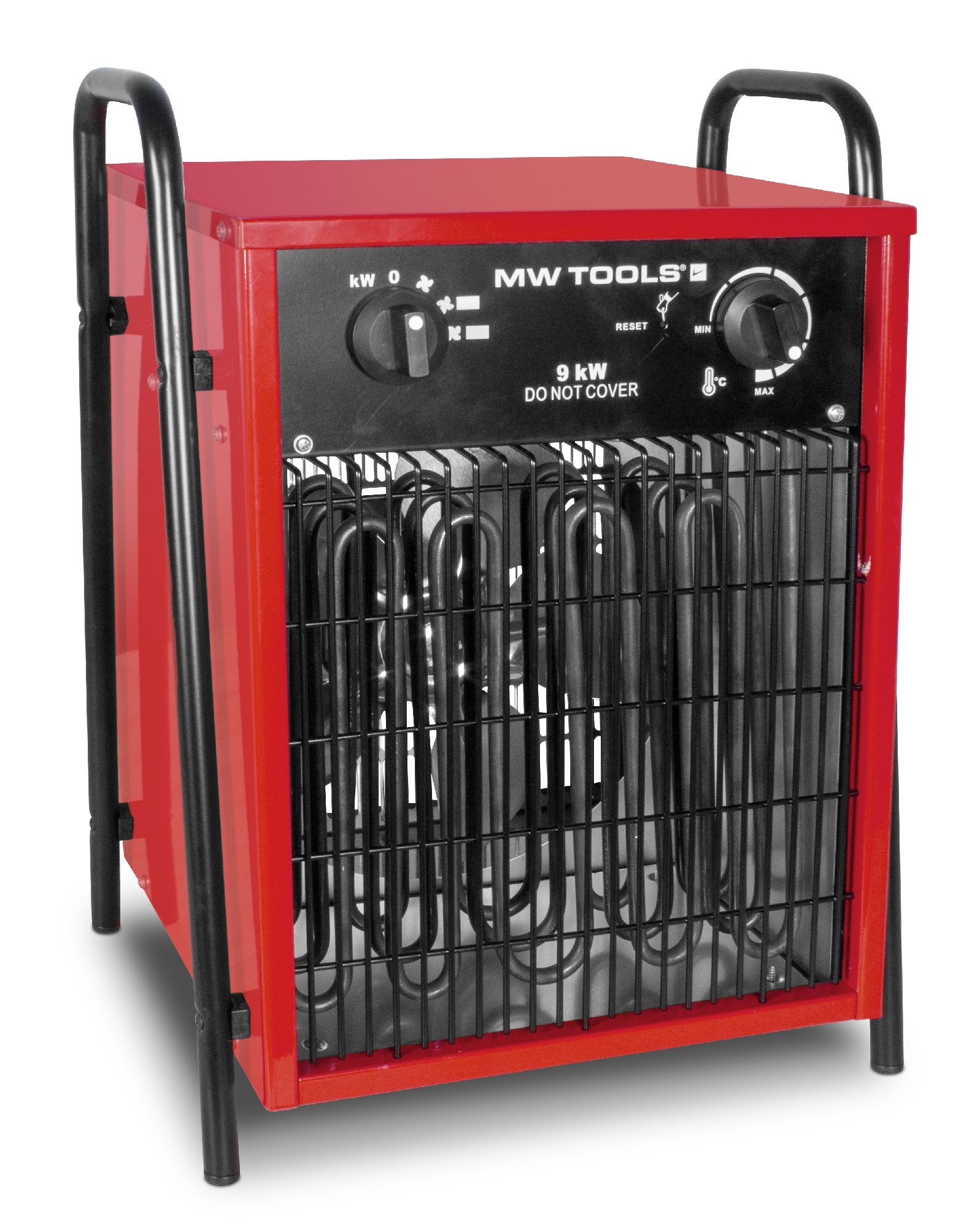

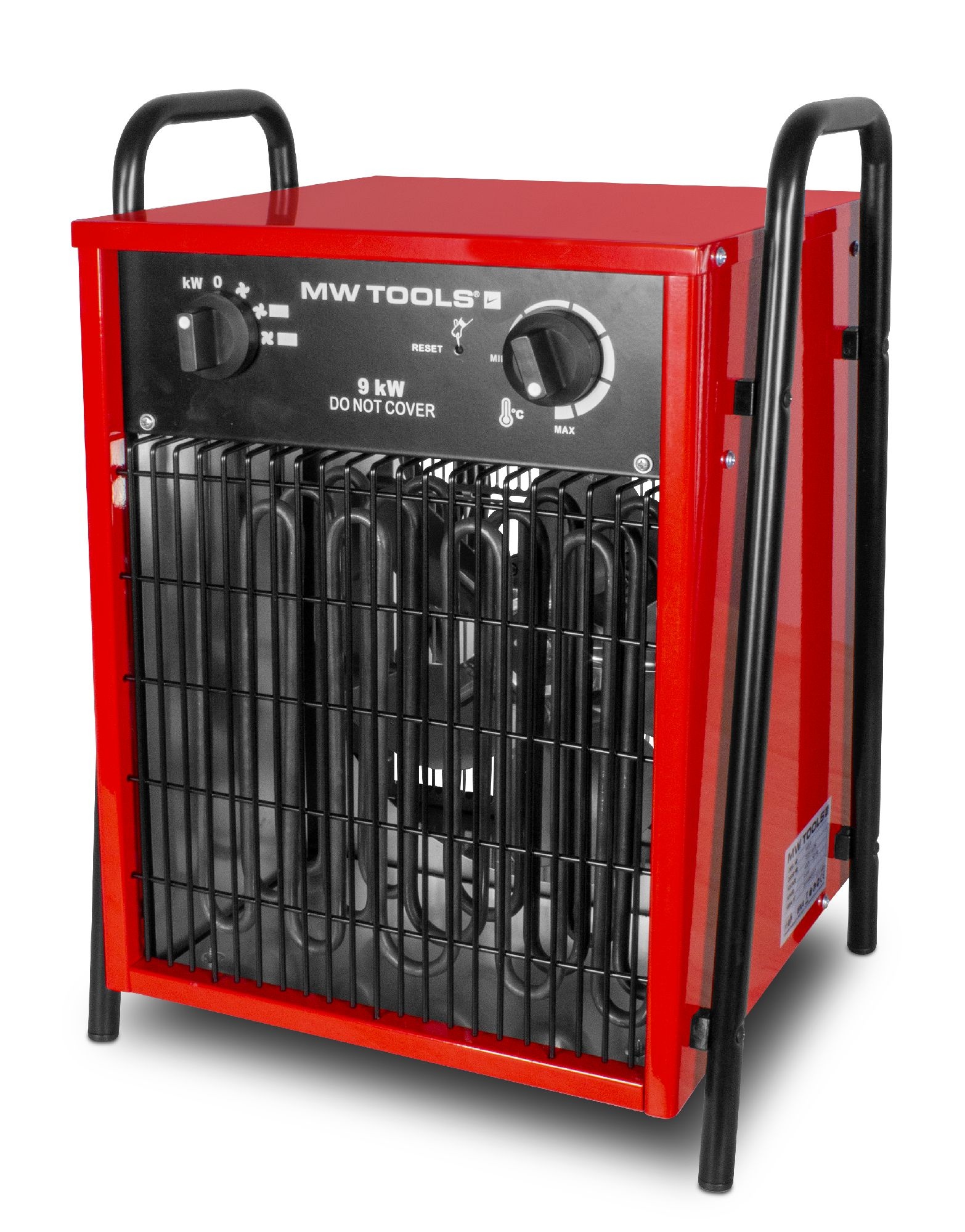

Metal Works WEL09 Electric Heater 9kW 3x400V
Special Features
- Electric heater 9kW.
- Suitable for heating rooms up to 520m³, depending on the insulation and ventilation of the room. The better the insulation value of the building elements (lower K-value), the larger the space you can heat.
- Maximum heatable volume of 520 m³, at a K-value of 0.5: provided the building is well insulated according to recent building standards.
- Minimum heatable volume of 100 m³, at a K-value of 2.5: provided the building is not insulated, has single glazing, solid brick walls, a roof with old corrugated sheets, or for spaces where gates are regularly opened.
- Suitable for heating offices and medium-sized spaces, as well as for keeping liquid storage areas frost-free, among other things.
- Does not consume oxygen and does not emit moisture or odors.
- High-quality stainless steel resistance.
- Thermally protected against overheating.
- Powder-coated steel housing and plastic handle prevent rust formation
Advantages
- Built-in thermostat with control knob
- Multi-position switch for fan
- IPX4 splash-proof for use in damp rooms
- CE approved
- Supplied without cable. The connection plug (16A) is located on the back of the device. Provide a cable that is long enough for your application and thick enough to deliver the high power.
- Caution: this device operates on 3 x 400 V and requires a suitable fuse, heavy enough to handle the high power.
Technical data
- Heat output kW 9
- Heat type Ventilated air
- Energy source Electric
- Thermostat Yes
- Total consumption W 52/4500/9000
- Power consumption kW 9
- Heatable area m³ 520
- Voltage V 3x400
- Frequency Hz 50
- Air flow rate m³/h 1198
- Main fuse A 16
- Noise level dB(A) 55
- Mobile Yes
- Weight kg 9.60
- Dimensions (lxwxh) mm 355x300x490
Scope of delivery
- In box
