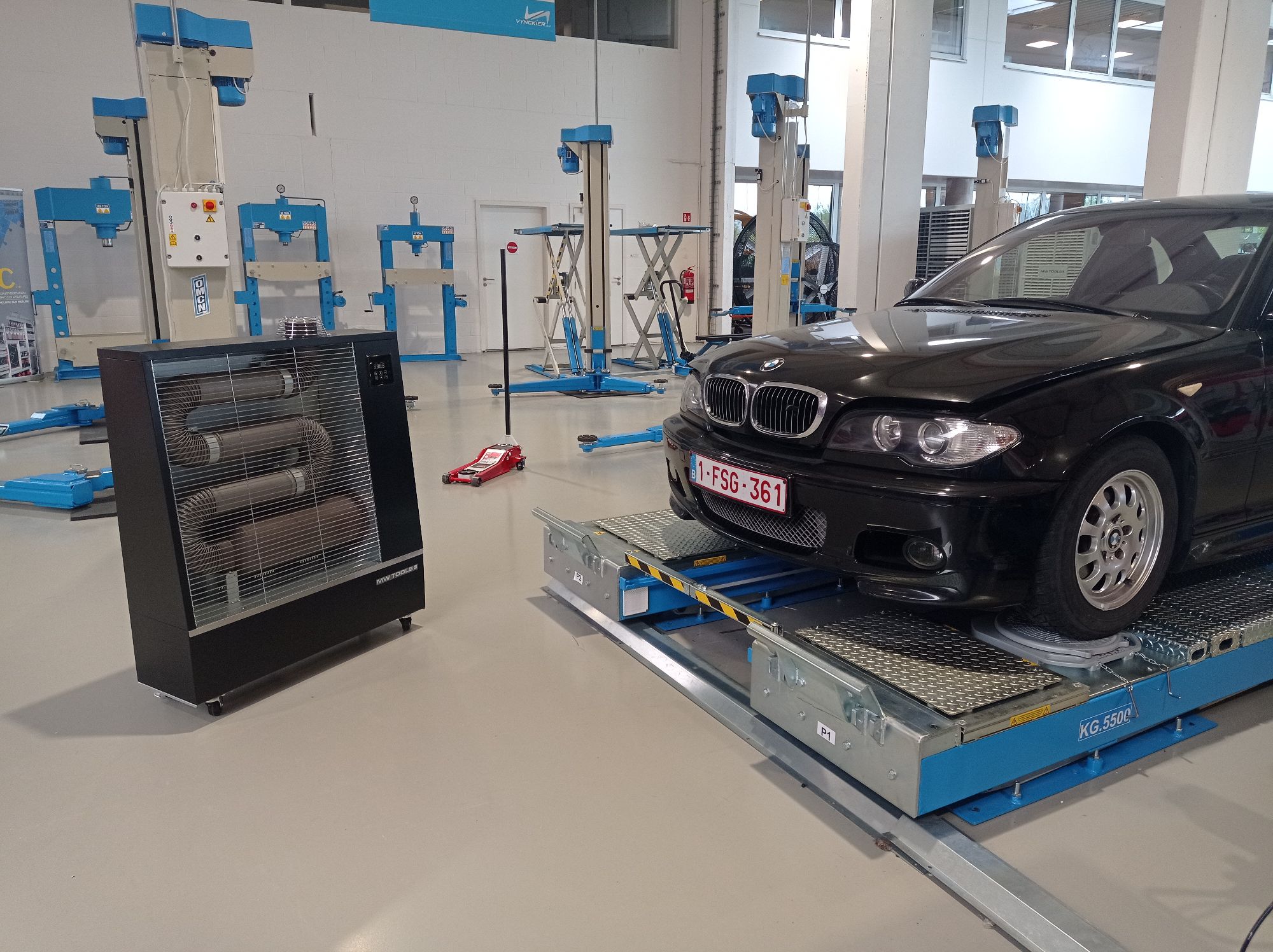

MW-Tools WD66I Diesel Infrared Heater 20kW
Gas too expensive? Heat with diesel in your workshop, garage, etc.
Special Features
- Suitable for heating spaces from 200 to 1200 m³, depending on the insulation and ventilation of the space. The better the insulation value of the building elements (lower K-value), the larger the space you can heat.
- Minimum heatable volume of 200 m³, at a K-value of 2.5: in case the building is not insulated, with single glazing, solid brick walls, a roof with old corrugated sheets, or for spaces where gates are regularly opened.
- Maximum heatable volume of 1200 m³, at a K-value of 0.5: in case the building is well insulated according to recent building standards
- Suitable for professional and temporary use in spaces that are sufficiently ventilated.
- Easy to move thanks to 4 swivel casters
- Extensive LCD display showing: current temperature, thermostat temperature, timer setting and display lock
- Alarm indicators for: ignition failure, low fuel level, overheating and anti-tipping protection
- Limited Installation depth of 305 mm, takes up little space against a wall
- Suitable for rooms with adequate ventilation.
- Overheating protection
- 1.5 m long power cable with plug
- 4 freely rotating wheels 65 mm
- Protection class IP24
Advantages
- The infrared heater with large radiating surface emits the pleasant warmth evenly into the surrounding room. The large surface area of the heater ensures even and gentle heat radiation at the right height for both standing and sitting work. Large 70-liter tank, for an extremely high autonomy of 40 hours (5 to 6 working days). Low noise. At only 48 decibels, this heater operates almost silently. Low odor. Flue gases are completely burned. No air displacement. The heat is distributed thanks to the glowing steel tubes; there is no fan and therefore no disturbing wind or noise pollution as with classic hot air blowers. High-quality Korean heater technology ensures complete combustion, and the cleanest possible emissions. Environmentally friendly: 99.9% of the fuel is burned. Optional flue gas exhaust; removes gases and smoke, reduces eliminates indoor odor nuisance, and simultaneously recovers excess heat from the discharged gases
- Operates on both fuel oil and diesel
- High-quality Danfoss nozzle, widely available commercially
- Built-in 0-40°C thermostat on the digital control panel
- Compact design. With its limited installation depth of only 305 mm, this heater is positioned compactly against a wall without blocking the passage. Technical data Heat output kW/h 20 Heat type Radiant heat Energy source Diesel / Petroleum / Fuel oil Thermostat Features Fuel tank capacity l 70 Fuel consumption l/h 1.88 Heatable space m³ 200-1200 Voltage V 230 Autonomy h 40 Cable 1.5" Mobile Yes Frequency Hz 50 Noise level dB(A) 48 Power consumption kW 0.08
- Weight kg 65.00
- Dimensions (lxwxh) mm 1150x305x1.115
Scope of delivery
- On Pallet
- Delivered without flue gas exhaust!
