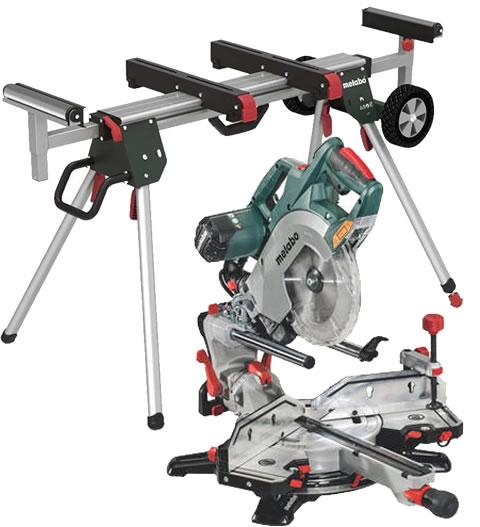

Metabo 690972000 KGSV 72 XACT SYM Miter saw with pull function + KSU251 Stand + 5-year dealer warranty
Special features
- Unique, patent-pending combination of panel saw with pull function and precision skirting board saw with symmetrically adjustable fence system
- Time-saving and precise miter cutting without calculating or measuring thanks to simple angle transfer from the adjustable square on the fence system
- Compact pull function for wide workpieces up to 305 mm; No space required behind the saw
- Maximum flexibility when sawing thanks to a table rotatable on both sides and a saw head tiltable on both sides
- Double line laser for exact display of the cutting line to the left and right of the saw blade
- Speed control for a wide range of applications, e.g. for sawing aluminium profiles and plastics
- With "multi-cut" saw blade (flat/trapezoidal tooth) for high cut quality and long service life, e.g. in laminate and aluminium profiles
- Compact lightweight with ergonomic carrying handles, ideal for mobile use
- Effective chip extraction via integrated chip collection funnel
- Fast and precise setting of common angles via locking points
- Bright LED work light for illuminating the sawing area (mains power, no batteries required) High, laterally sliding guides for safe sawing
- Depth stop for easy grooving
- Easy saw blade change thanks to spindle lock; no removal of the pendulum guard necessary
Technical data
- Dimensions 660 x 540 x 415 mm
- Sawing capacity 90°/90° 305 x 72 mm
- Sawing capacity 45°/45° 215 x 42 mm
- Dial setting left/right 50 / 50 °
- Saw blade tilt left/right 47 / 47 °
- Saw blade 216 mm
- Power input S1 100% 1500 W
- Power input S6 20% 1800 W
- Cutting speed 25 - 70 m/s
- Weight 18.3 kg
- Cable length 3 m
Standard Included
- Carbide saw blade (60-tooth)
- 2 integrated table extensions
- Adjustable square

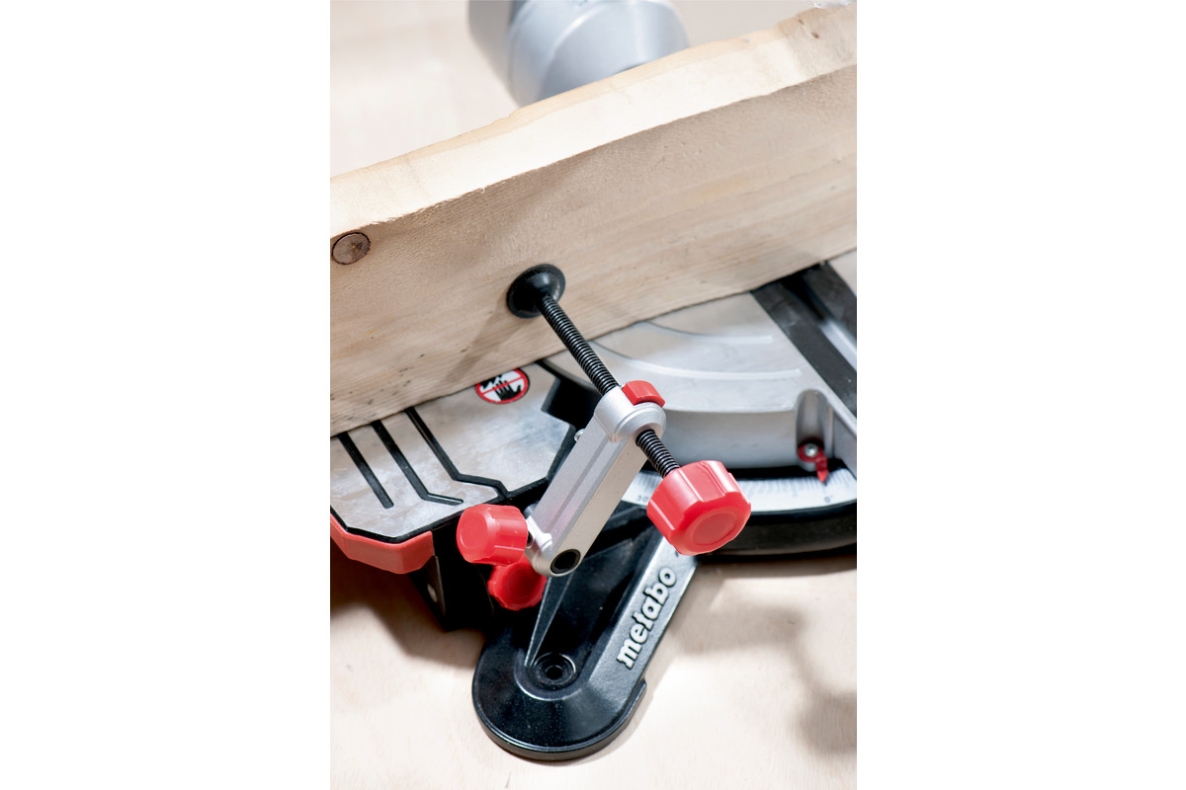

- Material clamp
- Saw blade change tool
- Cable winding
- In box
We have our own in-house service and repair workshop where we carry out repairs in-house. This benefits you as a customer; the downtime of your machine is thus kept to a minimum!
