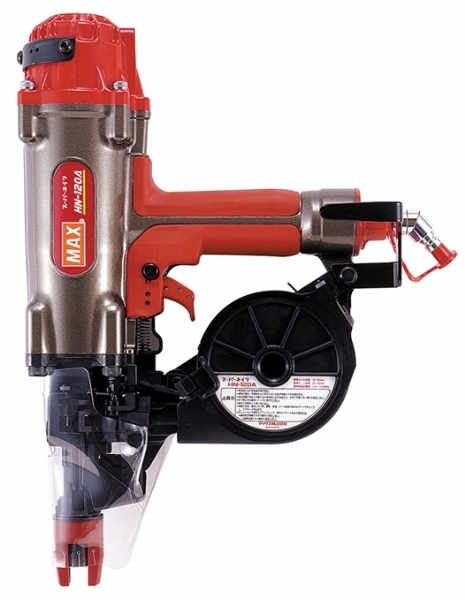

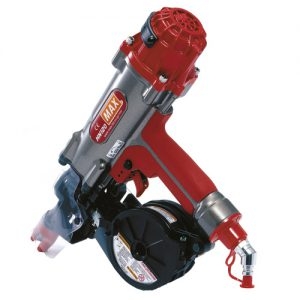

MAX THN92050 High Pressure Coil Nailer HN120 for concrete (B60) and steel - 23 Bar / 22-65 mm
Tired of gas fumes and gunpowder smoke, yet still want to shoot into concrete or steel? Then the HN120 is the solution for you!
The MAX HN120 is a powerful nail gun that shoots pneumatic nails into concrete (B60) and steel (11mm)!
Special features
- This powerful nail gun shoots nails and pins into concrete or steel under high pressure with virtually no recoil!
- Add to that the light weight and compact dimensions, and you have a unique device in your hands
- What also makes this nail gun ideal to work with is the swivel coupling; this ensures that the air hose moves with you and does not get tangled

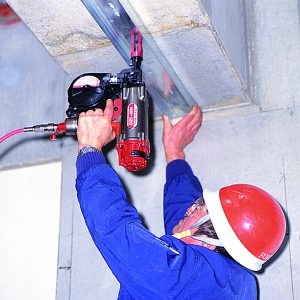

- The main tasks you can perform with this nail gun are: Fastening wood to concrete or steel, metal profiles to concrete, and floorboards to concrete
Tips
- To shoot nails and pins of different lengths, you must remove the magazine and possibly turn it over
- The nail gun comes with 3 Noses, 2 long and 1 short. You use the long nose if you want the head of the nail to remain on the material being shot. You use the short nose when you want the nail head to be countersunk into the material being fired, for example with wooden battens on steel or concrete.
Manual and Parts Drawing
- PDF Download our manual here
- PDF Download the parts drawing here
Technical Data
- Weight: 2.9 kg
- Dimensions (LxWxH): 315 x 85 x 400 mm
- Operation: Restrictive
- Nail length: 22 - 65 mm
- Nail diameter: 2.9 - 3.8 mm
- Magazine capacity: 50 nails
- Noise level: 110.0 dB
- Working pressure: 15 - 23 bar
- Air consumption per shot: 4.7 l at 23 bar
- Vibration: 9.16 m/s²
Scope of delivery
Includes
- 1x MAX THN92050 High Pressure Coil Nailer HN120 for concrete (B60) and steel - 23 Bar / 22-65 mm in case
- Manual
