MAX TCN96363 Coil Nailer CN565S2 - 7 Bar / 32-65 mm
Multifunctional coil nailer suitable for both wire-welded and plastic-band nails
Special features

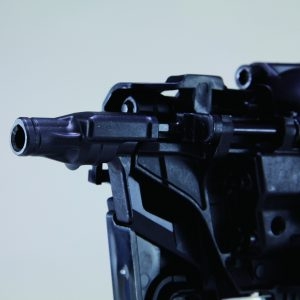

- This multifunctional coil nailer has a number of unique features, including the no-mark nose
- This special nose ensures that you never get a firing pin imprint on your work!

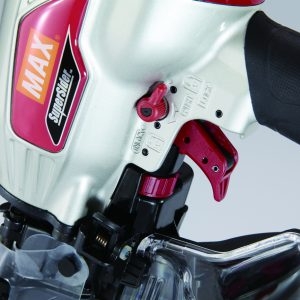

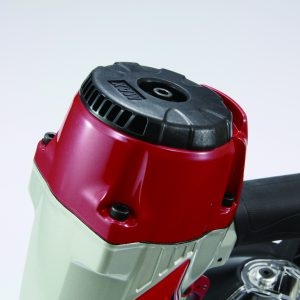

- Furthermore, the nailer is equipped with an anti-dirt filter, a rotatable air outlet, depth adjustment, prevention against double-firing a nail, and a patented mechanism for single-shot and repeat firing
- A nose piece for firing smooth materials is also included with this nailer
- This nailer processes plastic-band and wire-welded nails with a length of 32 to 65 mm
- The nailer is also suitable for stainless steel ball-head nails for, for example, the building garden sheds
- The main tasks you can carry out with this tacker are: All-round construction work, battens, cladding and timber frame construction. Additionally, with the special hardened nails, you can also fasten wood to metal or concrete (maximum B20)
Manual and Parts Drawing
- PDF Download our manual here
- PDF Download the parts drawing here
Technical Data
- Weight: 2.3 kg
- Dimensions (LxWxH): 275 x 127 x 302 mm
- Operation: Dual
- Nail length: 32 - 65 mm
- Nail diameter: 2.1 - 2.5 mm
- Magazine capacity: 300 nails
- Noise level: 98.8 dB
- Working pressure: 5 - 7 bar
- Air consumption per shot: 1.54 l at 7 bar
- Vibration: 4.38 m/s²
Scope of delivery
Including
- 1x MAX TCN96363 Coil Nailer CN565S2 - 7 Bar / 32-65 mm in box
- Manual
