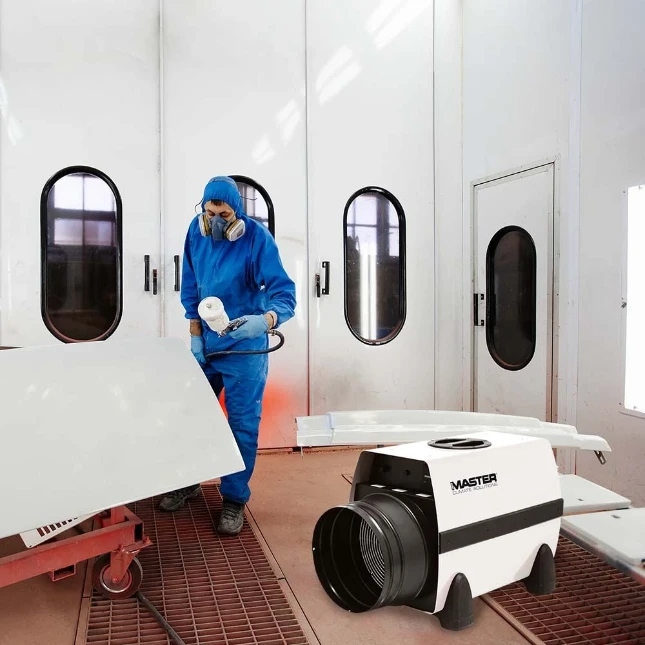

Master EKO18 Electric Heater 18 kW 400V
Special Features
- High-temperature electric heater highly suitable for process heating, thermal disinfection, and pest control.
Applications
- Industrial curing process - glass fiber composite materials are made with epoxy resin and must be heated to temperatures of approx. 75°C to cure. The Master EKO 18 is particularly suitable for uniform and high temperatures.
Technical Data
- Max. temperature 110 -120°C
- Temperature rise - variable
- Output temperature adjustable by changing the airflow
- Max. Air supply 60°C
- Compact and lightweight (20.5kg)
- EKO 18 delivers 1410m³/h of warm air with only 18kW, 400V (three-phase)
- Adjustable fan speed
- Safety thermostat: automatically switches off at more than 140°C in the duct
- Spiral heating element for fast and even heating
- Built-in hour counter
- Stackable
- Operating principle Electric
- Version Electric heater / heater
- Color White
- Width (mm) 414
- Total heating capacity 18 kW
- Connection voltage (V) 400 V
- Air volume (m³/h) 1410
- Number of power settings 1
- With ventilation setting Yes
