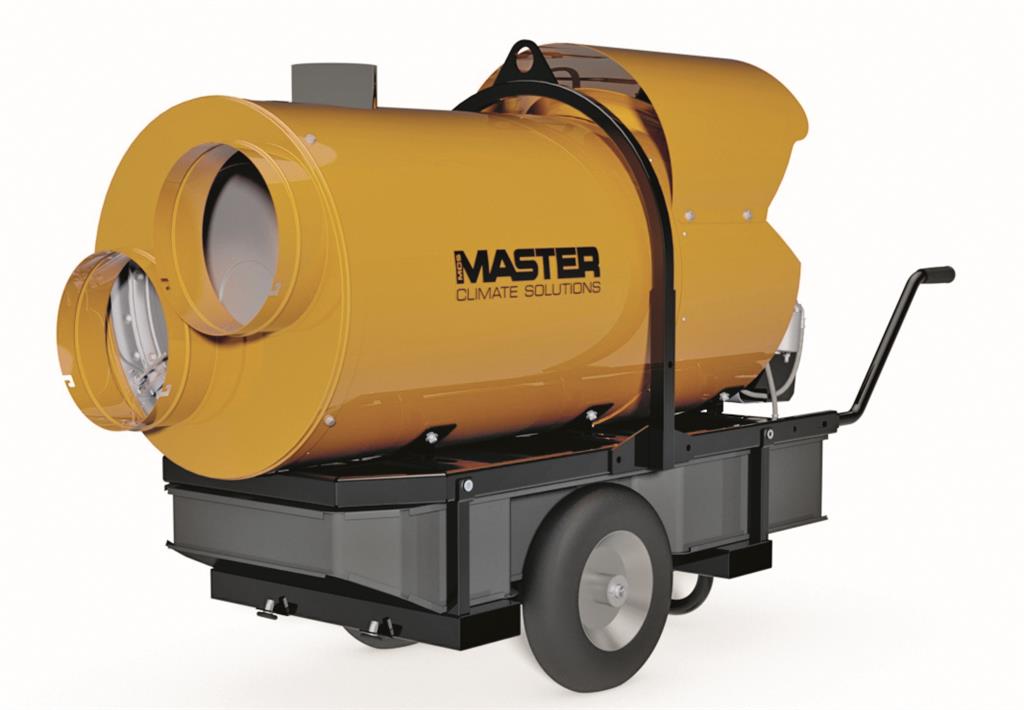

Master BV500-13CR Indirectly Heated Diesel Heater 150kW Radial Fan
Special Features
- Indirect diesel heater BV500-13C from Master with Separate Riello burner.
- Fan: radial
- Pure hot air
- Achieved pressure 770 Pa
- Gas outlet
- Combustion adjustment possible according to altitude
- Separate Riello burner with easy nozzle replacement
- It features windows that allow easy access to the heat exchanger for cleaning
- Fuel preheater
- Quick connection for electrical components
- Connection for external thermostat: analog and digital
- Summer-winter switch exclusively for ventilation
- High-capacity heat exchanger
- Combustion chamber made of stainless steel
- Snorkel
- Robust hook for crane-assisted movement
- Base included
- Air outlet diameter: 2 x 300 mm or 1 x 400 mm
Technical data
- Net weight (kg) 230
- Dimensions width 717 mm
- Dimensions height 1233 mm
- Dimensions length 2086 mm
- Protection IP43
- Fuel consumption 12.19 / 13.32 l/h
- Capacity 117 / 150 kW
- GS25-CAPACITY 1 400,000 / 500,000 BTU/h
- Capacity 2 101,000 / 126,000 kcal/h
- Pressure 12 bar
- Electrical power supply 220-240/50-60 V/Hz
- Indication current 14 A
- GS25 AIR PRESSURE 770 Pa
- Air volume flow 5000 m³/h
- Motor power 2000 / 1600 rpm
Standard included
- Pallet
- Manual
