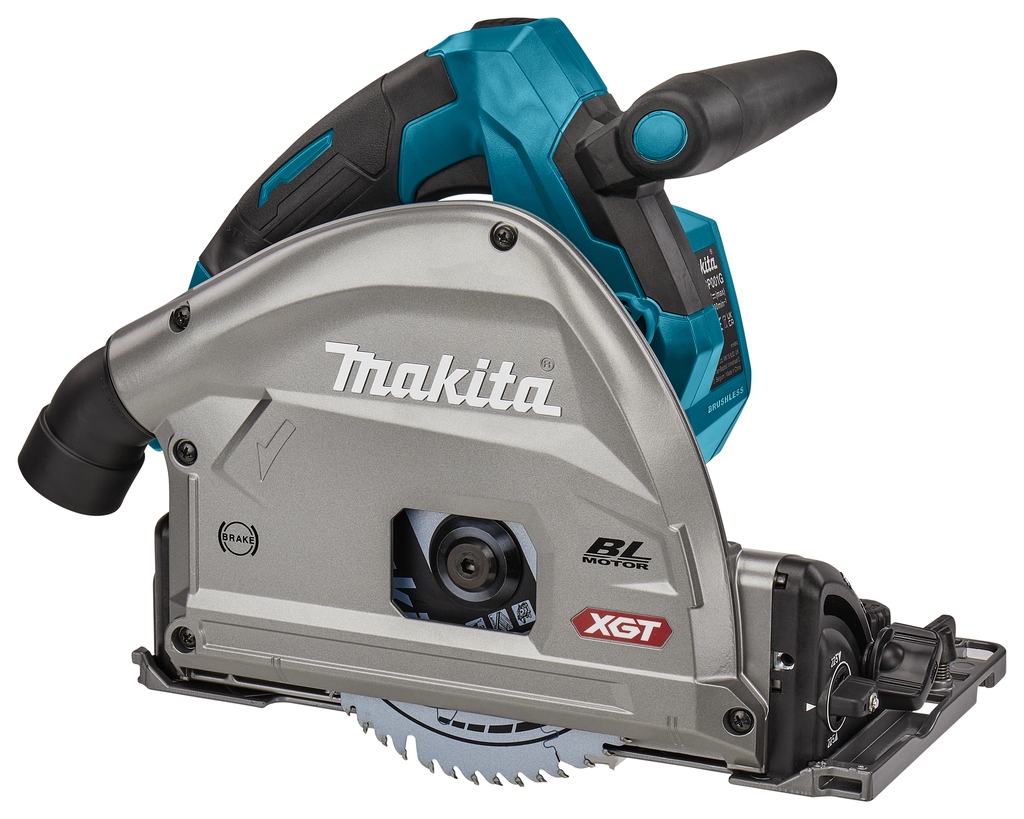

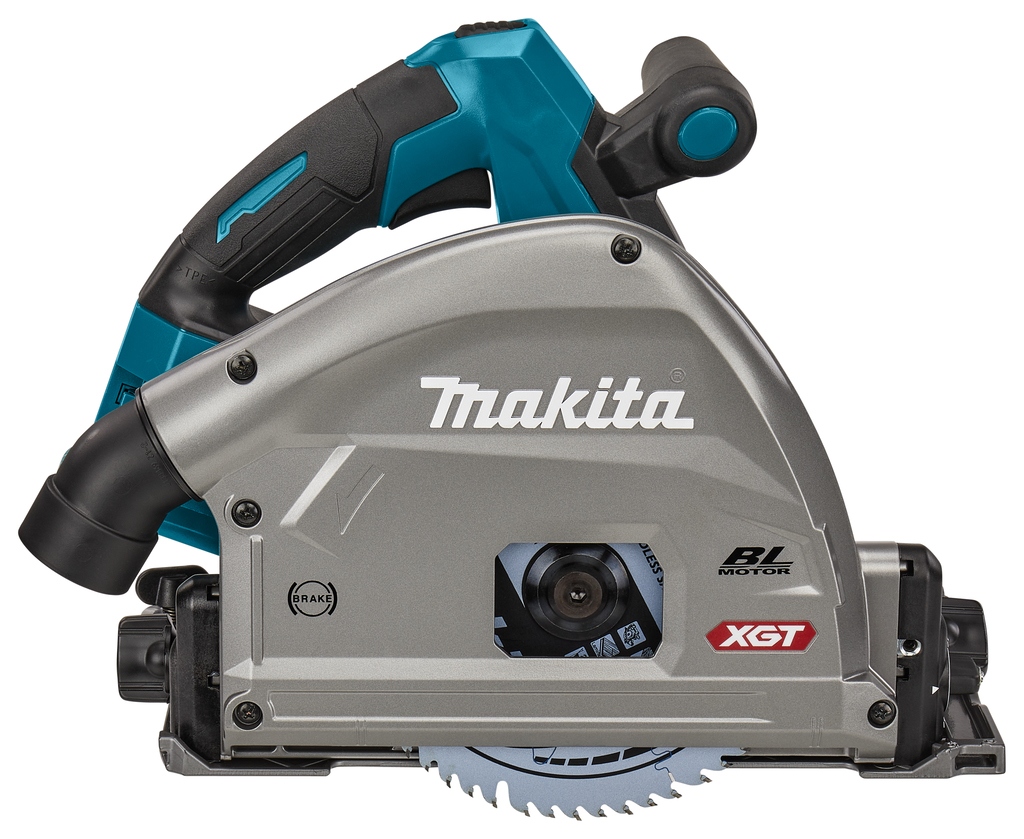

Makita SP001GU102 XGT 40V Max Cordless Plunge Saw Set 165 mm with AWS transmitter, 2x 1500 mm guide rails, coupling strip set and bag, 1x 4.0Ah battery and fast charger in case
Now a total of 5 years warranty on Makita SP001GU102 Machines(*)
(*) In addition to the Makita factory warranty (3 years after registration with Makita), you receive an extra 2 years TOOLPLUS* warranty from us. ToolNation TOOLPLUS* Warranty: 2 years extra Toolplus warranty on power tools
Special features
- Completely cordless and equipped with soft start technology, this plunge saw is comfortable to use.
- Equipped with Auto-start Wireless System (AWS) for wireless communication between the battery-powered machine and the battery-powered vacuum cleaner.
- Features constant speed: the machine maintains its speed even under load, ensuring clean cutting.
- Standard equipped with an Efficut saw blade, allowing the machine to cut faster and cleaner, and saw for longer on a single battery charge.
- The sawing speed can also be manually adjusted via a rotary knob.
- The motor is equipped with an electronic brake that stops the saw blade immediately.
- Ideal for precisely cutting sheet materials and solid wood panels to size, and for cutting out straight lines. recesses.
- Fast and easy splinter-free sawing thanks to the scoring function.
- Fast and clean sawing thanks to the constantly adjustable speed provided by the BL motor.
- Suitable for sawing sharp materials thanks to the variable speed control.
- The maximum sawing depth at 0° is 56 mm.
- Note: the maximum sawing capacity decreases by 4 mm as soon as the machine is on the guide rail.
- Tiltable from -1° to 48° with precise stops at 0°, 22.5°, and 45°.
- Sawing close to the wall: 18 mm minimum.
- Always the same cutting line, at every set angle.
Technical data
- Platform: XGT 40 V Max
- Max. Saw blade diameter: 165 mm
- Fits on guide rail: Directly
- Max. cutting capacity (height) 0°: 56 mm
- Max. cutting capacity (height) 45°: 40 mm
- Max. cutting capacity 48°: 38 mm
- Saw blade arbor hole: 20 mm
- Tilt: -1 / 48 °
- AWS: Yes
- Variable speed control (rotary knob): Yes
- No-load speed: 2500 – 4900 min⁻¹
- Spindle lock: Yes
- Voltage: 36 V
- Motor type: BL motor
- Constant speed: Yes
- Soft start: Yes
- Soft grip: Yes
- Guard material: Aluminium (Al)
- Base material: Magnesium (Mg)
- Electric brake: Yes
- Battery protection: Yes
- Sound pressure level (LpA): 89 dB(A)
- Uncertainty (K) (LpA): 3 dB(A)
- Sound power level (LWA): 100 dB(A)
- Uncertainty (K) (LwA): 3 dB(A)
- Dimensions (l × w × h): 347 × 221 × 271 mm
- Vibration ah wood sawing: 2.5 m/s²
- Vibration (K) wood sawing: 1.5 m/s²
- Vibration ah aluminium sawing: 2.5 m/s²
- Vibration (K) aluminium sawing: 1.5 m/s²
- Weight: 3.7 kg
- Weight with XGT BL4025 battery: 4.4 kg
- Weight with XGT BL4040(F) battery: 4.7 kg
- Weight with XGT BL4020 battery: 4.4 kg
- Weight with XGT BL4050F battery: 5.0 kg
Scope of delivery
- 1x Plunge saw
- 1x Battery BL4040F XGT 40 V Max 4.0Ah (1910N6-8)
- 1x Fast charger XGT DC40RA (191E07-8)
- 1x Guide rail coupling strip set (198885-7)
- 1x AWS transmitter WUT01 (198900-7)
- 1x Guide rail 1500mm (199141-8)
- 1x Right-angle Allen key 5mm (783203-8)
- 1x Mbox4 (821552-6)
- 1x Case insert/inlay SP001G (8351E4-2)
- 1x Wood Circular Saw Blade (B-57336)
- 1x Bag for guide rail 1500mm (E-05664)
