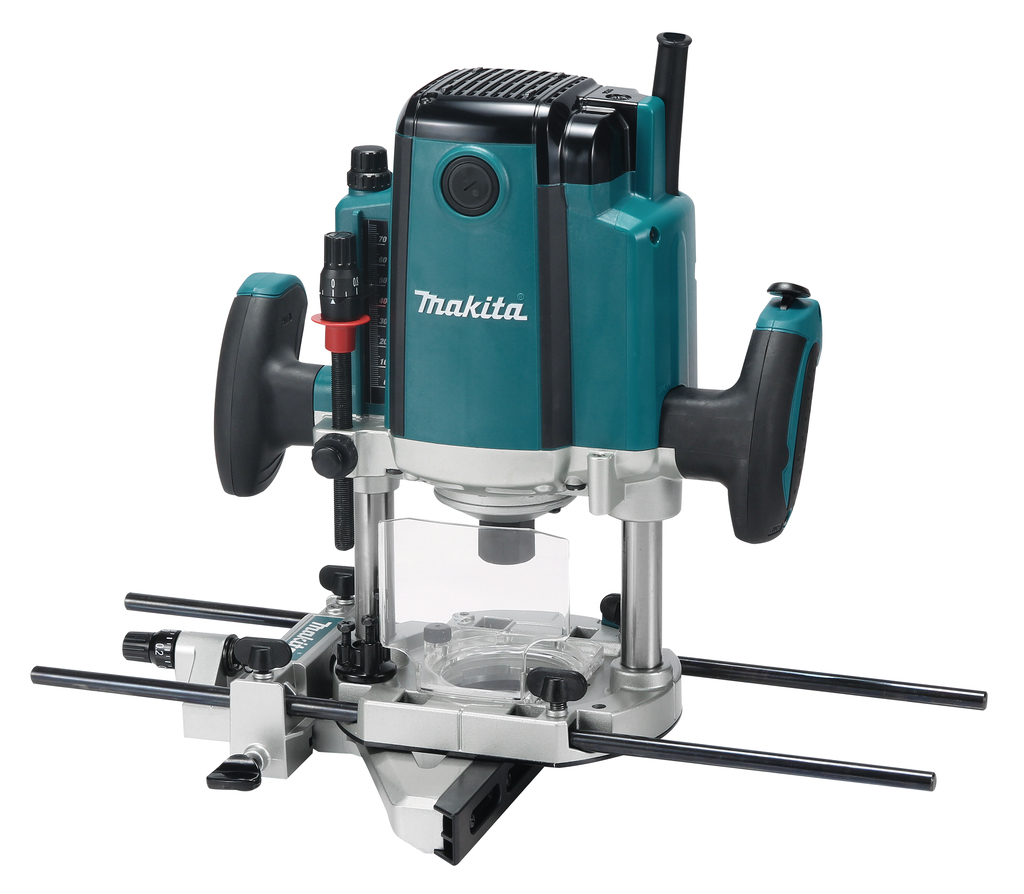

Makita RP1802X04 230V Router 12 mm with accessory set in box
Powerful router for heavy-duty applications, with smoothly adjustable plunger depth thanks to linear bearings in the telescopic guide. The depth is adjustable in 3 positions up to 70 mm, and the fine adjustment allows for precise settings to within 1/10 mm.
The machine is equipped with soft start and restart protection for a safe, quiet start-up. Copying rings can be changed without tools.
The router comes standard with handy accessories, including a parallel guide with fine adjustment, a trim guide, a 12 mm collet, and adapter bushings 12–6 / 12–8 mm.
Special features
- Powerful router for heavy-duty applications.
- Smooth-operating cutter, thanks to the linear bearings in the telescopic guide.
- Precise depth adjustment to within 1/10 mm possible through fine adjustment.
- Equipped with restart protection and soft start that ensures a quiet run-up.
- Standard equipped with many accessories: parallel guide with fine adjustment, trim guide, 12 mm collet, adapter bushing 12–6 / 12–8 mm.
- Copying ring change possible without tools.
- Easy cutter replacement with 1 key thanks to spindle lock.
- Depth adjustment in 3 positions.
- Plunger depth up to 70 mm.
Technical data
- Platform: 230 V
- Shank diameter: 6 – 12 mm
- Maximum plunge depth: 70 mm
- Router base length: 155 mm
- Router base width: 170 mm
- Router base diameter: 170 mm
- Router copying ring fitting: 68 mm
- Maximum cutter diameter: 60 mm
- Fits on guide rail: Via adapter
- No-load speed: 23,000 min⁻¹
- Spindle lock: Yes
- Voltage (Voltage): 230 V
- Power consumption: 1,850 Watts
- Restart protection: Yes
- Soft grip: Yes
- Dimensions (l × w × h): 155 × 294 × 312 mm
- Cable length: 4.0 m
- Sound pressure level (LpA): 85 dB(A)
- Uncertainty (K) LpA: 3 dB(A)
- Sound power level (LWA): 96 dB(A)
- Uncertainty (K) LwA: 3 dB(A)
- Vibration when milling in MDF: 5.1 m/s²
- Vibration uncertainty (K) milling in MDF: 1.5 m/s²
- Weight: 6.2 kg
Scope of delivery
- 1x Guide holder router (122700-3)
- 1x Parallel guide fine adjustment router 3600B, 3600BR, 3600NBR, 3612, 3612BR, 3612C, 3620, DRT50, M3600, M3602, RP0900, RP1110C, RP1111C, RP1800F, RP1802F, RP2300FC, RP2302FC, RP2303FC, RT0700C, RT0702C (195136-9)
- 1x Copy ring 16mm (344364-5)
- 1x Reducer bushing cutter 12-6mm 3600B, 3600BR, 3600NBR, 3601B, 3612, 3612BR, 3612C, M3600, M3602, RP1800F, RP1802F, RP2300FC, RP2302FC, RP2303FC (763801-4)
- 1x Reducer bushing cutter 12-8mm 3600B, 3600BR, 3600NBR, 3601B, 3612, 3612BR, 3612C, M3600, M3602, RP1800F, RP1802F, RP2300FC, RP2302FC, RP2303FC (763804-8)
- 1x Open-end wrench 24mm 3612, 3612C, MLT100N, RP1800F, RP2300FC (781030-7)
- 1x Dust extraction adapter router RP1800F, RP2300FC (122850-4)
