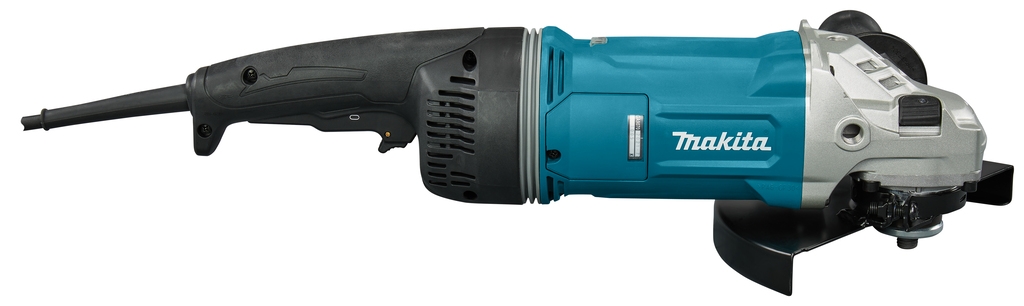

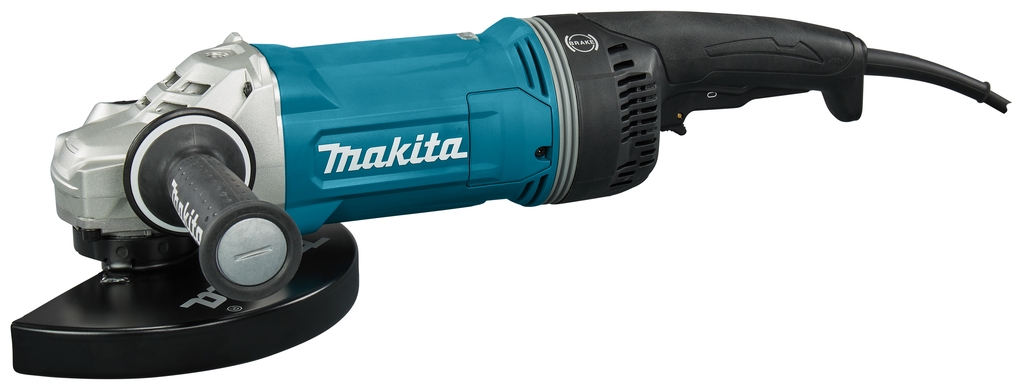

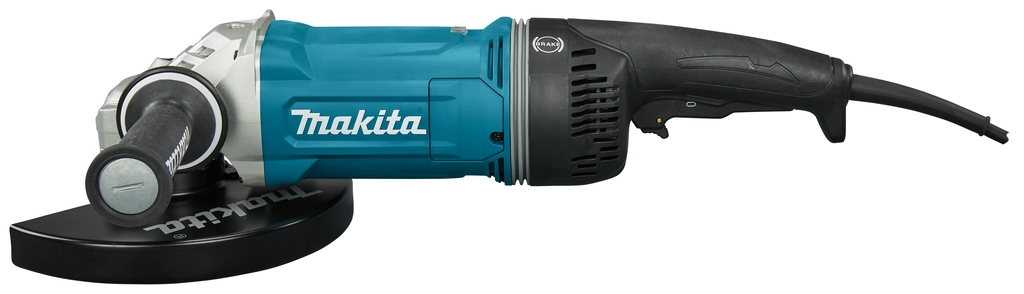

Makita GA9070YX1 230 V Angle Grinder 230 mm
Special Features

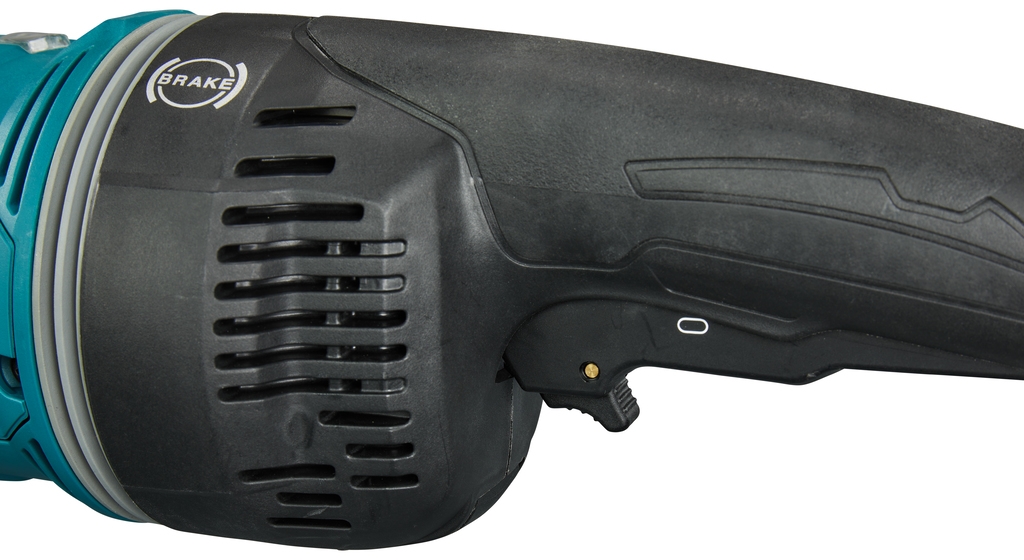

- Starting current limiter and mechanical motor brake for a smooth start and a very short run-out time.
- Arbor with patented zigzag coating and powder-varnished windings protect the motor against damage from grit.
- Automatically shutting off carbon brushes to protect the commutator.
- The AFT function switches off the motor immediately when the disc suddenly jams.
- The bearings are completely shielded from dust and grit thanks to the labyrinth system.
- Rotating rear handle with rubber coating for greater user comfort and side handle in anti-vibration design
- Machined helical gears guarantee smooth power transmission, low-noise operation, and excellent service life. of the transmission.
- Bearing-mounted inner flange for quick and easy grinding disc replacement.
- Extremely powerful angle grinder with soft start for comfortable working in the toughest conditions.
- Equipped with dead man's switch (cannot be locked in the ON position).
- Increased safety thanks to electronic start-up protection which prevents unexpected starting after a power interruption.
Technical data
- Soft start: yes
- Soft grip: yes
- Connection/chuck: M14x2
- Spindle lock: yes
- Constant speed: yes
- Overload protection: yes
- Rotating rear handle: 3 positions
- Restart protection: yes
- (Safety) slip clutch: yes
- Mechanical brake: yes
- Switch type: Safety switch
- Handle type: straight grip
- Voltage: 230 V
- Power consumption: 2800 Watts
- Disc diameter: 230 mm
- No-load speed: 6600 min-1
- Sound pressure level (LpA): 91 dB(A)
- Dimensions lxbxh: 506x250x146 mm
- Weight (EPTA): 6.3 kg
- Vibration (K) surface grinding with AV grip: 1.5 m/s²
- Disc bore: 22.23 mm
- Cup brush diameter: 90 - 100 mm
- Maximum cup brush diameter: 100 mm
- Minimum round brush diameter: 100 mm
- Cable length: 2.5 m
- Maximum cup disc diameter: 180 mm
- Vibration (K) sanding: 1.5 m/s²
- Cup disc diameter: 180 mm
- Uncertainty (K) (LwA): 3 dB(A)
- Sound power level (LWA): 102 dB(A)
- Vibration ah surface grinding with AV grip: 4.8 m/s²
- Maximum no-load speed: 6600 revolutions per minute
- Maximum round brush diameter: 175 mm
- Maximum disc diameter: 230 mm
- Uncertainty (K) (LpA): 3 dB(A)
- Vibration ah sanding with AV grip: 2.6 m/s²
- Minimum conical brush diameter: 100 mm
- Vibration ah surface grinding: 4.9 m/s²
- Round brush diameter: 175 mm
- Maximum conical brush diameter: 115 mm
- Vibration (K) surface grinding: 1.5 m/s²
- Vibration ah sanding: 2.5 m/s²
- Vibration (K) sanding with AV grip: 1.5 m/s²
Scope of delivery
- In box, with safety switch
