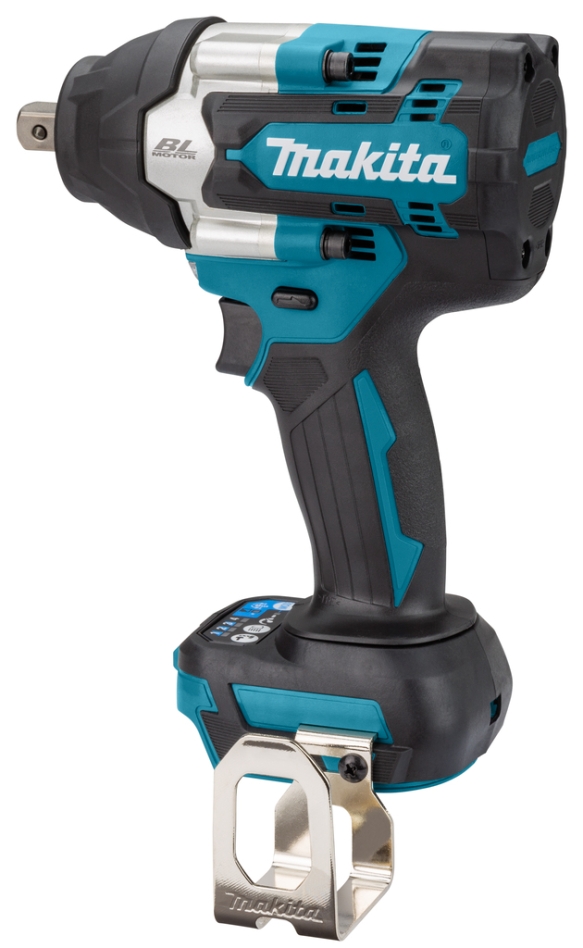

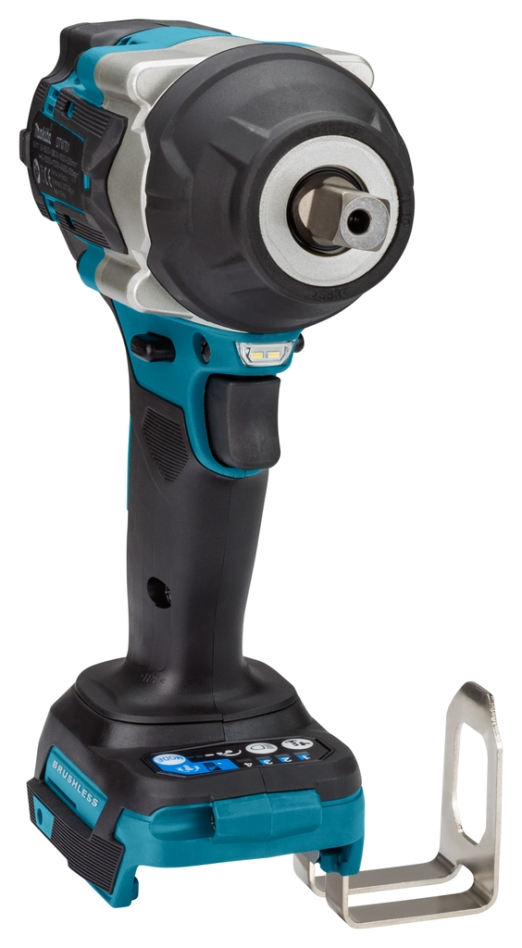

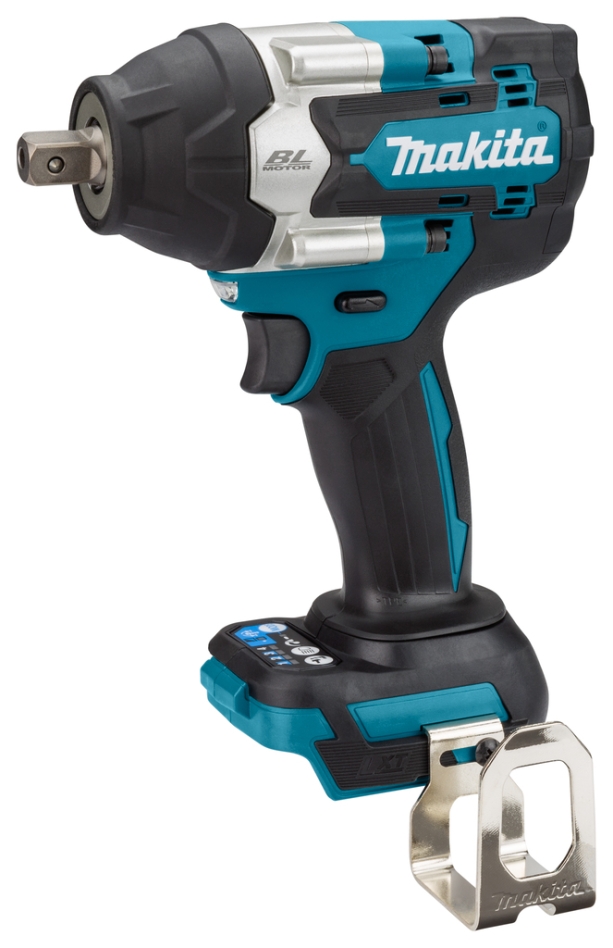

Makita DTW701ZJ Impact Wrench 18 Volt 1/2" excl. batteries and charger + 5 years dealer warranty!
Now a total of 5 years warranty on Makita DTW 700 Machines(*)
(*) In addition to the Makita factory warranty, you receive an extra 2 years TOOLPLUS* warranty from us. ToolNation TOOLPLUS* Warranty: 2 years extra Toolplus warranty on power tools
Features DTW701
- Note: Equipped with ½” square drive with spring-loaded locking pin (DTW700 is equipped with ½” square drive with friction ring and hole for locking pin).
- Impact wrench with 4 adjustable speeds for matching the tightening torque to the workpiece.
- 3 Bolt settings: Prevents bolts from being overtightened and Auto stop mode when reversing.
- Auto stop mode when reversing. The machine stops automatically as soon as the bolt or nut has been sufficiently loosened or can continue rotating at a low speed.
- Equipped with variable speed control in the switch.
- Equipped with maximum speed function; partially pressing the switch increases the speed to maximum.
- Digitally adjustable: all-round machine for heavier connections, with a wide range (M14-M24).
- Maximum torque of 700 Nm.
- Relatively compact and well-balanced, making it extremely maneuverable in hard-to-reach places.
- Durable, energy-efficient, and maintenance-free brushless motor with electronic control.
- Durable thanks to protection against overload, overheating, and deep discharge of the battery.
- With LED lighting for better visibility of the work.
Technical data DTW701
- Platform LXT 18 V
- Connection/chuck 1/2" square pin
- Bolt/screw 4.6 metric 10 - 30 mm
- Bolt/screw 8.8 metric 8 - 24 mm
- Bolt/screw 10.9 metric 6 - 22 mm
- Bolt/screw 12.9 metric 6 - 20 mm
- Max. torque (setting 1) 150 Nm
- Max. torque (setting 2) 200 Nm
- Max. torque (setting 3) 320 Nm
- Max. torque (position 4) 700 Nm
- Max. disassembly torque 1000 Nm
- Var. speed control (switch)
- Var. speed control (digital)
- Rotating left and right
- Left-hand auto stop mode
- Number of electric speeds 4
- No-load speed (setting 1) 0 - 500
- No-load speed (setting 2) 0 - 1200
- No-load speed (setting 3) 0 - 1900
- No-load speed (setting 4) 0 - 1900 min-1
- Number of strokes (setting 1) 0 - 1000
- Number of strokes (setting 2) 0 - 1700
- Number of strokes (setting 3) 0 - 2400
- Number of strokes (setting 4) 0 - 2700 min-1
- Volt (voltage) 18 V
- Motor type BL motor
- Built-in lighting
- Soft grip
- Electric brake
- Battery protection
- Dimensions lxbxh 170x81x276 mm
- Vibration ah mounting up to max. 19.0 m/s²
- Vibration (K) mounting up to max. 2.0 m/s²
- Sound pressure level (LpA) 94 dB(A)
- Uncertainty (K) (LpA) 3 dB(A)
- Sound power level (LWA) 105 dB(A)
- Uncertainty (K) (LwA) 3 dB(A)
- Weight (EPTA) 1.98 kg
Standard included:
- 251314-2 Screw M4X12
- 347723-2 Carrying hook
- 821551-8 Mbox no.3
- 837645-9 Inlay for M-box
- Supplied without batteries and charger
*Toolnation, as the sole supplier of Makita, extends the warranty from 3 to 5 years. We take over the warranty provisions after the 3rd year and keep track of them in our computer system.
Dealer warranty:
Toolnation is an official Makita dealer and offers you a full warranty in accordance with the terms of
