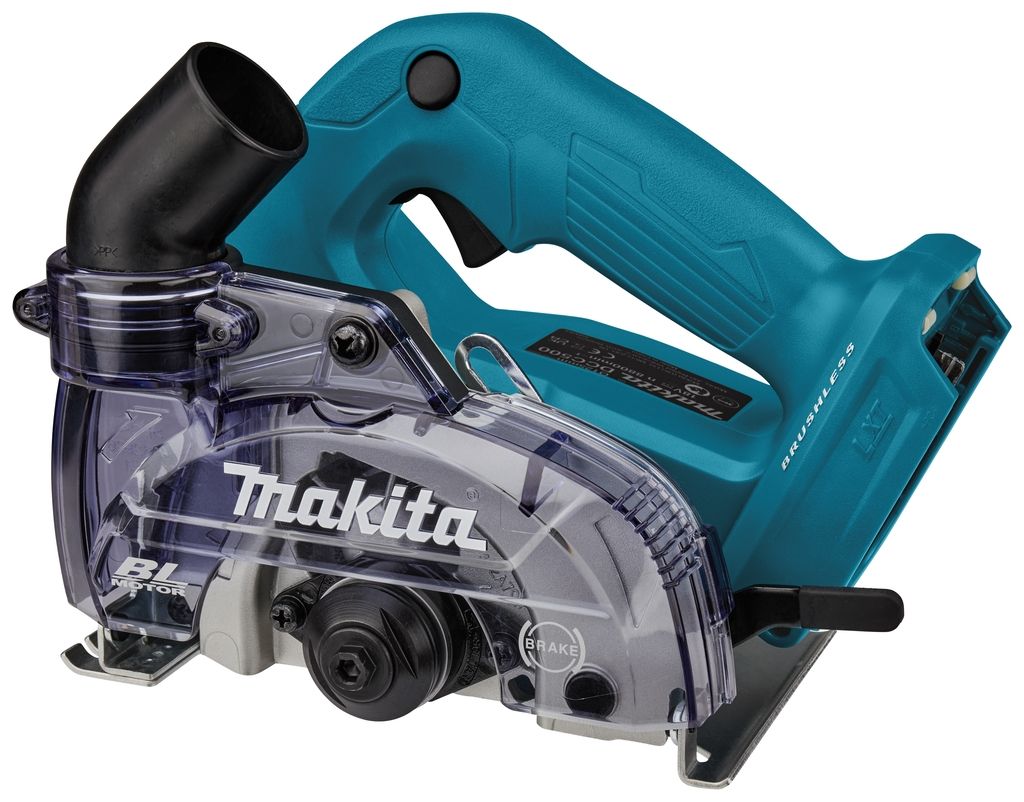

Makita DCC500ZJX6 18 V Diamond Cutter wet and dry 125 mm excl. battery and charger
Special features
- Diamond cutter for dry and wet use.
- Maximum cutting depth is 40 mm.
- Equipped with a 360° rotatable dust extraction connection.
- Diamond cutter for dry and wet use. Maximum cutting depth is 40 mm.
- Equipped with a 360° rotatable dust extraction connection.
- Fits on the Makita guide rail thanks to optional adapter(198673-2). For extra safety and precision.
- Equipped with Auto-start Wireless System (AWS) for wireless communication between battery-powered machine and battery-powered vacuum.
- Features Automatic Torque Drive Technology (ADT): the machine electronically adjusts the cutting speed and torque to maintain power when resistance is encountered.
- Integrated LED lighting for better visibility of the work.
- Suitable for outdoor use, well protected against the ingress of dust and moisture thanks to eXtreme Protection Technology (XPT).
- Miter setting up to 45° with a maximum grinding depth of 27 mm.
Technical data
- Platform: LXT 18 V
- Disc diameter: 125 mm
- Disc arbor hole: 20 mm
- Blade thickness: 1.0 - 2.2 mm
- No-load speed: 8800 min-1
- Volt (voltage): 18 V
- Motor type: BL motor
- Spindle lock: Yes
- Soft start: Yes
- Electric brake: Yes
- Soft grip: Yes
- Built-in lighting: Yes
- Base material: Sheet steel
- Dimensions lxbxh: 283x158x172 mm
- Sound pressure level (LpA): 96 dB(A)
- Uncertainty (K) (LpA): 3 dB(A)
- Sound power level (LWA): 107 dB(A)
- Uncertainty (K) (LwA): 3 dB(A)
- Vibration ah cutting concrete: 4.0 m/s²
- Vibration (K) cutting concrete: 1.5 m/s²
- Weight (EPTA): 2.0 kg
- Weight with low LXT 18 V battery: 2.5 kg
- Weight with high LXT 18 V battery: 3.0 kg
- Diamond cutter wet/dry: Dry and Wet
- Base Material: Sheet steel
- Maximum cutting depth 0°: 40 mm
- Maximum cutting depth 45°: 27 mm
- Maximum disc Ø: 125 mm
Scope of delivery
- 126738-0 Linen dust bag
- 191X01-4 Water supply set
- 821551-8 Mbox3
- 835U78-8 Insert DCC500
- 783217-7 Allen key 5 mm
