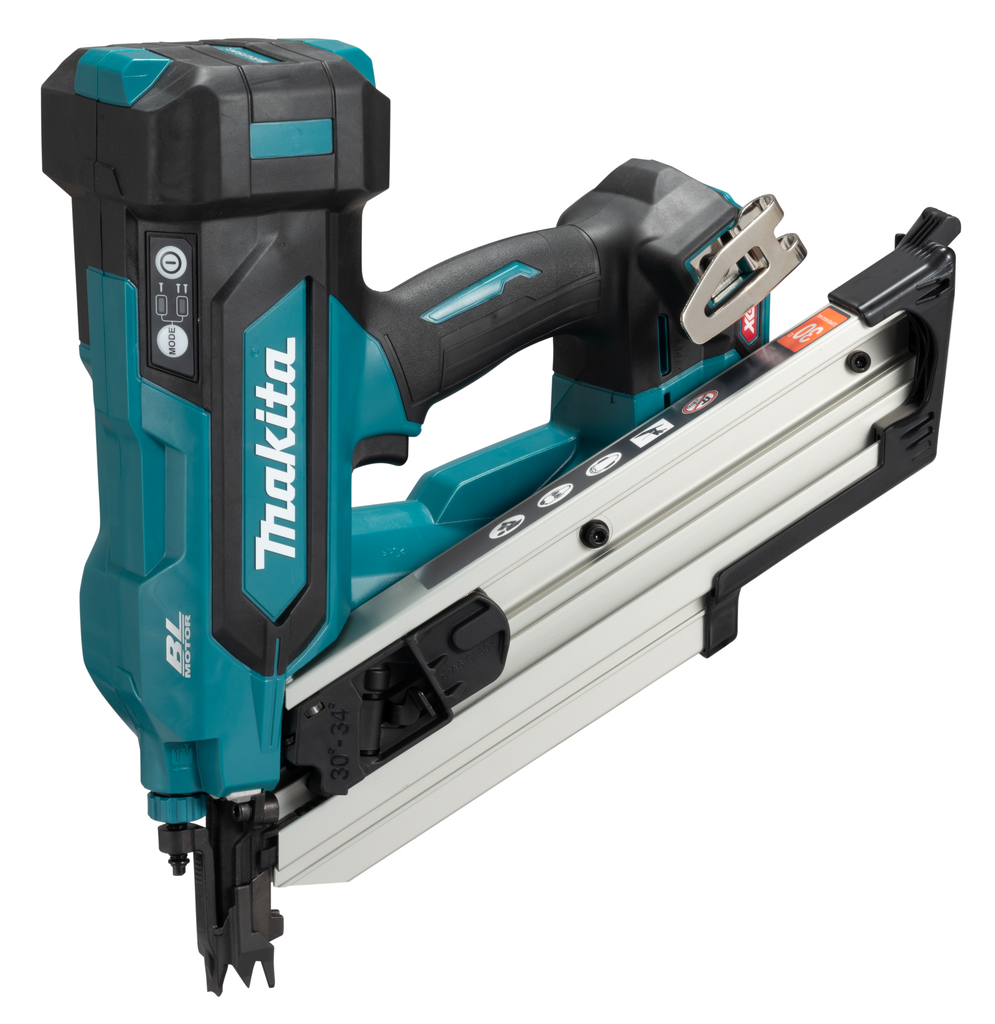

MakitaBN001GZ XGT 40V Max Cordless Construction Stapler D-head excl. battery and charger in case
This construction stapler with BL motor is fully battery-powered. This saves you on operating and maintenance costs and allows you to work with complete freedom of movement. It processes D-head nails on strips from 50 to 90 mm, making it ideal for various jobs such as wooden structures, sheet material on structural timber, and roof battens.
The machine has two settings allowing you to choose between single or continuous firing. The anti-slip nose provides extra grip on the material, and there is a safety mechanism to prevent dry firing. You can easily adjust the nail depth with the depth setting, and the LED lighting ensures good visibility of your work.
Special features
- Powerful XGT 40 V MAX construction tacker for D-head nails 50-90 mm on strip 30° - 34°.
- Operates entirely on battery, resulting in low operating and maintenance costs as gas cartridges are unnecessary.
- High working speed thanks to a firing capacity of 4 nails per second
- Complete freedom of movement: no air compressor and compressor hoses required anymore.
- Machine can be used for single or continuous firing.
- Dry-fire protection; automatically stops at the last few nails, thus preventing damage to the workpiece.
- Equipped with a window for checking the nail stock.
- With built-in LED lighting that remains on after releasing the switch. This is useful in poorly lit areas.
- Anti-slip nose for extra grip
- Magazine for 1 strip of nails (+/- 40 pieces), optional magazine available for 2 strips (1917P3-0).
- Easy depth adjustment with rotary wheel.
- Suitable for wooden structures (with a maximum nail length of 90 mm).
- Equipped with BL motor.
- Suitable for fastening sheet materials such as OSB, underlayment, etc.
- Also suitable for fastening roof battens, laths, and framing.
- Maintenance: Regularly check and clean the moving parts to prevent dirt and dust accumulation. Remove dirt with compressed air or a dry cloth.
Technical data
- Platform: XGT 40 V Max
- Nail length: 50 – 90 mm
- Nail diameter: 2.9 – 3.3 mm
- Wood-to-wood mounting: Yes
- Operation: Single and continuous shot
- Depth adjustment: Yes
- Anti-dry-shoot mechanism: Yes
- Magazine type: Strip
- Magazine angle: 34°
- Magazine capacity: 58 pieces
- Voltage: 36 V
- Restart protection: Yes
- Soft grip: Yes
- Dimensions (LxWxH): 326 × 186 × 358 mm
- Sound pressure level (LpA): 90 dB(A)
- Uncertainty (K) (LpA): 3 dB(A)
- Sound power level (LwA): 101 dB(A)
- Uncertainty (K) (LwA): 3 dB(A)
- Vibration ah (fastening wood): 3.6 m/s²
- Vibration (K) (fastening wood): 1.5 m/s²
- Weight: 4.6 kg
- Weight with XGT BL4020 battery: 5.3 kg
- Weight with XGT BL4025 battery: 5.3 kg
- Weight with XGT BL4040(F) battery: 5.5 kg
