Mafell 9M0401 FM1000PV-ER Milling Motor 1000 Watt
Features
- MAFELL milling motors are manufactured in Oberndorf am Neckar and subjected to strict quality controls. Before delivery, every milling motor is ‘broken in’ in the test booth. This ensures a longer operating and service life.
- Maximum eccentricity thanks to the precise alignment of all components, such as the double-bearing spindle for absorbing axial forces and the innovative, tool-free quick-clamping system.

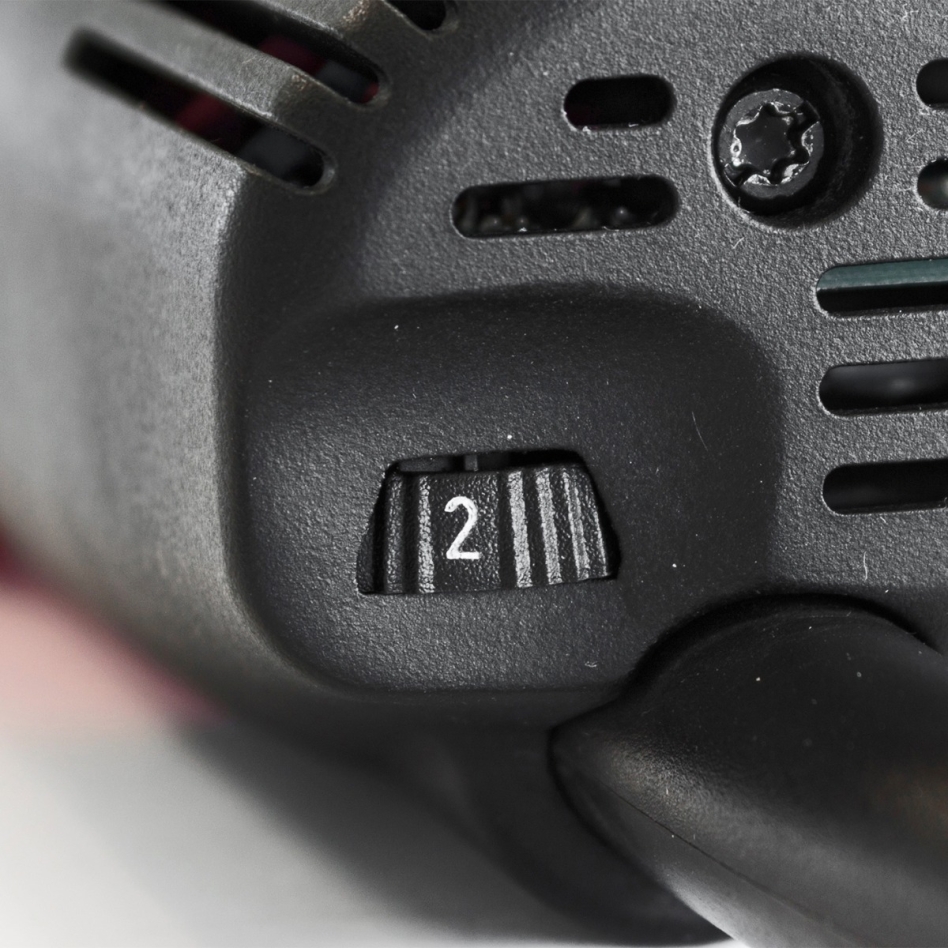

- Duo-In: The speed can be adjusted steplessly for any application manually or via the portal interface. Additional status indicator LED.
- With the Rapidfix cable, it can be installed in the gantry.
- The FM 1000 PV-ER has a noise level of only 71 dB (A) and is therefore very quiet.
- The speed can be adjusted steplessly for a very wide range of applications. Furthermore, the digital electronics are equipped with soft start, constant speed under load, speed reduction at standstill, and overload protection.
- With the FM 1000 PV-ER, MAFELL has developed a new milling motor bearing the label “Made in Germany”. The high quality standard and well-thought-out details make the MAFELL milling motor the best partner within its power class.
- The labyrinth seal of the FM 1000 PV-ER permanently protects the spindle and bearing against small particles, dust, and chips.
Applications
- Model making, mold making, advertising technology, engraving, jewelry, electrical engineering, stonework
- Gantry milling machines, cutting tables, grinding devices, flexible shaft
- Materials such as: wood, metal, plastics, foam, Styrofoam, stone
Technical data
- Dimensions (L x W x H) 254 x 79 x 73 mm
- Sound pressure level db (A) 71
- Collet / chuck 43 / 8 mm
- Power input 1000 W
- No-load speed 4,000 – 25,000 1/min
- PV connection M8 / 4-pin.
- Voltage supply in PV operation 8 - 56 V
- External control 0 - 10 V
- Weight 1.65 kg
Standard included
- 1 collet ER 16, 8 mm
- 1 Cable gland ER 16M
- 1 Fork wrench ER 16M
- 1 Connection cable 0.75 + 4 m
- In box
