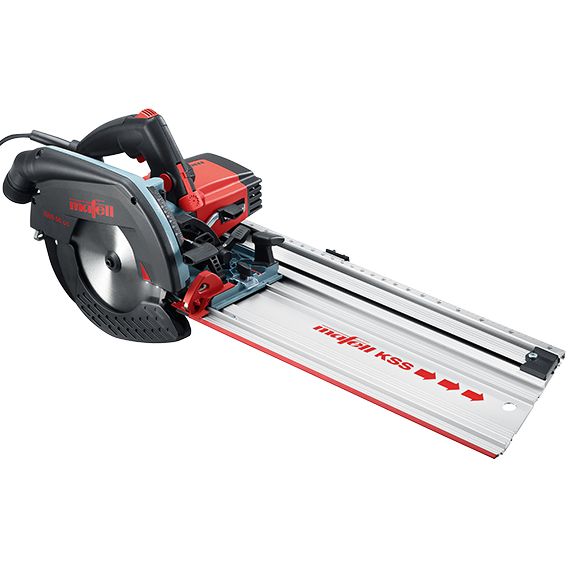

Mafell 918902 KSS 50 CC Crosscut Saw System 58 mm in Transport Case
Now a total of 5 years warranty on Mafell KSS50 Machines(*)
(*) Now a total of 5 years warranty on machines after registration of your machine, via the enclosed warranty form.
Special Features
- The KSS 50 crosscut saw combines ease of use with the highest precision for cutting depths up to 58 mm.
- Lightweight and with an excellent motor: Your ideal partner for the construction site.
- With a single button, the saw blade is locked and the machine is switched on.
- The saw blade can then be changed quickly and safely using the hex key located on the machine.
- The chip guidance of the new machines is designed in such a way and optimized so that the extraction duct cannot clog.
- An important advantage, for example when making plunge cuts along the grain.
- Bright LED lights provide clear and wide illumination of the cutting line.
- The CUprex HIGH-PERFORMANCE MOTOR stands for concentrated power and high torque.
- As a team or independently: the new crosscut saws can also be used without a crosscut rail.
- The saw then offers the same functions and benefits as the new K 55 cc.
- The cutting depth can be set quickly, precisely, and reliably using a clearly legible scale.
- The saw has separate scales for sawing with or without a rail.
- With a single press of a button, the machine can be detached from the rail and used with all the capabilities of the KSS 50.
- Thanks to the unique swivel system, a cutting depth of up to 42 mm can still be achieved at a miter angle of 0° to 45° (from the guide rail).
- With a polyethylene retraction cord, the machine is automatically retracted to the starting position after each cut. Ready for the next cut.
Technical data
- Cutting depth 0-58 mm
- Cutting depth at 45° with guide rail 0-42 mm
- Cutting depth at 45° without guide rail 0-48 mm
- Cutting depth at 90° with guide rail 0-52 mm
- Cutting depth at 90° without guide rail 0-58 mm
- Miter 0-45°
- Speed 5700 rpm
- Power 1300 Watt
- Weight 5.4 kg
- Motor 230 Volt/ 50Hz
- Cutting length 408 mm
- Cutting angle range -60 to + 60 degrees.
Supplied as standard
- 1 Saw blade HM 168 x 1.8 x 1.2 x 20 mm, Z 32, WZ
- 1 Hexagon socket wrench 5 mm
- 1 Connection cable 4 m
- 1 Cross-cutting ruler 400
- In transport case
