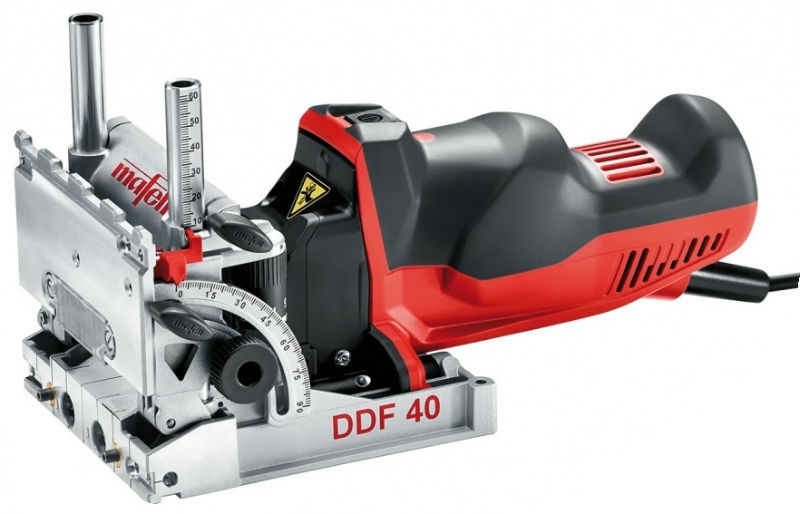

Mafell 918601 DDF40 Duo Dowel Machine - MidiMAX in T-Max
Now a total of 5 years warranty on Mafell Machines(*)
(*) Now a total of 5 years warranty on machines after registration of your machine, via the enclosed warranty form.
Features Duo Dowel Machine DDF40 - MidiMAX
- Quickly deployable
- Precision stop system
- Economical joints
- The Duo Dowel Machine DDF40 is a unique and mobile doweling device and an absolute world first from MAFELL.
- Furthermore, the DDF40 System works faster, more accurately, and more economically than any other system.
Application
- Holes rows
- Drilling fittings
- Ideal for cabinetmaking, staircase construction in the workshop or on location
- Materials such as: solid wood, panel materials
- Various connections from 3 - 12 mm
Technical data DDF40
- Drilling depth 0 - 40 mm
- Drilling distance 32 mm
- Saw spindle Ø 8 mm
- Saw blade Ø max. 12.2 mm
- Saw spindle Ø min. 3 mm
- Miter range 0 - 90 °
- No-load speed 8000 1/min
- Power consumption 900 W
- Extraction connection Ø 29 mm
- Weight 2.8 kg
- Dimensions (W x L x H) 145 x 300 x 164 mm
- Universal motor 230 V / 50 Hz
Standard accessories included
- 1 multi-purpose stop ZA
- 1 stop pin set ZAG
- 1 extraction nozzle
- 1 position indicator PAZ
- 2 Anti-slip mats (265 x 175 mm); Order no. 095063
- 1 Glue bottle 250 ml (empty); Order no. 095059
- 1 Hexagon screwdriver with handle; Order no. 093282
- 1 Connection cable 4 m; Order no. 077015
- 2 dowel drills-HW Ø 8 mm
- 1 unit round wooden dowel 8 x 30 mm, 200 pieces
- T-Max case
