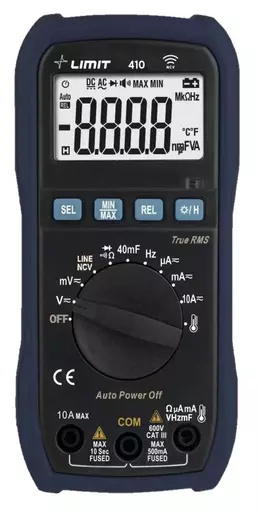

Limit 289600009 DM410 Multimeter
The LIMIT410 digital multimeter from LIMIT is a versatile and reliable measuring instrument. It is an indispensable aid for electronics and electrical professionals in their daily measurements.
Special features
- Measures AC/DC current, DC/AC voltage, resistance, capacitance, frequency, and temperature
- Range mode AUTO - automatically selects the correct measurement range for the parameter being measured, such as voltage, current, or resistance
- CAT III 600V EN 61010-1
- Live wire detection (detects current-carrying wires)
- NCV (Non-Contact Voltage) detects the presence of voltage without physically touching the wires or components
- TRUE RMS can accurately measure both sinusoidal and non-sinusoidal AC voltages and currents
- Backlight
- Diode test
- Continuity test with buzzer
- Hold function
- Max function
- Low indicator battery capacity
- Automatic shutdown
Technical data
- Display: 4000
- Safety class: CAT III 600 V
- True-RMS: yes
- Range mode: yes
- NCV (Non-Contact Voltage): yes
- Continuity test: yes
- Diode test: yes
- DC current measuring range: 400 µA - 10 A / 400 mA - 0.1 mA / 4 A – 0.001 A / 10 A – 0.01 A
- DC current accuracy: 400 µA – 400 mA ±(0.8% +1) / 4 A – 10 A ±(1% +10)
- AC current measuring range: 400 µA – 10 A
- AC current resolution: 400 µA – 0.1 µA / 4000 µA – 1 µA / 40 mA – 0.01 mA / 400 mA – 0.1 mA / 4 A – 0.001 A / 10 A – 0.01 A
- AC current accuracy: 400 µA – 400 mA ±(1% +3) / 4 A – 10 A ±(1% +10)
- DC voltage measurement range: 40 mV – 600 V
- DC voltage resolution: 40 mV – 0.01 mV / 400 mV – 0.1 mV / 4 V – 0.001 V / 40 V – 0.01 V / 400 V – 0.1 V / 600 V – 1 V
- DC voltage accuracy: 40 mV ±(0.5% +5) / 400 mV – 400 V ±(0.5% +1) / 600 V ±(0.8% +2)
- AC voltage measurement range: 40 mV – 600 V
- AC voltage resolution: 40 mV – 0.01 mV / 400 mV – 0.1 mV / 4 V – 0.001 V / 40 V – 0.01 V / 400 V – 0.1 V / 600 V – 1 V
- AC voltage accuracy: 40 mV ±(1% +10) / 400 mV – 400 V ±(0.8% +3) / 600 V ±(1.2% +3)
- Resistance measuring range: 400 Ω – 40 MΩ
- Resistance resolution: 400 Ω – 0.1 Ω / 4 kΩ – 1 Ω / 40 kΩ – 0.01 kΩ / 400 kΩ – 0.1 kΩ / 4 MΩ – 0.001 MΩ / 40 MΩ – 0.01 MΩ
- Resistance accuracy: 400 Ω ±(0.8% +3) / 4 kΩ – 4 MΩ ±(0.8% +1) / 40 M² ±(1% +2)
- Temperature measurement range: –20 °C to +750 °C
- Temperature resolution: 1 °C
- Temperature accuracy: –20 °C – 0 °C ±(1% +4 °C) / 0 °C – 400 °C ±(2% +3 °C) / 400 °C – 750 °C ±(3% +3 °C)
- Capacity measurement range: 40 nF – 40 mF
- Capacity resolution: 40 nF – 10 pF / 400 nF – 100 pF – 100 nF / 4 mF – 1–10 µF
- Capacity accuracy: 40 nF – 400 µF ±(4% +15) / 4 mF – 40 mF ±(5% +25)
- Measurement range frequency: 4 Hz – 10 MHz
- Frequency resolution: 0.001 Hz
- Frequency accuracy: ±(0.1% +2)
- Length: 147 mm
- Width: 74 mm
- Height: 46 mm
- Weight: 0.23 kg
Scope of delivery
- Test leads or measuring cables
- Battery 1.5V (AAA) x2
- Manual
