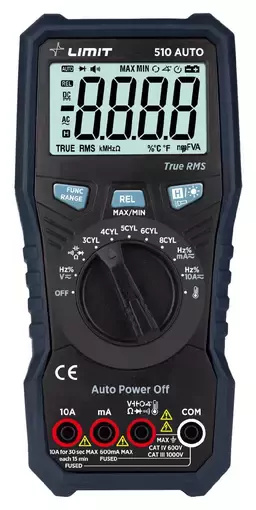

Limit 289450009 DM510 AUTO Multimeter
The LIMIT DM510 AUTO digital multimeter from LIMIT is the ultimate solution for all your measurement needs. Perfectly suited for cars, boats, and motor vehicles, this multimeter is an indispensable tool for every mechanic.
Special features
- Measures DC/AC current, DC/AC voltage, resistance, dwell angle and tachometer, continuity, capacitance, frequency, °C/°F temperature
- Large illuminated LCD display with 25 mm digits for easy reading in dark environments
- True RMS for both voltage and current when measuring non-linear signals
- CAT III 1000V / CAT IV 600V EN 61010-1
- Rotating function knob for manual setting
- Diode test
- Continuity test with buzzer
- Duty cycle measurement
- Built-in flashlight
- Hold function - data storage
- Min, Max and relative measurement
- Low battery warning
- Automatic shutdown
- Fused up to max 10 A
Technical data
- Display: 6000 counts
- Safety class: CAT III 1000 V / CAT IV 600 V
- True-RMS: yes
- Continuity test: yes
- Diode test: yes
- DC current measurement range: µA – A (60 mA – 10 A)
- DC current resolution: 0.01 mA
- DC current accuracy: ±(0.8% +1) to ±(1% +10)
- AC current measurement range: µA – A (60 mA – 10 A)
- AC current resolution: 0.01 mA
- AC current accuracy: ±(1.5% +5) to ±(1% +10)
- DC voltage measurement range: 600 – 1000 V
- DC voltage resolution: 0.1 mV
- DC voltage accuracy: ±(0.5% +3) to ±(0.8% +3)
- AC voltage measurement range: 6 – 750 V
- AC voltage resolution: 1 mV
- AC voltage accuracy: ±(0.8% +3) to ±(1.0% +5)
- Resistance measurement range: 600 Ω – 60 MΩ
- Resistance resolution: 0.1 Ω
- Resistance accuracy: ±(0.8% +3) to ±(1.5% +10)
- Temperature measurement range: –20 °C to +1000 °C
- Temperature resolution: 1 °C
- Temperature accuracy: ±(2% +3) to ±(3% +3)
- Capacity measurement range: 10 nF – 100 mF
- Capacity resolution: 0.01 nF
- Capacity accuracy: ±(3% +5) to ±(10% +5)
- Measurement range: 10 Hz – 600 kHz
- Frequency resolution: 0.001 Hz
- Frequency accuracy: ±(0.1% +2)
- Dwell measurement range: 3 – 8 cycles
- Dwell resolution/accuracy: 0.1° ±(1.2% +2)
- Tachometer measurement range: 3 – 8 cycles
- Tachometer resolution/accuracy: 10 rpm ±(1.2% +2)
- Length: 187 mm
- Width: 88 mm
- Height: 54 mm
- Weight: 0.36 kg
Scope of delivery
- Test leads or measuring cables
- Rubber cover
- Fold-out table support
- 2 AA batteries
- Manual
