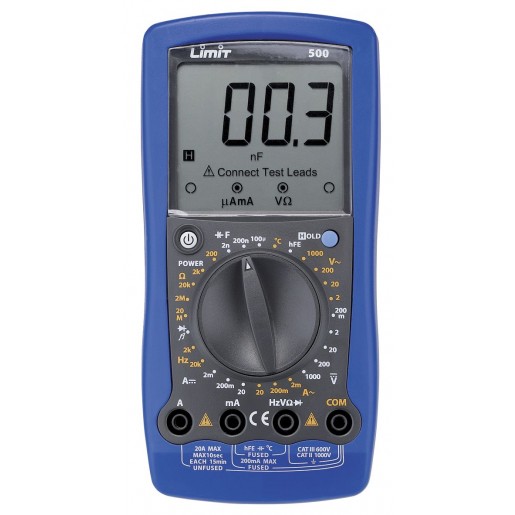

Limit LI500 Digital Multimeter
Digital multimeter with rotary function knob for manual setting.
For measuring
- DC/AC voltage
- DC current
- Resistance
- Frequency
- Capacity temperature (depending on the type)
- Also diode test, continuity test with buzzer, data storage, and low battery warning.
Technical Data
- AC Current ACA 2-200mA-10A
- AC Current: resolution/accuracy mA 1µA +/-1% +3
- AC Voltage ACV 2-20-200-1000V
- AC Voltage: resolution/accuracy mV 1mV +/-0.8% +3
- DC Current DCA 2-200mA-10A
- DC Current: resolution/accuracy µA 0.01 µA +/-0.8% +1
- DC Voltage DCV 200 mV-2-20-200-1000 V
- DC Voltage: resolution/accuracy mV 0.1 mV +/-0.5% +1
- Battery V 1x9V (6F22)
- Capacity F 2-200 nF-100µF
- Capacity: resolution/accuracy pF 1pF +/-4% +3
- Frequency Hz 2-20KHz
- Frequency: resolution/accuracy Hz 1 Hz +/-1.5% +5
- Maximum display 1999
- Temperature °C -40 +1000
- Temperature: resolution/accuracy °C 1°C +/-1% +3
- Safety insulation CATII1000V/CATIII600V IEC 61010
- Resistance Ohm 200 Ohm-2-20-200 K Ohm-2-20 M Ohm
- Resistance: resolution/accuracy Ohm 0.1 Ohm / +/-0.8% +1
- Weight 0.38 kg
Standard included
- Supplied complete with test leads, temperature probe, and manual.
- Without batteries.
- With holster and support flap.
