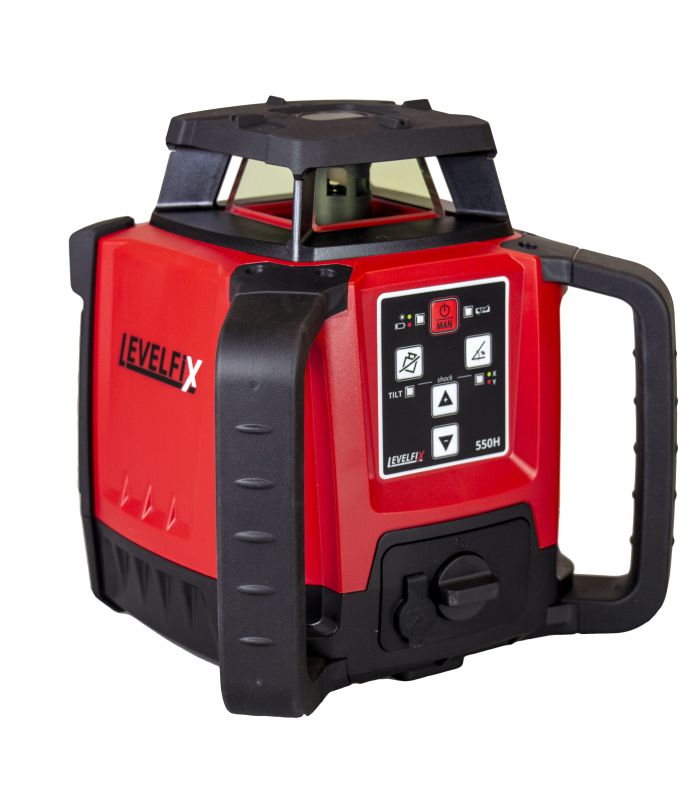

Levelfix 550H Horizontal Construction Laser Self-Leveling
Features
- Horizontal construction laser with red beam
- Horizontal construction laser
- 600 meter working range
- Accuracy 4.8mm/100mtr.
- Runtime 55 hours on 1 charge
- IP 66 construction (waterproof)
- Equipped with manual slope and TILT function
- Reliable laser for construction: The Levelfix 550H professional construction laser is the partner for all setting-out jobs. Whether it involves pouring concrete, leveling formwork, setting out, or checking heights, the LEVELFIX 550H makes it easy for you. The laser is easy to operate and designed for ease of daily use.
- All necessary functions in 1 laser: The Levelfix 550H contains all the functions needed for standard construction work. The laser features a tilt function that ensures you always work with the correct measurement; when the tilt function is enabled, the laser will continuously monitor the height and will lock if the height changes due to, for example, heavy shocks or unwanted movement of the laser. The manual slope function allows you to quickly and easily set a slope on either the x- or y-axis.
- Excellent specifications: The laser features an IP66 construction, protecting it against dust and moisture. The laser has an accuracy of 4.8mm/100mtr and is equipped with a removable Li-ion battery pack. The large working range of 600 meters (with receiver) and the long operating time of 55 hours make the laser suitable for the demanding user. Complete with digital receiver: The Levelfix 550H comes complete with the robust digital DLD100R receiver. The DLD100R features a large receiving window, an illuminated and clear display, and is designed for ease of daily use. This unique receiver indicates the distance to the 0 line in millimeters. The receiver has an adjustable 0 position, making height transfer child's play. The receiver has a robust, shock-resistant housing and is waterproof (IP66).
Technical specifications
- Accuracy 5mm/100mtr
- Range (with receiver) 600 meters
- Functions Horizontal Leveling range 5 °
- Laser class red 2 / visible
- Rotation functions Rotate 600 rpm
- Protection IP 66
- Slope Double
- Tilt function Yes
- Operating time 55 hours with battery pack
- Rechargeable Yes
- Brand LEVELFIX
Standard included
- Digital mm receiver
- Li-ion Battery
- Charger
- In case
