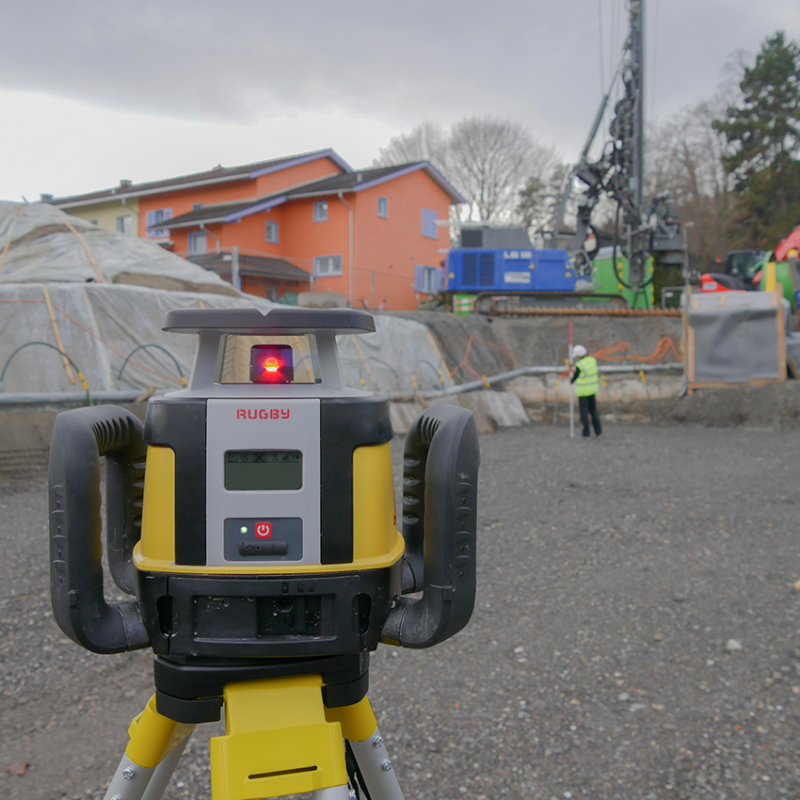

Leica Rugby CLH Slope Laser CLX300 semi-auto single slope 6012277
HORIZONTAL & SINGLE GRADE WITH DIAL-IN
- By adding +-8% semi-automatic slope functionality in a single axis with a dial-in option, the upgrade delivers solid performance in single-slope applications
Special Features
- The simplicity of the Leica Rugby CLH enables effortless use of the laser system's capabilities
- . It saves time by simplifying applications and making you more productive. The robust
- design ensures measurement stability and accuracy for your daily tasks. The handle is attached to the base with special caps that have high rigidity and provide a strong attachment to the base. The upgrade options ensure maximum performance in all leveling applications. Horizontal and Slope: With manual slope function, slope catch, and slope lock, this upgrade makes slope applications, such as ramps and driveways, a simple and efficient task. Applications:
- Site preparation: Automated machine control systems for slopes and leveling work. Slope control: Check slopes easily and reliably. Parking lots: Single and double ramps ensure proper drainage of parking lots. Parking islands: Configure parking lot configurations according to site requirements. Slopes for driveways and ramps: Recessed or catch ramp in single or double axis.
- Form verticality: Vertical alignment of shapes using the slope alignment function.
- Walls: setting out Align two points and mark the position of the wall using the slope catch function.
- Concrete leveling: Check the concrete level during pouring.
- Formwork leveling Concrete shapes: setting and leveling.
- Fitting board: Align the construction axes with the slope catch function.
- Setting out plasterboards
- Setting out: of plasterboards Align two points and mark the position of plasterboards using the slope catch function.
- Ceiling level: Check and level the suspended ceiling.
Technical data
- Slope capacity* (X/Y axes) 8%
- Self-leveling accuracy** ± 1.5 mm at 30 m
- Self-leveling range ± 6°
- Working range with Combo, RE 140/160 1350 m diameter
- Distance range 600 m diameter
- Laser class 1
- Environmental standard: IP68/MIL-STD-810G
- Operating temperature: -20 °C to +50 °C
- Storage temperature -40 °C to +70 °C
- Rotation speed 10, 15, 20 RPS
- Batteries (Li-Ion) Li-Ion
- Battery life** 50 hours
- Battery charging 5 hours (full charge) 1 hour fast charge = 8 hours in operation 5 hours (full charge)
- Dimensions (H × W × D) 230 mm x 296 mm x 212 mm
- Weight with batteries 3.8 kg / 8.3 lbs
Scope of delivery
- Rugby CLH Basic laser level
- Leica Combo Digital RF
- Li-ion battery pack
- A100 Li-ion battery charger
- Case
- Manual
