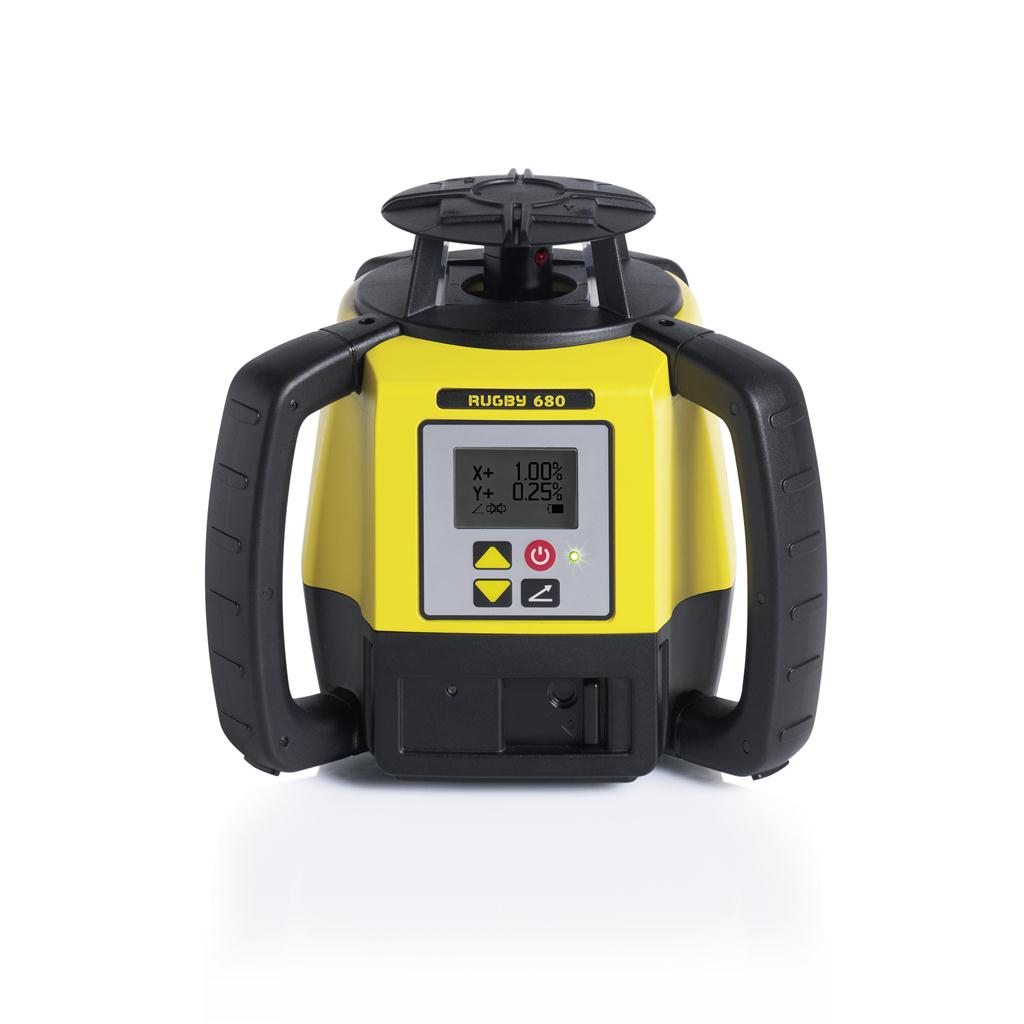

Leica Rugby 680 Semi-automatic Slope Laser + Rod Eye 120 6011159
The Leica Rugby 680 semi-automatic slope laser delivers ease of use for construction applications. The Rugby 680 construction laser is designed for contractors who primarily perform flat work but occasionally need to create single or double slopes, and is user-friendly and effective in all leveling and beveling tasks.
Special Features
- Easily create slopes: Easily perform leveling and slope applications with the semi-automatic Leica Rugby 680 double and single slope laser. The user-friendly interface, four-button menu, and digital screen allow for quick and convenient slope setting for improved productivity and efficiency on the construction site. Accurate performance throughout the day: Eliminate costly errors and downtime caused by temperature changes on the construction site. The Smart Slope feature of the Rugby 680 and 670 continuously monitors temperature changes. This unique feature ensures accuracy and solid laser performance all day long. Best value for money: Great value for money with the PROTECT service offer from Leica Geosystems. It includes a lifetime manufacturer's warranty and the three-year No Cost* period.
Comes with the long-lasting rechargeable Li-ion battery, which operates for up to 40 hours on a full charge.
IP 67 protection standard guarantees reliable performance, even under the roughest construction site conditions.
* Available free of charge through online registration within eight weeks of the purchase date
Technical specifications
- Accuracy 0.5 mm / 10 meters
- Working range Ø (receiver) 1200 meters*
- Range (receiver) 600 meters*
- Visibility range (indoor) 15 meters*
- Self-leveling Yes
- Leveling range ± 5°
- Mechanism Servomotors
- Slope 8% in X-axis and 8% in Y-axis
- Slope mechanism Semi-Automatic
- Input slope 10%
- Total slope 12% (total of the two axes)
- Plumb line No
- Rotation speed 600 rpm
- Laser diode Class 2, 635nm, Red
- Protection IP67
- Operating time 40 hours
- Power supply Li-Ion battery
- Rechargeable Yes
- Mains connection Yes
- Operating temperature -20°C to +50°C
- Weight 2.6 kg
- Connection 5/8"
- Dimensions LxWxH 212 x 239 x 192 mm
Scope of delivery
- Leica Rugby 680 Slope laser
- Leica Rod Eye 120 Receiver
- Lithium Ion battery
- Charger
- Case
